ASTM B166 UNS N06601 Inconel 601 DIN 2.4851 High Temp Alloys

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

ASTM B166 UNS N06601 Inconel 601 DIN 2.4851 High Temp Alloys

ASTM B166 UNS N06601 Inconel 601 DIN 2.4851 High Temp Alloys
ASTM B166 UNS N06601 Inconel 601 DIN 2.4851 High Temp Alloys
video play

Large Image :  ASTM B166 UNS N06601 Inconel 601 DIN 2.4851 High Temp Alloys Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO ROHS
Model Number: Inconel601
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Price: negotiable
Packaging Details: IN Wooden box
Delivery Time: 7-20days after your deposit received
Payment Terms: , L/C, T/T
Supply Ability: 20000T/Year
Detailed Product Description
Standard: ASTMB166 Surface: Bright&Block
Size: 5mm~800mm Power Or Not: Not
Type: NCF 601 Alloy Craft: Hot Forging& Cold Drawing
Shape: Rod/Bar DIN: 2.4851
UNS: N06601 Ni%: Min58
High Light:

DIN 2.4851 High Temp Alloys

,

Inconel 601 High Temp Alloys

,

UNS N06601 Square Bar

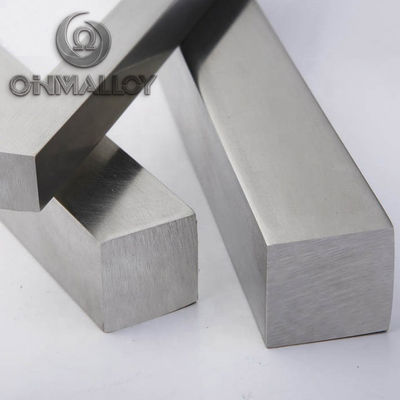

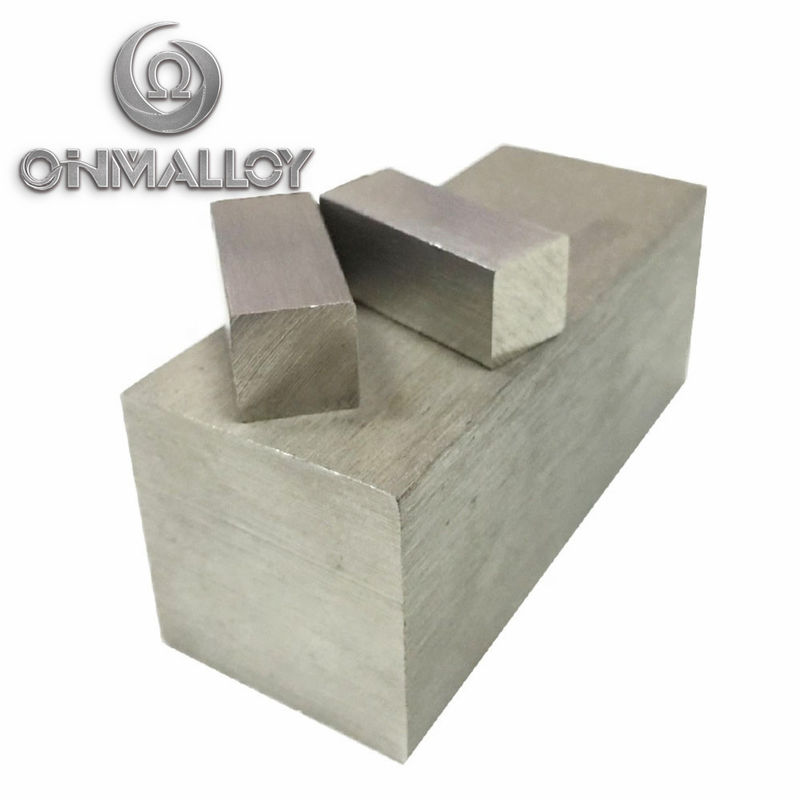

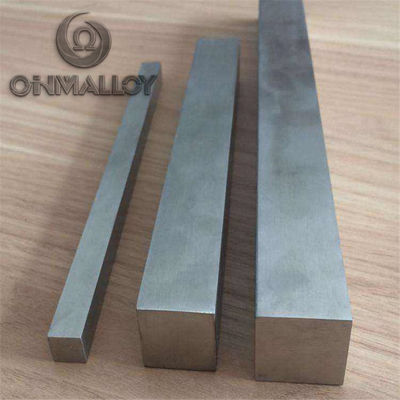

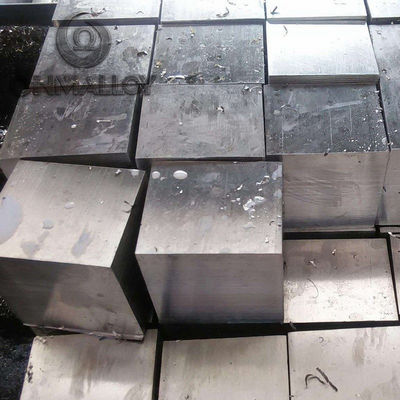

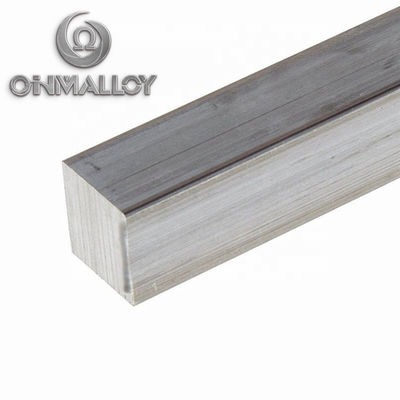

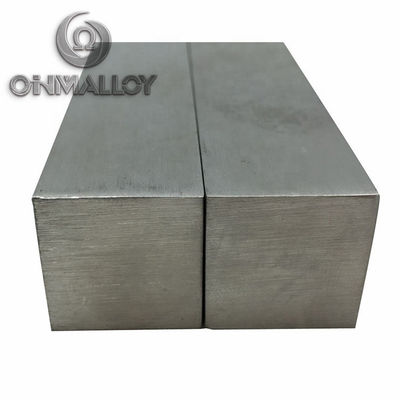

Inconel 601 60mmx60mmx30mm DIN 2.4851 Square Bar/Rod Polish Surface UNS N06601

Product Description

Inconel 600 incone l600 incone l600 Shape Wire



Inconel601



1.Description

It is a heat-resistant and oxidation-resistant nickel-based alloy containing Cr and Al. It has high high-temperature strength, and has excellent oxidation resistance, carburization resistance, and sulphur resistance. Especially, it has excellent resistance to scale peeling under severe temperature changes and repeated oxidation. Therefore, it is widely used in various heat treatment furnace components, diesel automobile glow plug parts, etc.

Chemical Content (%)

Alloy % Ni Cr Cu C Fe Al Ti Mn Si Cu P S

Inconel

601

Min. 58 21   0   1
Max. 63 25 1 0.1 5 1.7 0.4 0.5 0.5 0.5 0.015 0.015

Mechanical Properties

Aolly state Tensile strength
Rm N/mm²
Yield strength
R P 0.2N/mm²
Elongation
A 5 %
Brinell hardness
HB
Density
g/cm³

Melting Point

°C

601 550 195 30 ≤220 8.42 1360-1411



2.Features

Excellent corrosion resistanceat elevated and ambient temperatures,excellent resistance of the inorganic acid corrosion performance,excellent resistance of pitting and crevice corrosion,good machining and welding.



3.Usage

It is widely used in following field:

1)Muffle furnaces,

2)Barrels and other heating furnace components,

3)Industrial heat treatment furnace components,

4)Special glass melting furnace components,

5)Automotive glow plug components,

6)Automotive exhaust gas sensor cover materials, etc.



4:Size for supplier

Round Wire:0.03mm~10mm

Flat Wire(Ribbon):thickness 0.1mm~1.0mm,width 0.5mm~5.0mm
Strip:thickness 0.2mm~3.0mm,width 0.5mm~200mm

Other sizes are available upon your request.



5.Grade Contrast

ASTM(American Society for Testing and Materials):UNS N06601

DIN(Deutsche Industrie Normen):W.Nr.2.4851

BS(British Standards):NFC 601



6.Products and services

1). Pass: ISO9001 certification, and SO14001cetification;

2). Fine after-sale services;

3). Small order accepted;

4). Fast delivery.



OHMALLOY Inconel Rod .jpg

Exhibition

_06

Photo of Products




Nickel Alloy Rod 2.jpgPacakge of ROd 1.jpg



Customer Photos

_07

Testing Equirement



Bright Bar incone l600 incone l600 Surface Bright Annealed



Nickel Alloy incone l600 incone l600 Brand Name Ohmalloy

005 (2).png

Packaging & Shipping

packing for the Bar .jpg

Inconel 600 incone l600 incone l600 Material Raw Material



Bright Bar incone l600 incone l600 Certificate ISO 9001:2008;Rohs

Bright Bar incone l600 incone l600 Certificate ISO 9001:2008;Rohs



Our Services

1, We can provide a free sample for testing.

2,Customized lable, packing, OEM service

3,Mill test certificate will be provided after production, If it is necessary.

4,Good packing methods to keep goods no damage during delivery

5,We are cooperation with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.

FAQ



How can I contact with your company?

Our sales team is ready to serve you via Email, Telephone , Fax or Skype You can reach us by below contact information:

Skype:matt52011
Tel:+86-21-66796338
Fax:+86-21-66796339

What is your working time?
Monday-Friday : 8.0am-6.0pm (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and our Chinese New Year holiday . For detail, please see our update holiday notice. During these period, if you have a demand, Please send me an email.

Do you provide free samples?
Yes, we can provide a free sample for testing, If we have sample in stock, The quantity based on the material type, The buyer should bear all the shipping costs.
What is your payment terms?
We accept 100% TT ( Telegraphic Transfer) in advance for small orders( value under USD 2000). For some big orders, we can accept 30% deposit, 70% balance before shipment. For very small orders , we can accept payment. We are doing the best to match your demand.
