| Name: | Sealing And Cut Machine Heating Resistance Nickel Alloy 0Cr20Ni80 Strip | Material: | 0Cr20Ni80 |
|---|---|---|---|
| Size: | As Drawings(customized As Drawings) | Application: | Sealing And Cut Machine Heating Strip |
| Resistance: | Customized As Requirement | Warrenty: | 3 Years |
| High Light: | 0Cr20Ni80 Strip Stick,500V Nichrome Alloy Strip,0.2ohm Heating Strip |
||

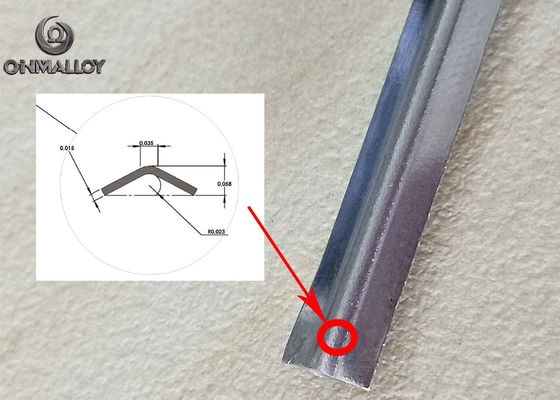

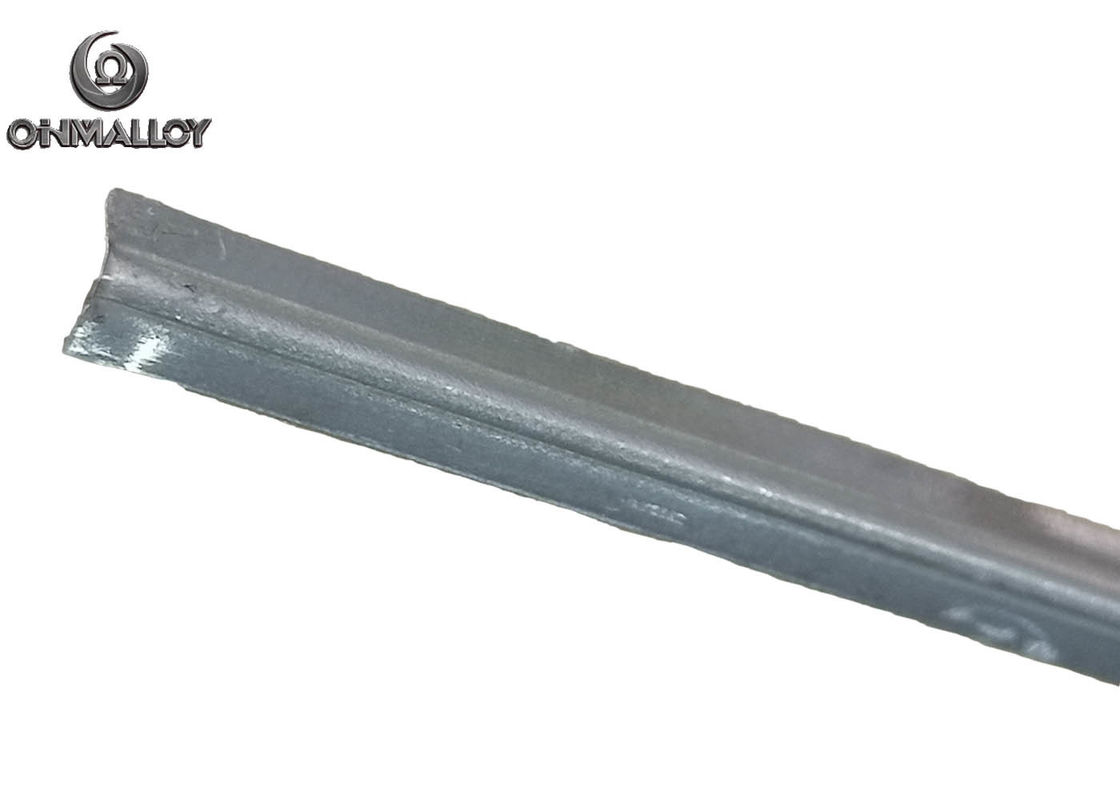

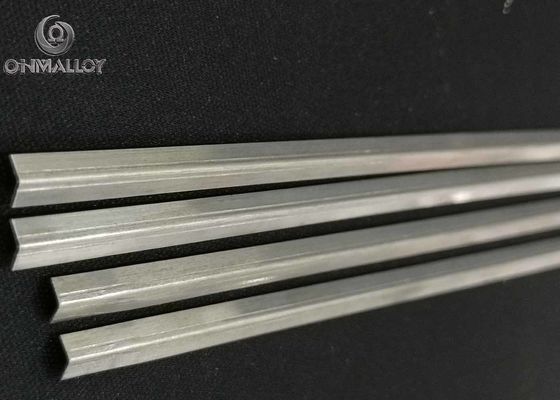

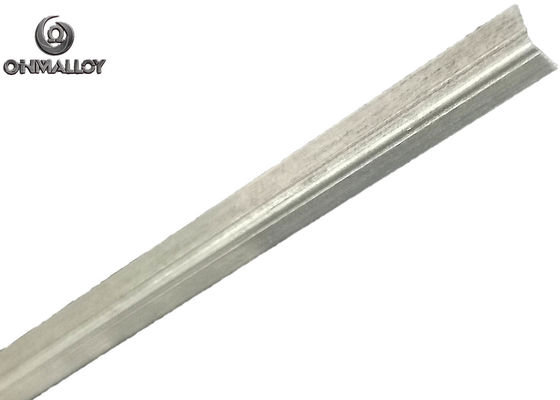

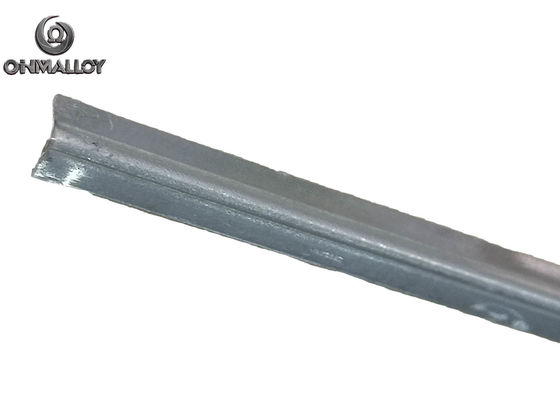

Sealing and Cut Machine Heating Resistance Nickel Alloy 0Cr20Ni80 Strip Stick
| Products Name | Sealing and Cut Machine Heating Resistance Nickel Alloy 0Cr20Ni80 Strip/Stick |
| Application | Sealing and Cut Machine Heating Strip/Stick |
| Material | 0Cr20Ni80 |
| Resistance | 0.2ohm(customized as requirements) |
| Length | 21.6CM(customized as requirements) |
| Working Temperature | Max 800℃ |
| Working Voltage | Max 500V |
| Service Time | Mini100H(at 1300℃) |
| Surface | Bright, Clean |
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
2. Physical Properties and Mechnical Properties
| Density (g/cm3) | 8.4 |
| Electrical resistivity at 20℃(ohmmm2/m) | 1.09 |
| Conductivity coefficient at 20℃ (WmK) | 15 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.46 |
| Melting point (℃) | 1400 |
| Max continuous operating temperature in air (℃) | 1200 |
| Magnetic properties | non-magnetic |
