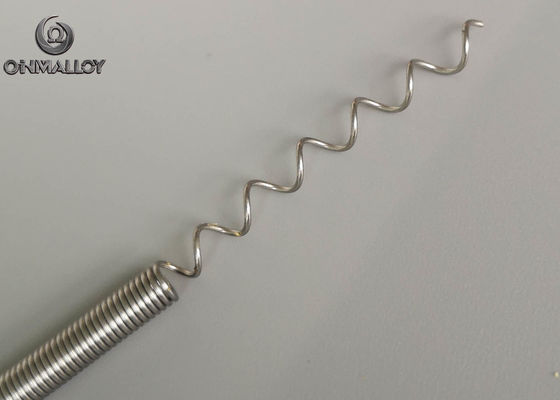

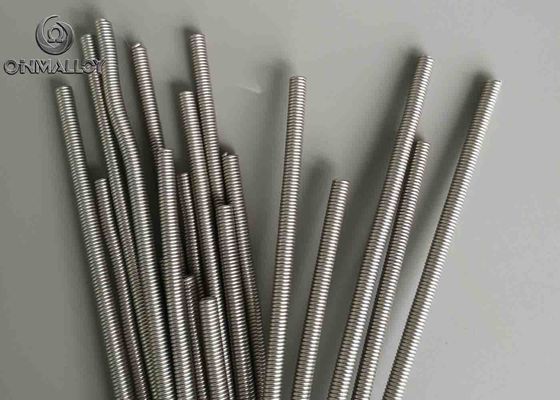

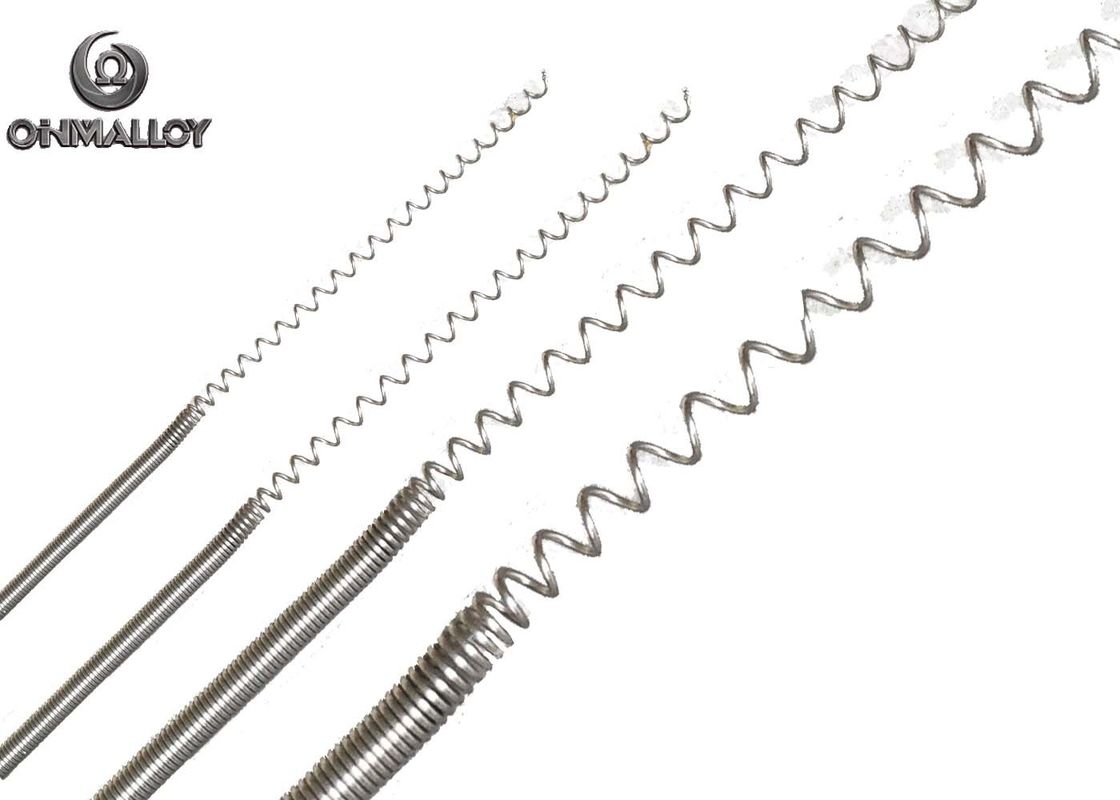

Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life

Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life
Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life

Large Image :  Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001：2015
Model Number: SP-255-spring
Payment & Shipping Terms:
Minimum Order Quantity: 50KG
Packaging Details: plywood pallet or plywood case
Delivery Time: 5-15 working days after payment confirmed
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 30000 KG per Month
Contact Now
Detailed Product Description
Name: Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire Supply State: Wire Or Spring（as Customer Requirements）

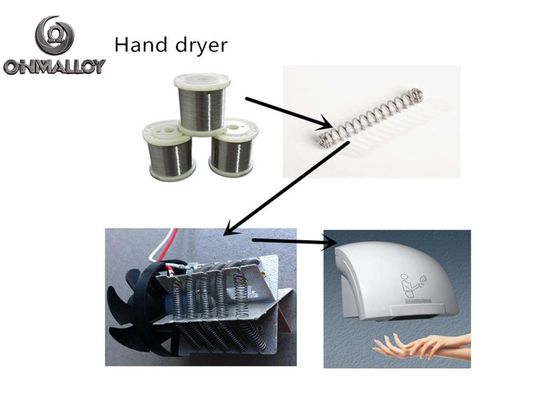

Application: Home Appliance Heating Spring Wire Surface: Bright/Oxidized/Pickled
Working Temperature: Max Up To 1000℃ Resistance: As Customer Requirements
MOQ: 20KG(Wire) 500pieces(spring)
Highlight:

FeCrAl Wire FeCrAl Alloy

,

0Cr25Al5 FeCrAl Alloy

,

0.9mm Heating Spring Wire

Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life



Item name Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life
Conductor Material 0Cr25Al5
Conductor Diameter 0.9mm+/-0.02
Condition Bright,half-hard/hard
Resistance value 2.23+-5% (2.12-2.34 )Ohm/m
Density 7.1g/cm3
Length/Kilo 221.5M/kg
Package Spool DIN 160,about 5kgs per spool
Standard GB/T 1234-12

Home Appliance Heating Spring Wire 0Cr25Al5 FeCrAl Wire 0.9mm Long Service Life 0

0Cr25Al5 Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 0.60 23.0~26.0 Max 0.60 4.5~6.5 Bal. -

Typical Physical properties

Density (g/cm3) 7.10
Electrical resistivity at 20℃(Ωmm2/m) 1.42
Conductivity coefficient at 20℃ (WmK) 13



Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 15





Specific heat capacity
Temperature 20℃
J/gK 0.46



Melting point (℃) 1500
Max continuous operating temperature in air (℃) 1250
Magnetic properties non-magnetic
