Mica Wrap Fiber Glass PWHT Thermocouple Type K Cable 650℃ 100M IEC ANSI Standard
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Mica Wrap Fiber Glass PWHT Thermocouple Type K Cable 650℃ 100M IEC ANSI StandardPWHT Thermocouple Type K Cable 650℃ 100M IEC ANSI Standard | Cable Type: | Type K |
|---|---|---|---|
| Insulation: | Mica + High Temperature Fiber Glass(650℃) | Conductor Size: | 0.5mm/0.6mm/0.71mm/0.81mm/1.0mm |
| Color: | ANSI(yellow, Red)/IEC(green, White) | Application: | PWHT Accessory Thermocouple Cable |
| Working Temperature: | 650℃(long Time) | Accuracy: | Class I(Class A) |
| Highlight: | 100M K Type Thermocouple Wire,650℃ Thermocouple Wire,PWHT Thermocouple Cable |
||

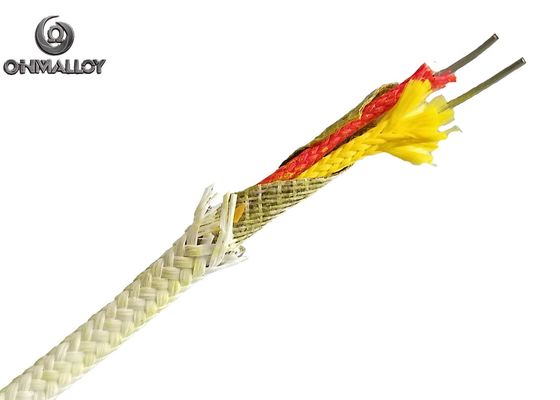

Mica Wrap Fiber Glass PWHT Thermocouple Type K Cable 650℃ 100M IEC ANSI Standard
| Cable Specification | ||
| Item Name | Mica Wrap Fiber Glass PWHT Thermocouple Type K Cable |  |
| Item Number | K-BH-MA-BH-0.6 | |
| Conductor Material | +Chromel -Alumel | |

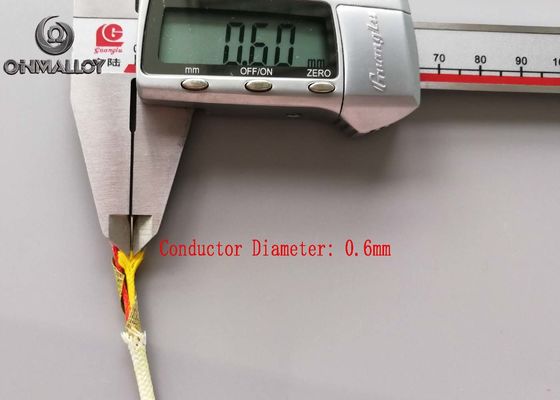

| Conductor Dia | 2*0.6mm( ±0.01mm) | |

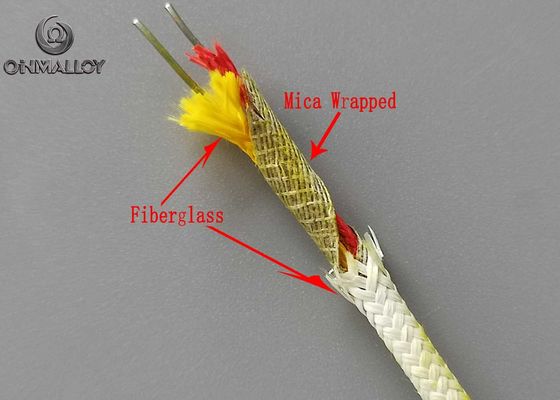

| Inner Insulation and Thickness |
High Temperature Fiberglass (long term: 600℃, short term: 700℃) Mica Wrapped(650℃) |
|
| Inner Insulation Diameter | 1.2mm(±0.2mm) | |
| Outer Jacket Material | High Temperature Fiberglass (long term: 600℃, short term: 700℃) | |

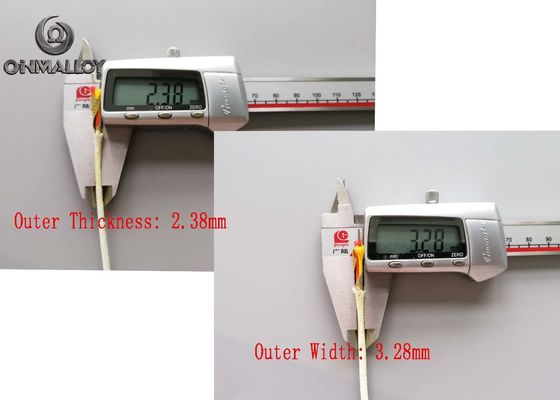

| Finished Diameter | 2.4mm*3.4mm(±0.2mm) | |
| Weight | 15.6KG/K | |
Conductor Material Inspection: Chromel Alumel Material Batch NO.: L858D98
| Chemical Composition | Standard | ||||||||
| Elements | Ni | Cr | Mn | Si | Al | Co | Other | IEC60584 | |
| Chromel | Bal. | 8.8-9.8 | / | ≤0.3 | / | ≤0.6 | 0.2 | ||
| Alumel | Bal. | / | ≤0.8 | ≤0.6 | 1.6-2.3 | / | 0.1 | ||
Insulation Material Inspection: Vitreous Silica Material Batch No.: V19D01
| SiO2 | Infiltrant content | Fiberglass Nominal Diameter | Max Working Temperature (long time) | Tex |
| 98% | 0.9% | 8μm | 800℃ | 160 |

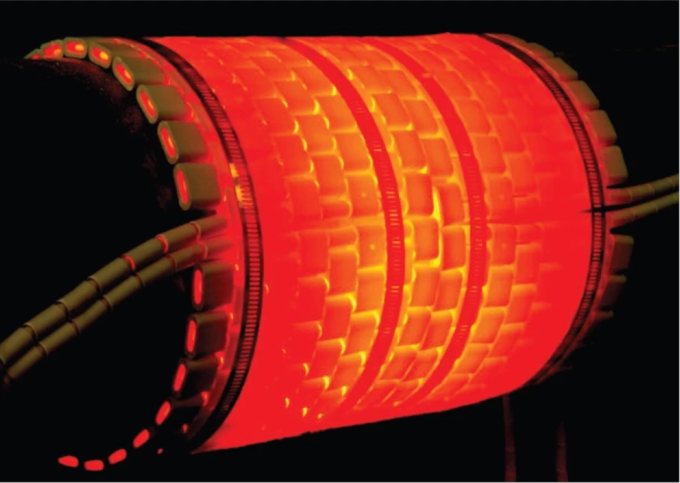

Mica Wrap Fiber Glass PWHT Thermocouple Type K Cable Application
