Copper Nickel Alloy Wire NC005 CuNi2 Wire Strip Low Temperature Heating Long Service Time
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Copper Nickel Alloy Wire NC005 CuNi2 Wire Strip Low Temperature Heating Long Service Time | Material: | CuNi2 |
|---|---|---|---|
| Resistivity: | 0.05(at 20℃ (Ωmm2/m)) | Temperature Factor Of Resistivity（20℃~600℃）X10-5/℃: | <120 |
| Usage: | Electric Blankets And Pillows | State: | Soft/Hard/1/2 Hard/ 1/4 Hard |
| Package: | Spool+waterproof Carton | ||
| Highlight: | CuNi2 Copper Based Alloys,NC005 Copper Based Alloys,Blankets Heating Copper Nickel Wire |
||
Copper Nickel Alloy Wire NC005 CuNi2 Wire Strip Low Temperature Heating Long Service Time
Common Name: (CuNi2,NC5,Cuprothal 5)
OhmAlloy 005 is a copper-nickel alloy (Cu2Ni98 alloy) with low resistivity for use at temperatures up to 200°C.
OhmAlloy 005 is typically used for low-temperature applications such as heating cables in electric blankets and pillows.
Normal composition%
| Nickel | 2 | Manganese | - |
| Copper | Bal. |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 90 | 220 | 25 |
Typical Physical properties
| Density (g/cm3) | 8.9 |
| Electrical resistivity at 20℃ (Ωmm2/m) | 0.05 |
| Temperature factor of resistivity(20℃~600℃)X10-5/℃ | <120 |
| Conductivity coefficient at 20℃ (WmK) | 130 |
| EMF vs Cu(μV/℃ )(0~100℃ ) | -12 |
| Coefficient of thermal expansion | |
| Temperature | Thermal Expansion x10-6/K |
| 20 ℃- 400℃ | 17.5 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.380 |
| Melting point (℃) | 1090 |
| Max continuous operating temperature in air (℃) | 200 |
| Magnetic properties | non-magnetic |
Corrosion resistance performance
| Alloys | Working In atmosphere at 20℃ | Working at max temperature 200℃ | |||||
|
Air and oxygen contain gases |
gases with Nitrogen |
gases with sulfur oxidability |
gases with sulfur reductibility |
carburization | |||
| OhmAlloy005 | good | bad | bad | bad | bad | good | |
Style of supply
| Alloys Name | Type | Dimension | ||

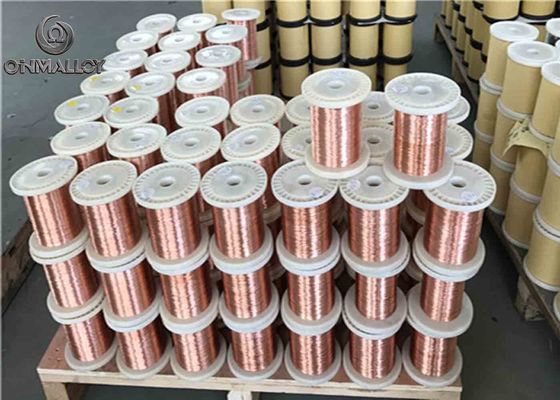

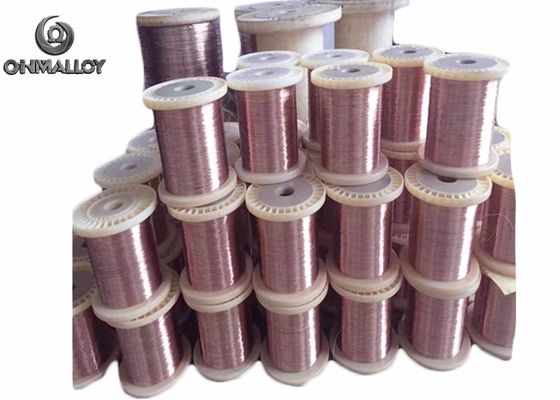

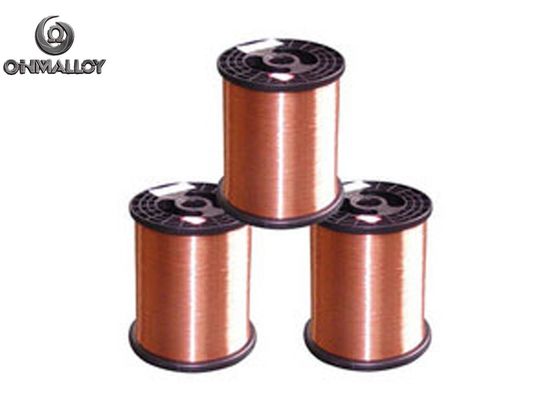

| OhmAlloy005W | Wire | D=0.06mm~8mm | ||
| OhmAlloy005R | Ribbon | W=0.4~40 | T=0.05~2.9mm | |

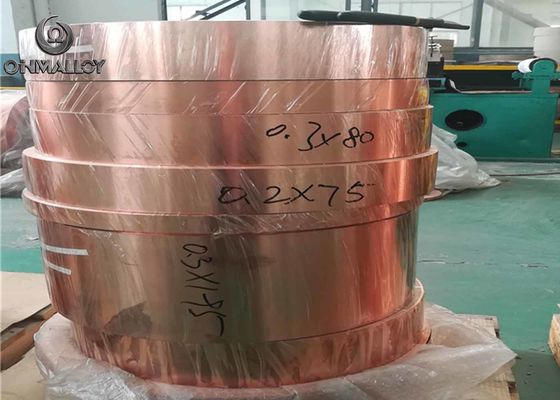

| OhmAlloy005S | Strip | W=8~200mm | T=0.1~3.0 | |
| OhmAlloy005F | Foil | W=6~120mm | T=0.005~0.1 | |
| OhmAlloy005B | Bar | Dia=8~100mm | L=50~1000 | |
CuNi1 Copper Nickel Alloy Wire Application
