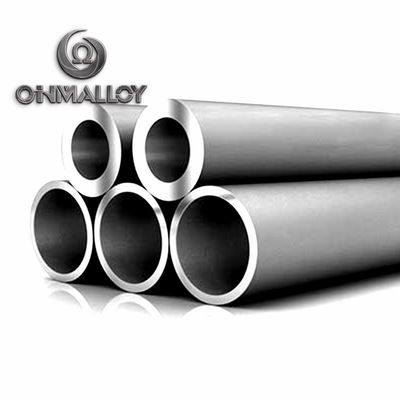

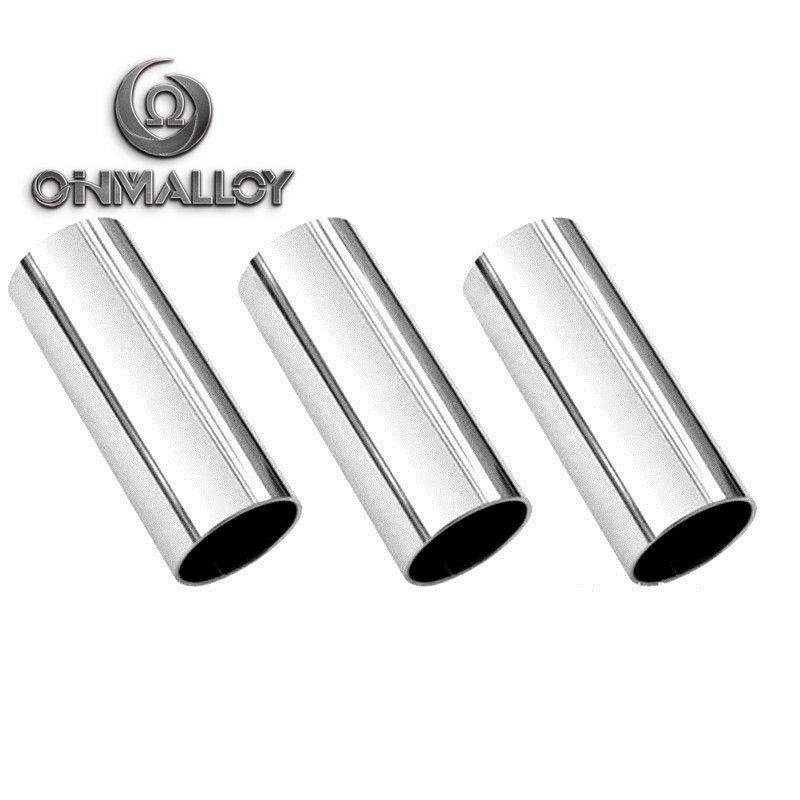

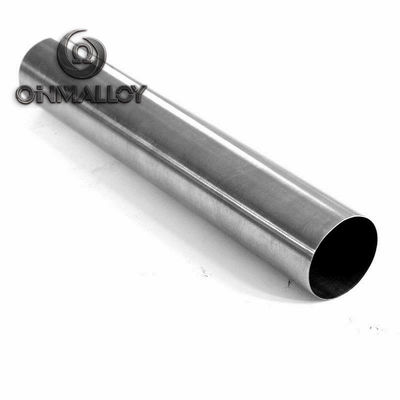

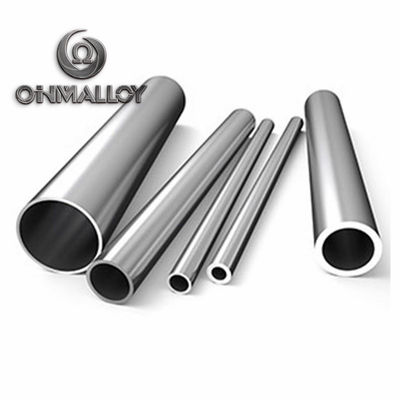

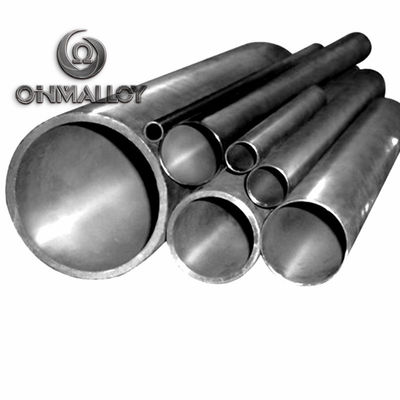

Russia 52H / Glass Sealing52 Vacodil 520 Pipe / Tube 10mmx1mm large in stock

Russia 52H / Glass Sealing52 Vacodil 520 Pipe / Tube 10mmx1mm large in stock
Russia 52H / Glass Sealing52 Vacodil 520 Pipe / Tube 10mmx1mm large in stock
video play

Large Image :  Russia 52H / Glass Sealing52 Vacodil 520 Pipe / Tube 10mmx1mm large in stock Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO ROHS
Model Number: Inconel601
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Price: negotiable
Packaging Details: IN Wooden box
Delivery Time: 7-20days after your deposit received
Payment Terms: , L/C, T/T
Supply Ability: 20000T/Year
Detailed Product Description
Standard: ASTMB166 Surface: Bright&Block
OD: 0.2~80mm Wall: 0.01~10mm
Length: 0.2~6000mm Craft: Cold Drawing
Shape: Tube Common Name: FeNi52
Application: Glass Sealing Ni%: 51.5~52.5

52H Glass Sealing52 Vacodil 520 Pipe 10mmx1mm large in stock

Product Description
The iron-nickel fixed expansion alloy is a series of fixed expansion alloys that can be matched with soft glass and ceramics with different expansion coefficients in a given temperature range by adjusting the nickel content. The expansion coefficient and Curie point increase with the increase of nickel content. This combination gold is a widely used sealing structure material in the electric vacuum industry


Chemical Composition

Grade C% P% S% Mn% Si% Cu% Cr% Mo% Ni% Co% Fe%
Alloy52 Max 0.05 Max 0.020 Max 0.020 Max 0.80 Max 0.30 / / / 51.5~52.5 / Bal.



Specifications

Grade Common Name Common Name
Alloy Vacodil520 NILO 52



Physical Properties

Grade Density Resistivity
Kovar 8.25 g/cm3 0.43

tube9

Grain size of Alloy52
The grain size of the alloy deep-drawing belt should not be less than level 7, and the grain size less than level 7 should not exceed 10% of the area. When the average grain size of the strip with a thickness of less than 0.13mm is estimated, the number of grains along the thickness of the strip should be no less than 8.



Welding performance of Alloy52
The combined gold has good welding performance and can be brazed and spot welded. The combination of gold and soft glass should be pre-oxidized before sealing.



Coefficient of Expansion

Alloy Linear Coefficient of Thermal Expansion a,10-6/°C
20-200°C 20-300°C 20-350°C 20-450°C 20-500°C 20-600°C 20-700°C 20-800°C
Kovar 10.4 10.2 10.3 10.3 10.3 10.8 / /

Heat Treatment For Alloy52
(1) Stress relief annealing In order to eliminate the residual stress of parts after machining, stress relief annealing is required: 430~540℃, heat preservation 1~2h, furnace cooling or air cooling. [1]
(2) Intermediate annealing In order to eliminate the work hardening phenomenon caused by the alloy in the process of cold rolling, cold drawing and cold stamping, in order to facilitate the continued processing. The workpiece needs to be heated to 700~800℃ in a vacuum or protective atmosphere for 30~60min, then furnace cooled, air cooled or water quenched.
(3) Pre-oxidation treatment When the combined gold is used as a sealing material, it should be pre-oxidized before sealing. A uniform and dense oxide film is formed on the surface of the alloy. The parts are heated in saturated wet hydrogen at 1100°C for 30 minutes, and then oxidized in the air at about 800°C for 5-10 minutes. The weight gain of the parts should be 0.1~0.3mg/cm2
