310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy

310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy
310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy 310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy 310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy

Large Image :  310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001:2015
Model Number: SP-CuNi14
Payment & Shipping Terms:
Minimum Order Quantity: 5KG
Packaging Details: Spool+paper case + wooden case(or customized)
Delivery Time: 5-15 working days after payment confirmed
Payment Terms: L/C, T/T, , Paypal
Supply Ability: 20000 KG per month
Detailed Product Description
Name: Copper Nickel Alloy NC020 CuNi14 Wire Strip Rod Uniform Resistance For Seaship Accessories Material: CuNi14(CN020)
Resistivity: 0.20(at 20℃ (Ωmm2/m)) Temperature Factor Of Resistivity(20℃~600℃)X10-5/℃: <38
EMF Vs Cu(μV/℃ )(0~100℃ ): -28 Melting Point (℃): 1115
Supply State: Wire/Strip/Rod
High Light:

CuNi14 Copper Nickel Alloy

,

NC020 Copper Nickel Alloy

,

310Mpa Copper Based Alloys

Copper Nickel Alloy NC020 CuNi14 Wire Strip Rod Uniform Resistance For Seaship Accessories





Common Name:CuNi14,NC20



OhmAlloy020 is a copper-nickel alloy (Cu86Ni14 alloy) with low resistivity for use at temperatures up to 300°C.



OhmAlloy020 is kind of low resistance heating alloy.It is one of the key materials of the low-voltage electrical products. It is widely used in low-voltage circuit breaker, electric blankets.thermal overload relay, and other low-voltage electrical product.



OhmAlloy20 is typically used for low-temperature applications such as heating cables.

Normal composition%

Nickel 14 Manganese 0.3
Copper Bal.









310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy 0310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy 1

Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
145 310 25



Typical Physical properties

Density (g/cm3) 8.9
Electrical resistivity at 20℃ (Ωmm2/m) 0.12
Temperature factor of resistivity(20℃~600℃)X10-5/℃ <38
Conductivity coefficient at 20℃ (WmK) 48
EMF vs Cu(μV/℃ )(0~100℃ ) -22





Coefficient of thermal expansion
Temperature Thermal Expansion x10-6/K
20 - 400 17.5



Specific heat capacity
Temperature 20
J/gK 0.380



Melting point (℃) 1115
Max continuous operating temperature in air (℃) 300
Magnetic properties non-magnetic





Corrosion resistance performance

Alloys Working In atmosphere at 20℃ Working at max temperature 200℃

Air and oxygen contain

gases

gases with Nitrogen

gases with sulfur

oxidability

gases with sulfur

reductibility

carburization
OhmAlloy020 good general general general bad good



Style of supply

Alloys Name Type Dimension

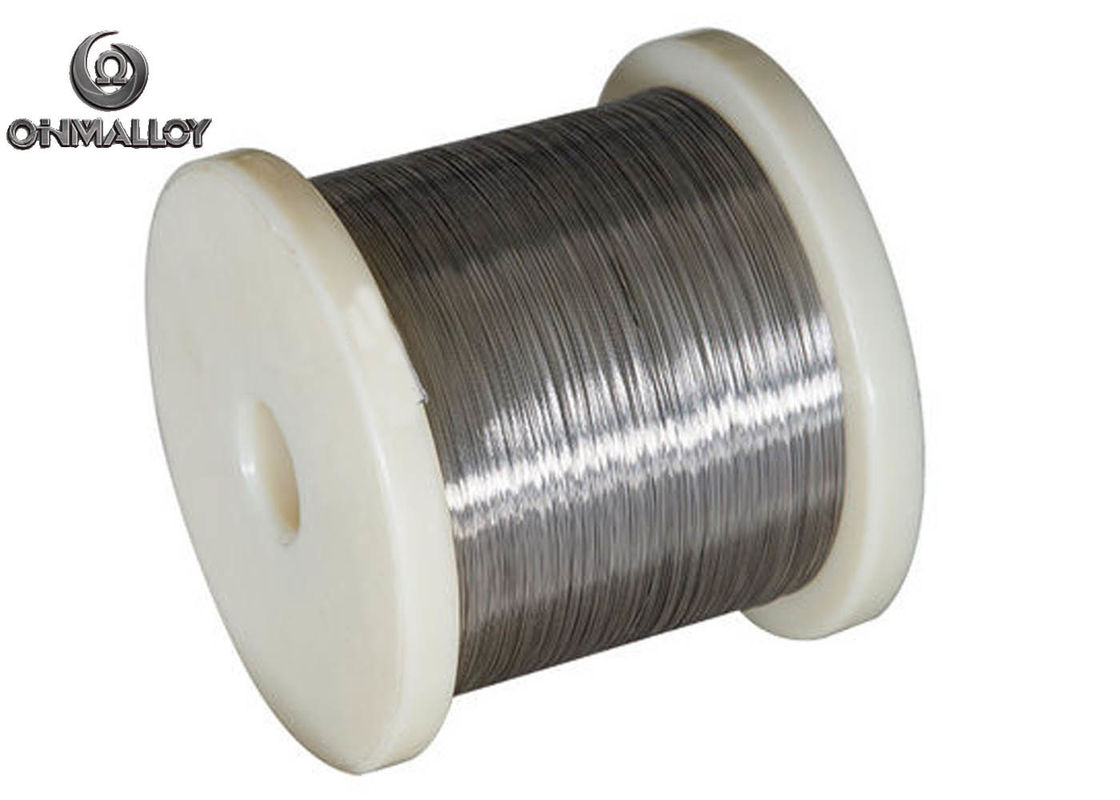

OhmAlloy020W Wire D=0.06mm~8mm
OhmAlloy020R Ribbon W=0.4~40 T=0.05~2.9mm

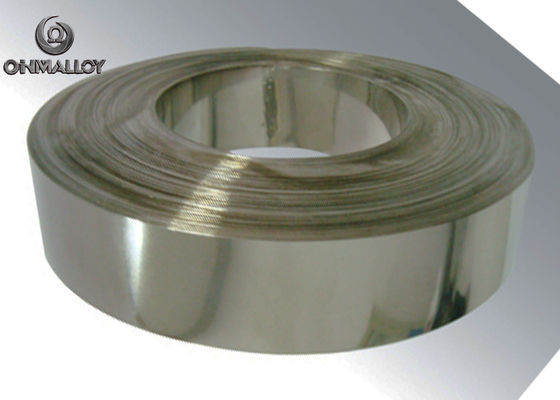

OhmAlloy020S Strip W=8~200mm T=0.1~3.0
OhmAlloy020F Foil W=6~120mm T=0.005~0.1

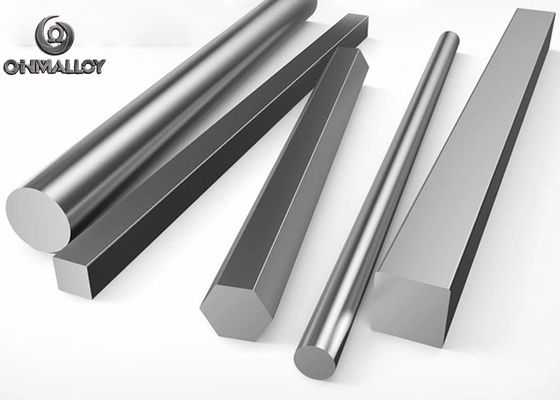

OhmAlloy020B Bar Dia=8~100mm L=50~1000



CuNi14 CN020  Wire Application

310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy 2310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy 3

310Mpa Wire Strip NC020 CuNi14 Copper Nickel Alloy 4
