PWHT 2.9mm 500M/Roll 19 Strands Nickel 200 Wire Rope

Large Image : PWHT 2.9mm 500M/Roll 19 Strands Nickel 200 Wire Rope Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OHMALLOY/OEM
Certification:	ISO9001：2015
Model Number:	SP-2080-37Strands

Payment & Shipping Terms:

Minimum Order Quantity:	500Meter
Price:	USD 1.02-2.58 per meter
Packaging Details:	Spool+Plywood Case
Delivery Time:	5-15 working days after payment confirmed
Payment Terms:	L/C, T/T, ,Paypal
Supply Ability:	3000 KG per month

Contact Now

Detailed Product Description

Name:	Pure Nickel 200 19 Strands Wire Rope 500M/Roll PWHT Cold Tail Application	Wire Material:	Pure Nickel(nickel 200)
Wire Strands:	19 Strands	Size:	19*0.574mm
Finished Diameter:	2.9mm	Application:	PWHT Ceramic Heating Pad Wire
Wire State:	Bright，Annealed	Pack Style:	500Meter/Roll
Highlight:	2.9mm Nickel 200 Wire Rope , 19 Strand Pure Nickel Wire , 500M/Roll Pure Nickel Wire

Pure Nickel 200 19 Strands Wire Rope 500M/Roll PWHT Cold Tail Application

Specification
Item Name	Pure Nickel 19 Strands Wire Rope
Conductor Material	Pure Nickel
Conductor Dia	19*0.574m m
Finished Diameter	2.9mm(+/-0.3mm)
Resistance	0.0198 ohm/meter (±5%)
Wire State	Bright, Annealed
Package	DIN250
Weight	500Meter/Spool

Product Name: 19 Strand pure nickel wire

Specification: 19*0.574mm

Outer Diameter: 2.9mm(±0.3mm)

Quantity: 5000 meter

Resistance: 0.0198 ohm/meter (±5%)

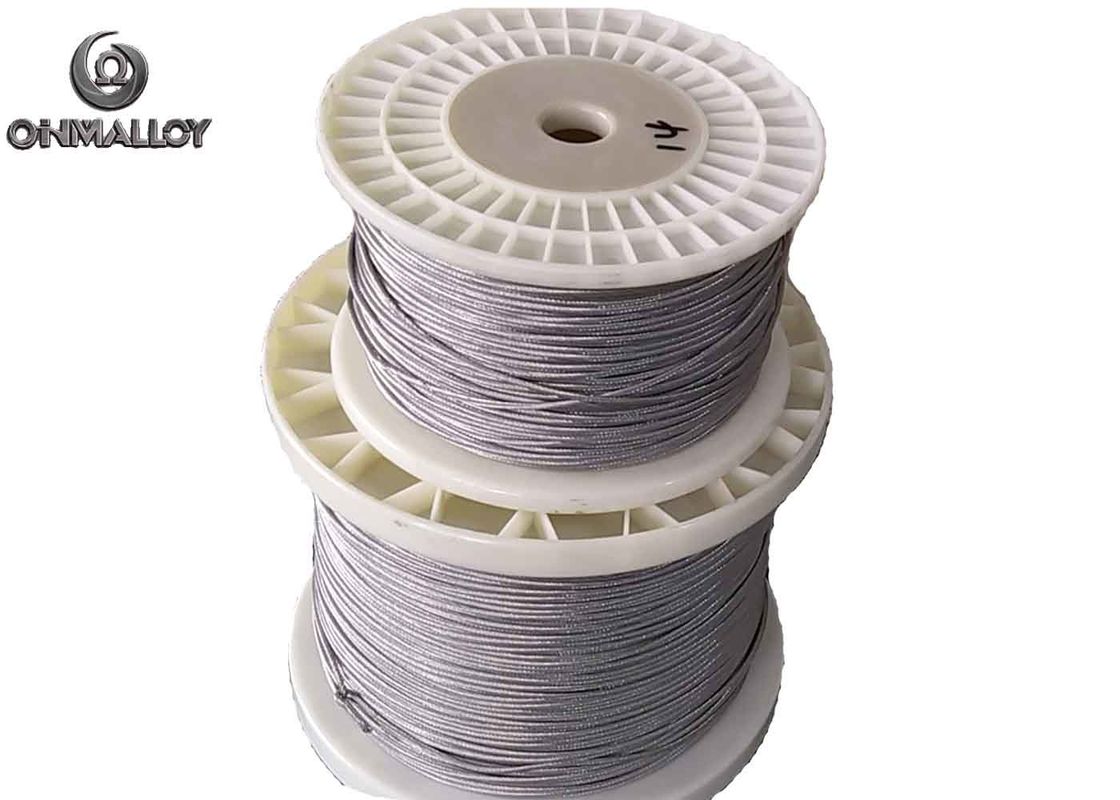

PWHT 2.9mm 500M/Roll 19 Strands Nickel 200 Wire Rope 1

Cable Diameter

Conductor Material

Number of Strands

King Wire Size

Resistance (Ohm/meter)

2.9mm

(±0.2mm)

Pure nickel (N953D10)

19*0.574mm (±0.015mm)

0.574mm (±0.015mm)

0.0198(+/-5%)

Qualified

Conductor Material Inspection: pure nickel Material Batch NO.: N953D10

Ni+Co	S	Si	Cu	C	Mn	Fe
≥99.5	<0.001	<0.01	0.045	0.026	<0.002	0.032

Wire Rope Type and Standard Size Reference:

Alloy Wire	No. of Strands	Nominal OD (mm)	King Wire Size (mm)	Resistance (Ω/m)	Length (m/kg)
0Cr20Ni80	19*0.523	2.7	0.574	0.285	29
0Cr15Ni60	19*0.523	2.76	0.574	0.29	30
0Cr20Ni80	37*0.385	2.76	0.45	0.279	28
Pure Nickel	19*0.574	2.87	0.574	0.0198	21
Nickel 212	19*0.574	2.87	0.71	0.0234	22
