Product Details:
Payment & Shipping Terms:
|
| Chemical Composition: | 21%Cr 6%Al Balance Fe | Dimensions: | 0.02-10mm |
|---|---|---|---|
| Material: | Alloy | Shape: | Wire |
| Application: | Industry And Household Appliances | Resistivity(μΩ.m): | 1.42 |
| Tensile Strength (≥ MPa): | 720 | Elongation (≥ %): | 20 |
| Yield Strength (≥ MPa): | 520 | Density (g/cm3): | 7.16 |
| Working Temperature(℃): | 1250 | OEM: | Available |
| Annealing Treatment: | Hydrogen Annealing | Surface Treatment: | Bright Oxidation |
| Certificate: | ISO CE Rohs | ||
| High Light: | 0Cr21Al6 FeCrAl Alloy,1250C 0Cr21Al6 Strip,21/6 FeCrAl Alloy |
||

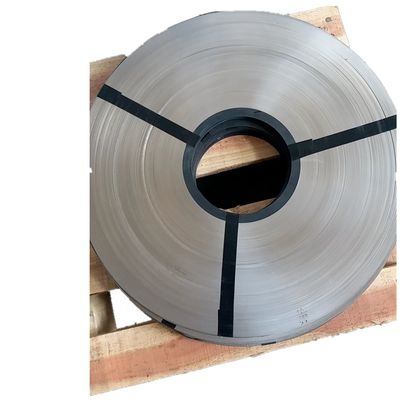

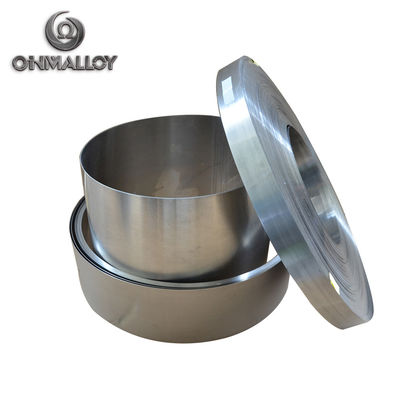

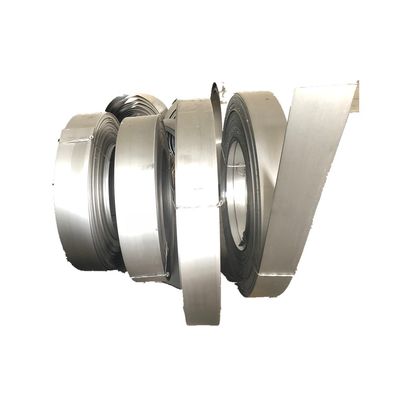

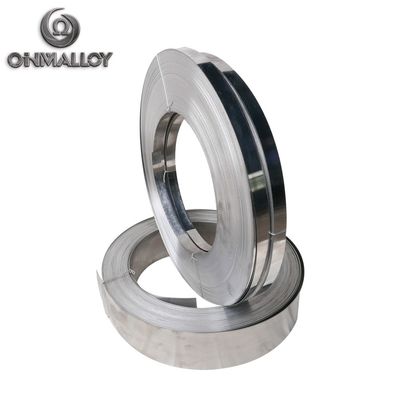

1.5mm*10mm 0Cr21Al6 strip FeCrAl 21/6 alloy for ceramic resistor at 1250C working temperature
(Common Name:0Cr21Al6)
OhmAlloy142A is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.
Typical applications for OhmAlloy142A are used in electric ceramic cooktop,industrial furnace,heaters and catalytic purifier.
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | Max 1.0 | 19.0~22.0 | Max 0.60 | 5.0~7.0 | Bal. | - |
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 520 | 720 | 20 |
| Density (g/cm3) | 7.16 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.42 |
| Conductivity coefficient at 20℃ (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 14.7 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 13 |
| Melting point (℃) | 1500 |
| Max continuous operating temperature in air (℃) | 1250 |
| Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ | 1300℃ |
| 1 | 1.000 | 1.002 | 1.006 | 1.011 | 1.020 | 1.037 | 1.046 | 1.049 | 1.052 | 1.055 | 1.058 | - |
Style of supply
| Alloys Name | Type | Dimension | ||
| OhmAlloy142AW | Wire | D=0.03mm~8mm | ||
| OhmAlloy142AR | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| OhmAlloy142AS | Strip | W=8~250mm | T=0.1~3.0 | |
| OhmAlloy142AF | Foil | W=6~120mm | T=0.003~0.1 | |
| OhmAlloy142AB | Bar | Dia=8~100mm | L=50~1000 | |
