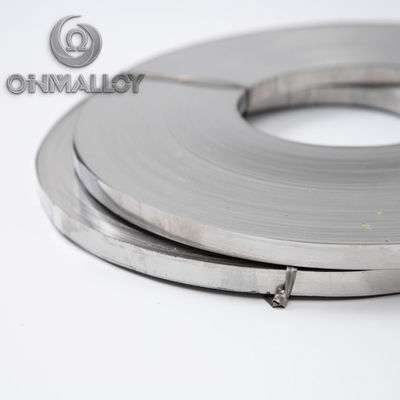

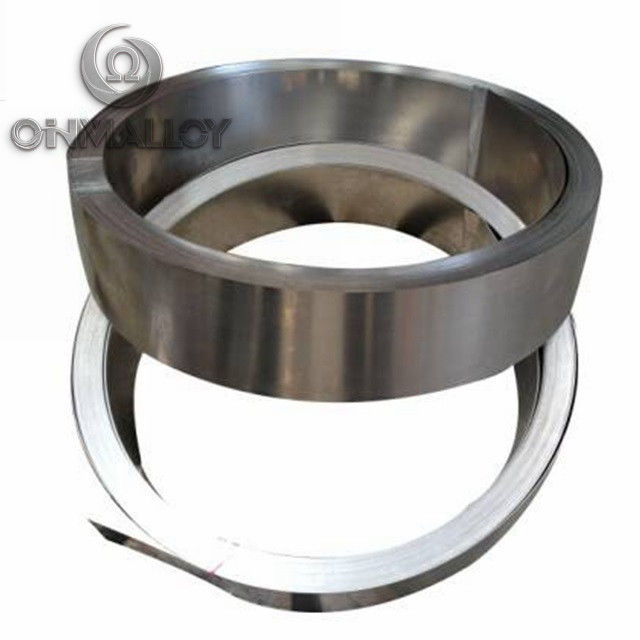

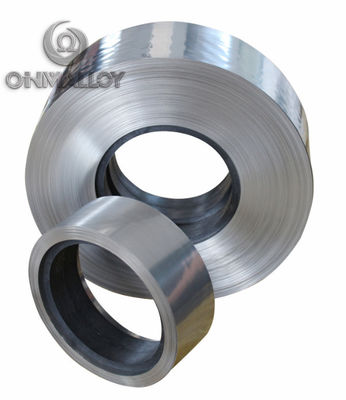

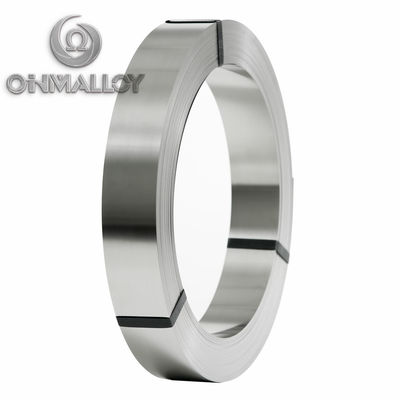

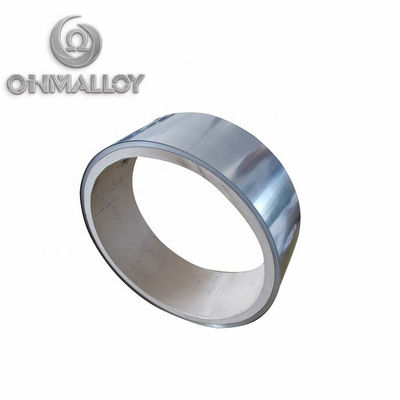

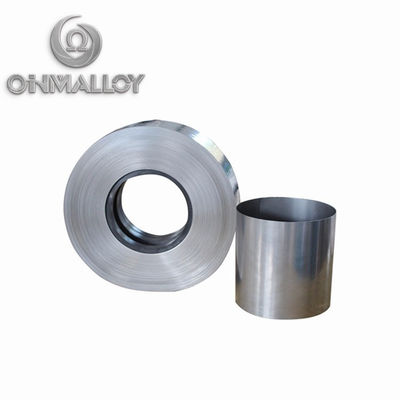

0.1mmxWidth 200mm Nickel Silver Strip JIS C7521 / Germany Copper Alloy Tape

0.1mmxWidth 200mm Nickel Silver Strip JIS C7521 / Germany Copper Alloy Tape
0.1mmxWidth 200mm Nickel Silver Strip JIS C7521 / Germany Copper Alloy Tape
video play

Large Image :  0.1mmxWidth 200mm Nickel Silver Strip JIS C7521 / Germany Copper Alloy Tape Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO ROHS
Model Number: C75200
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Price: negotiable
Packaging Details: IN Wooden box
Delivery Time: 7-20days after your deposit received
Payment Terms: , L/C, T/T
Supply Ability: 20000T/Year
Detailed Product Description
Standard: ASTM B122 Surface: Bright
Thickness: 0.05~2 Power Or Not: Not
Type: Cu-Ni-Zn Craft: Hot Forging& Cold Rolling
Shape: Foil&Strip DIN: 2.0740
JIS: C7521 Cu: Min63
UNS: CuNi18Zn20
High Light:

200mm Nickel Silver Strip

,

C7521 German Copper Alloy Tape

,

C7521 Nickel Silver Strip

0.1mmxWidth<200mm Nickel Silver Strip JIS C7521 / Germany Copper Alloy Tape


Product Description



C7521(CuNi18Zn20) UNS.C75200

Nickel Silver Alloys, also called Copper - Nickel - Zinc alloys, 65 - 18 - 18 respectively.which has good formability, good corrosion and tarnish - resistance performance, and this alloy has the pleasing silver - like color.



Chemical composition

Articles Chemical composition
GB UNS EN JIS Cu% Ni% Zn%
BZn18-18 C75200 CuNi18Zn20 C7521 62-66 16.5-19.5 Rem





Physical properties,fabrication properties

Physical properties fabrication properties
density g/cm3 electrical conductivity %IACS thermal conductivity W/(m.K) modulus of elasticity GPa specific heat J/(g.K) cold-workability machinability electric plating property hot dip tin plating property weldability corrosion
8.73 6 32 125 0.34 excellent suitable excellent excellent good excellent



Mechanical properties

Mechanical properties
State Hardness HV Tension test bending test
Thickness mm Tensile strength MPa elongation % thickness angles ID
0 - 0.1-5.0 ≥375 ≥20 ≤1.6 180° sticking closely
1/2H 120-180 0.1-5.0 440-570 ≥5 ≤1.6 180° 100% of thickness
≤0.5 200% of thickness
H 150-210 0.1-0.15 540-640 - ≤1.6 180° 200% of thickness
>0.15-5.0 ≥3 ≤0.5 400% of thickness
EH ≥185 0.1-5.0 ≥610 - - - -



Features

1) Good color

2) High toughness

3) High strength

4) High stability

5) Excellent elasticity with fine silver gloss

6) Good fatigue

7) Rust and corrosion resistance properties

8) C7521 and C7541 have very good deep-drawing performance



Applications

1) Shielding material for communication electronics

2) Antenna material

3) EMI-shielding material

4) Spring contact

5) Flexible terminal

6) Environmentally-friendly plating-free electronic parts and components

7) Quartz oscillator

8) High-level material

9) Electric material


Any Inquiry about the Nickel Silver Strip..Welcome to asking.








Production Process

Zinc Germany Copper Alloy Copper Alloy Roll Weight 50kg~5000kg

0.6mm Nickel Silver Strip C7521 / Zinc Germany Copper Alloy

0.6mm Nickel Silver Copper Alloy Copper Alloy MOQ 50kg

0.6mm Nickel Silver Strip C7521 / Zinc Germany Copper Alloy

Package



Strip C7521 / Copper Alloy Copper Alloy OEM Service Available

0.6mm Nickel Silver Strip C7521 / Zinc Germany Copper Alloy

Zinc Germany Copper Alloy Copper Alloy Surface Bright like silver

0.6mm Nickel Silver Strip C7521 / Zinc Germany Copper Alloy



Testing Equirement



0.6mm Nickel Silver Copper Alloy Copper Alloy Package Standard plywood case packaging or according to your demand

0.6mm Nickel Silver Strip C7521 / Zinc Germany Copper Alloy

Shipment



Strip C7521 / Copper Alloy Copper Alloy Shape Strip Roll

0.6mm Nickel Silver Strip C7521 / Zinc Germany Copper Alloy



FAQ:

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
