Product Details:
Payment & Shipping Terms:
|
| Product: | Thermocouple Standard Female Connector Plug Socket Hollow Pin Style | Socket Type: | Female Type K Connector/Socket |
|---|---|---|---|
| Socket Size: | Standard | Socket Stype: | Hollow Pin Style |
| Working Temperature: | 200℃ Continuous Use | MOQ: | 100 Pieces |
| Customized Service: | Color/Logo/Package | ||
| High Light: | 200℃ type k thermocouple panel jack,Thermocouple Female Connector Plug Socket,ISO9001 type k thermocouple panel jack |
||
Thermocouple Standard Female Connector Plug Socket Hollow Pin Style 200℃ Low Cost
| Thermocouple Standard Female Connector Plug Socket Hollow Pin Style 200℃ Low Cost | |
| Socket Type | Female Standard Type K Connector/Socket |

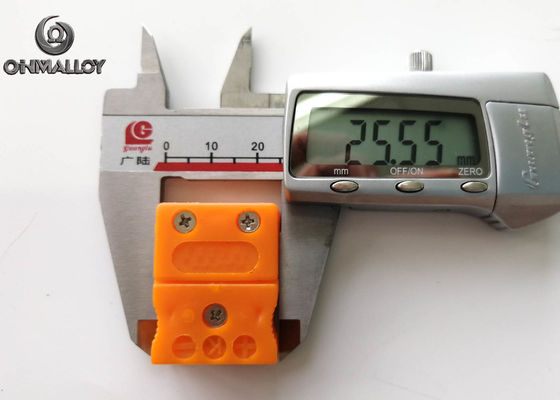

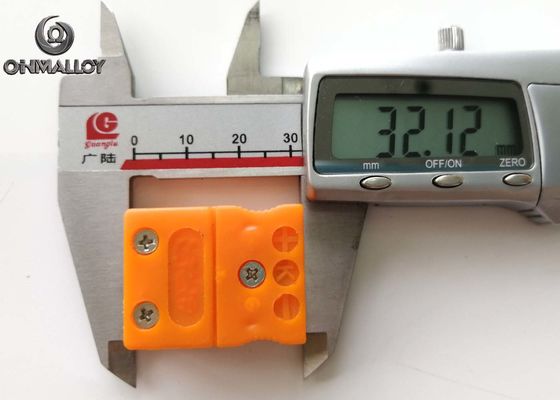

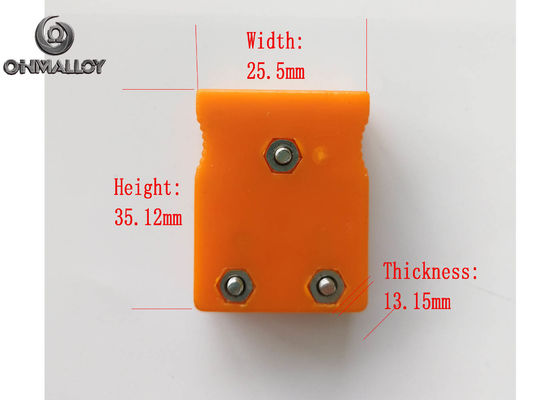

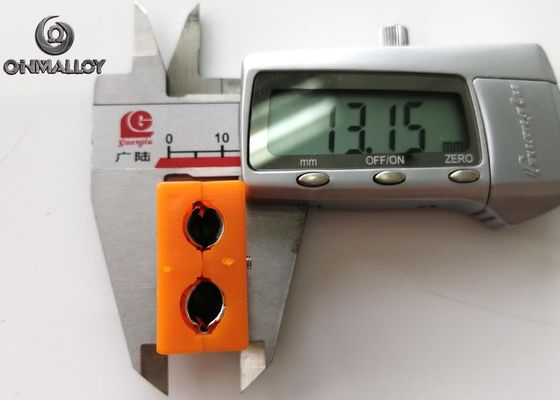

| Socket Dimension | HxWxT:32.12x25.55x13.15mm (Female) |
| Pin Style | Hollow Pin |
| Price |
3.2USD~4.8USD per set(Negotiable) |
| Color | Customized As Customer Requirements |
| Application | Connecting thermocouple probe/wire terminals to extension /compensating cables |

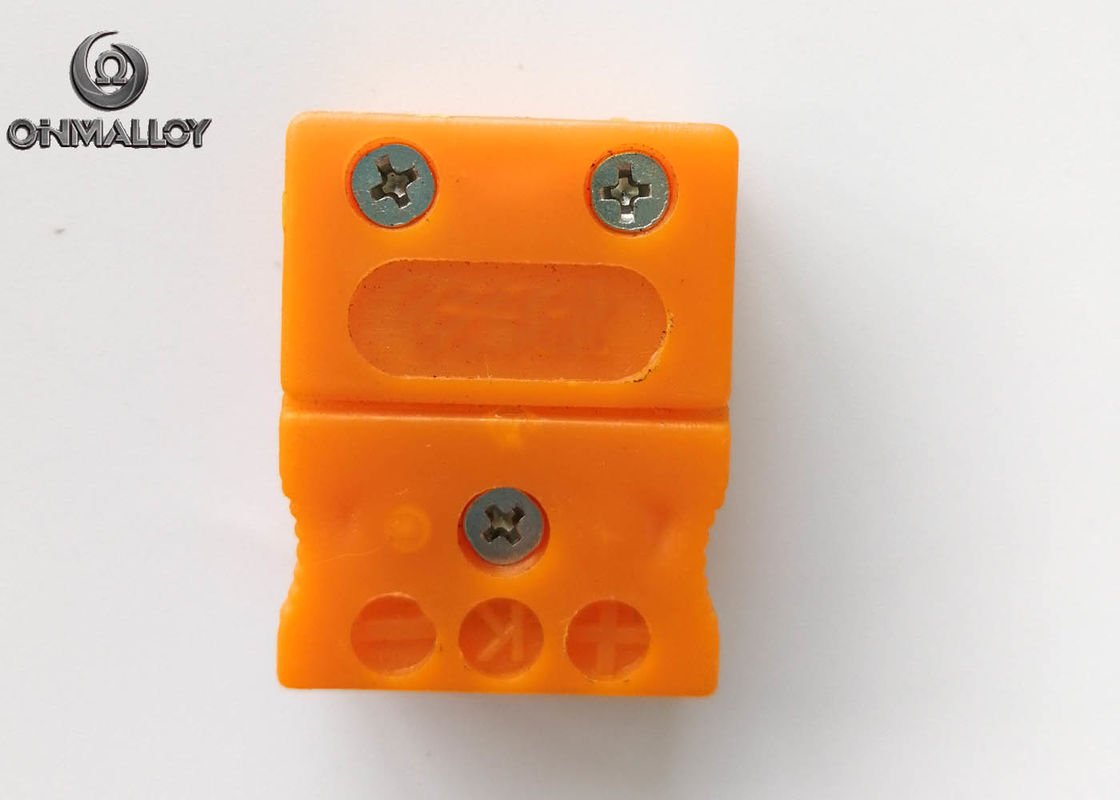

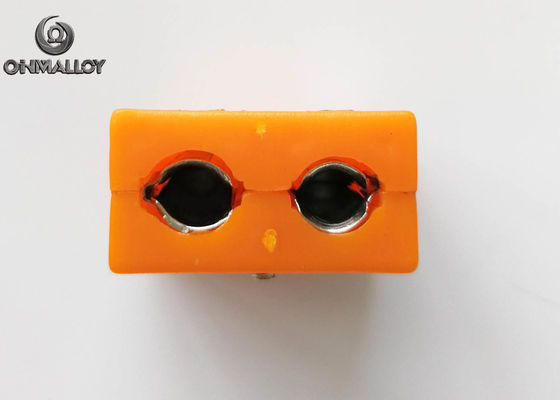

Thermocouple Standard Female Connector Plug Socket Hollow Pin Style Picture
Thermocouple Connector Know-How
Thermocouple connectors are an accurate and convenient method of interconnecting temperature sensing components. Use these connectors to form a chain from the measuring tip of the temperature sensor to the host or instrument. It is important that all components in the chain are made of the same thermocouple material to prevent any change or distortion of the original signal. To achieve this, the pins of the thermocouple connector are made of the same material as the thermocouple used to connect or compensate the material. The thermocouple type is clearly printed on the connector housing and is also marked with colors for easy identification. Open the connector, and then use two fixing screw clips to simply tighten the thermocouple wire in place. The miniature thermocouple plug connector can then be inserted into the mating miniature thermocouple socket connector.
Features and benefits
• The pins are made of real thermocouple alloy or compensation material, which can realize accurate signal transmission
• IEC color coding for quick and easy identification
• Polar flat pin contact, accurate connection
• Made of sturdy glass-filled thermoplastic
• Can withstand high temperatures of 220 ° C
• For multi-strand or solid wire
• Accept thermocouple cables with a diameter of up to 4mm
• Simple external screw clamp connection for quick assembly
• Polarity and thermocouple type are clearly marked on the housing
