|Density (g/cm3):||8.9||Tensile Strength:||420MPa|
|Shape:||Wire/ribbon/strip/foil/bar||Melting Point (℃):||1280|
Self Regulating Silicon Rubber Cable,
Awg 20 Silicon Rubber Cable,
420MPa Silicon Rubber Cable

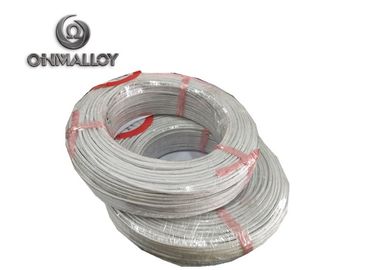

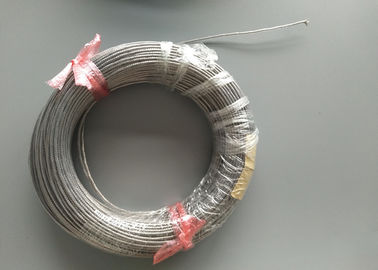

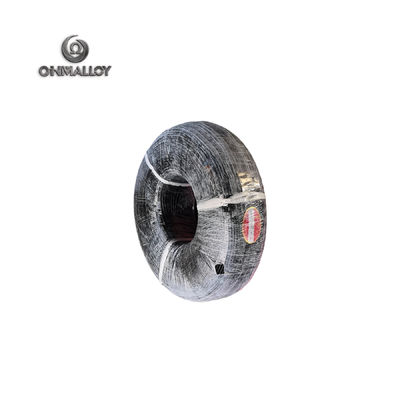

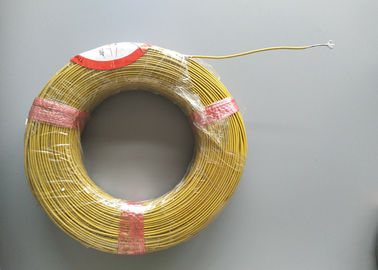

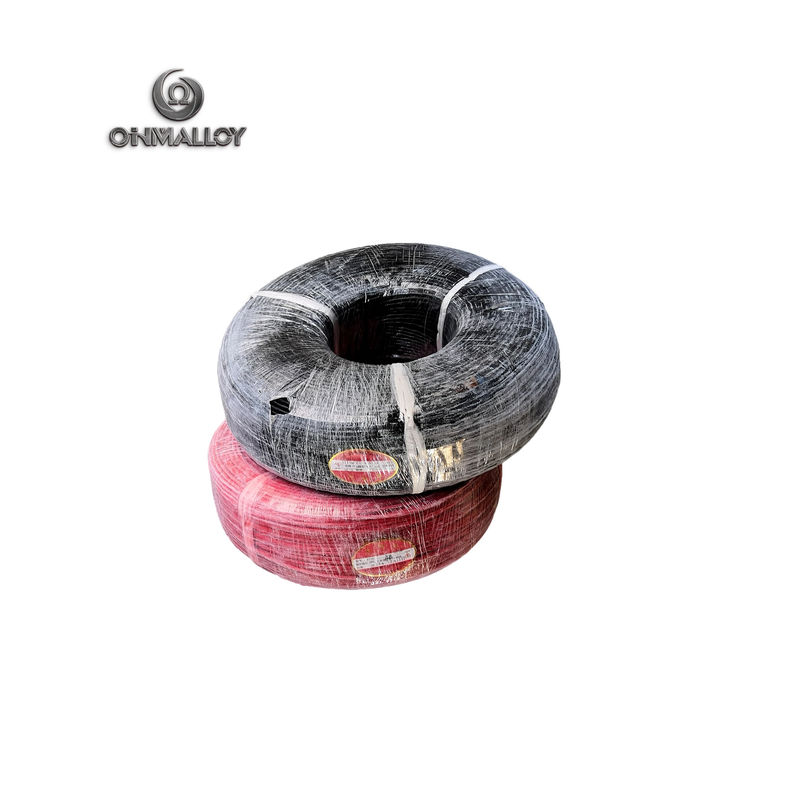

Awg 20 High Temperature Resistance Silicon Rubber Cable For Heating Mat With Self-regulating Heating Cable
1. Insulation: Silicon Rubber
2. Conductor: Constantan( Ohmalloy 049) 20AWG
(Common Name: CuNi45, NC50.Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45, Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan,constantan.)
OhmAlloy049 is a copper-nickel alloy (Cu56Ni44 alloy) characterized by high electrical resistance, high ductility and good corrosion resistance. It is suitable for use at temperatures up to 400°C
Typical applications for OhmAlloy49 are temperature-stable potentiometers, industrial rheostats and electric motor starter resistances.
The combination of negligible temperature coefficient and high resistivity makes the alloy particulary suitable for the winding of precision resistors.
OhmAlloy049 is manufactured from electrolytic copper and pure nickel. In finer wire sizes the alloy is designated as OhmAlloy49TC(Thermocouple).
|Yield strength||Tensile Strength||Elongation|
|Electrical resistivity at 20℃ (Ωmm2/m)||0.49|
|Temperature factor of resistivity(20℃~600℃)X10-5/℃||-6|
|Conductivity coefficient at 20℃ (WmK)||23|
|EMF vs Cu(μV/℃ )(0~100℃ )||-43|
|Coefficient of thermal expansion|
|Temperature||Thermal Expansion x10-6/K|
|20 ℃- 400℃||15|
|Specific heat capacity|
|Melting point (℃)||1280|
|Max continuous operating temperature in air (℃)||400|
Corrosion resistance performance
Working In atmosphere at 20℃
|Working at max temperature 200℃|
Air and oxygen contain
|gases with Nitrogen||
gases with sulfur
gases with sulfur
Style of supply
The thermocouple alloy wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃. The thermocouple alloy wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry. Our products conform to the standards of IEC584 -1and IEC-2 and ANSI96-1.
● Excellent thermoelectricity, excellent linear relationship between thermoelectrical potential and the temperature.
● Excellent thermoelectrical stability, high accuracy.
Main technical data:
Thermocouple variety, index and temperature measurement range.
