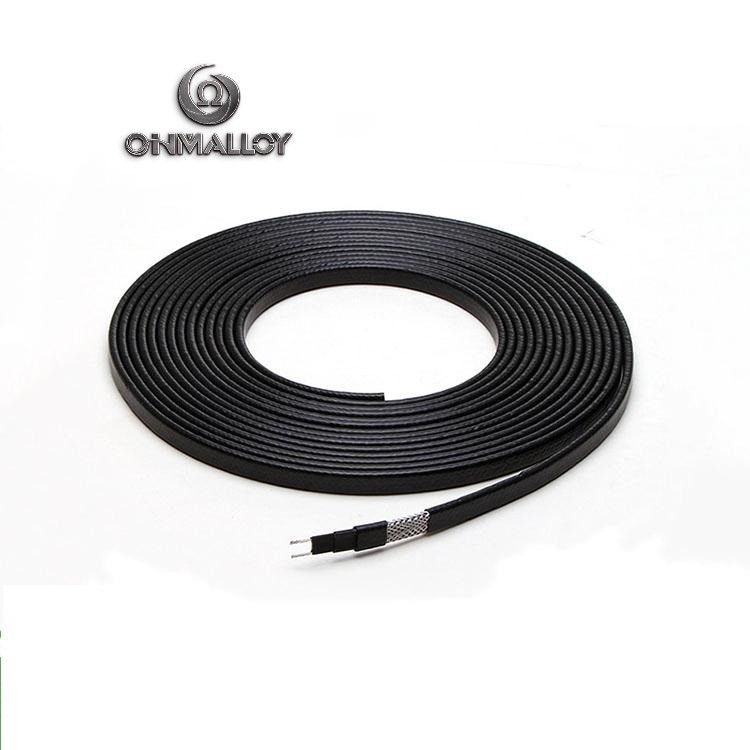

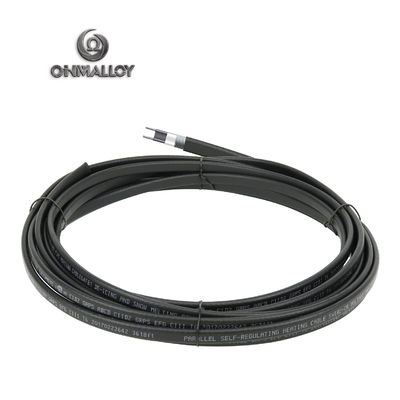

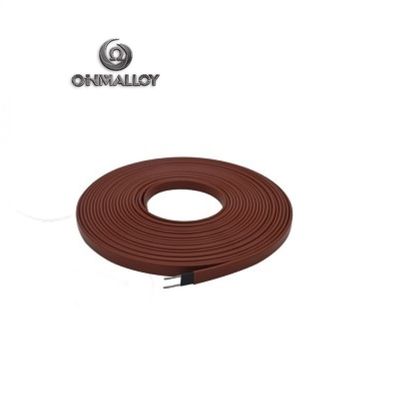

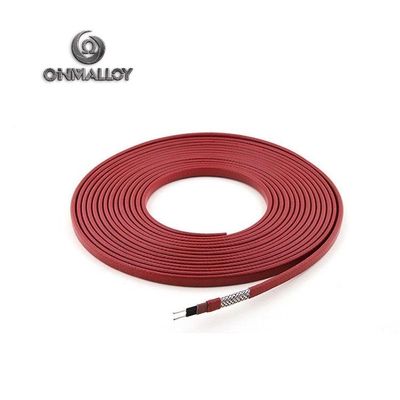

35w/M Self Regulating Heating Cable For Petrochemical Industry

35w/M Self Regulating Heating Cable For Petrochemical Industry
35w/M Self Regulating Heating Cable For Petrochemical Industry 35w/M Self Regulating Heating Cable For Petrochemical Industry 35w/M Self Regulating Heating Cable For Petrochemical Industry 35w/M Self Regulating Heating Cable For Petrochemical Industry

Large Image :  35w/M Self Regulating Heating Cable For Petrochemical Industry Get Best Price

Product Details:

Place of Origin: China
Brand Name: Ohmalloy
Certification: ISO CE
Model Number: FSM/FSH-98

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Packaging Details: coil
Delivery Time: within 7 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000 m/week
Detailed Product Description
Conductor Material: Tinned Cooperwire Application: Heating
Type: Insulated Insulation Material: FEP, PFA, PVC, PTFE
Color: Blue,Black,Red,Customized Jacket: FEP, PFA, PVC, PTFE
Packing: 100 Meters/Roll
High Light:

35w/M Self Regulating Heating Cable

,

Petrochemical Self Regulating Heating Cable

,

Insulated Self Regulating Heating Cable

35w/m Self-regulating heating cable used in petrochemical industry

Item No.: FSM/FSH-98

Application: Pipe Heating, Frost protection, Snow Melting and De-icing,

Insulation Material: Polyolefin, PE, FEP

Conductor Material: Tinned Copper

Jacket: Polyolefin, PE, FEP

Description

Summary

Self-regulating heating cable is constructed of a semiconductor heater and two parallel bus wires with the addition of insulation layer, The heating elements are parallel to each other and its resistivity has a high Positive Temperature Coefficient "PTC". It has the characteristics of automatically regulating the temperature and output power when heat; It can be sheared to use and overlapped by itself without the problems of overheat and burnout.

Working Principle

In each self regulating heating cable, circuits between the bus wires change with the ambient temperature. As temperature decreases, the resistance decreases which produces more output wattage; On the contrary, as temperature increases, resistance increases which lower the output wattage, loop back and forth.

Features

1. Energy efficient automatically varies its power output in response to pipe temperature changes.

2. Easy to install, can be cut to any length (up to max circuit length) required on site with no wasted cable.

3. No overheat or burnout. Suitable for use in non-hazardous, hazardous and corrosive environments.



Applications

1. Processing of agricultural and sideline products and other applications, such as fermentation, incubation, breeding.

2. It applies to as all kinds of complicated environment such as ordinary, danger, corrosion, and explosion-proof areas.

3. Frost protection, ice-melting, snow-melting and anti-condensation.

35w/M Self Regulating Heating Cable For Petrochemical Industry 0

Type



Type

Power

(W/M, at 10)

Maximum Tolerance Temperature Maximum Maintain Temperature Minimum Installation Temperature Maximum Usage Length (based on 220V)
Low Temperature

10W/M

15W/M

25W/M

35W/M

105℃ 65℃±5℃ -40℃ 100m
Medium Temperature

35W/M

45W/M

50W/M

60W/M

135℃ 105℃±5℃ -40℃ 100m
High Temperature

50W/M

60W/M

200℃ 125℃±5℃ -40℃ 100m
