| Max Temperature: | 1200℃ | Insulation Resistance: | Up To 5500ohm/meter (Customized) |
|---|---|---|---|
| Power /Meter: | 0-3000W(Customized) | Color: | Customized Color |
| High Light: | Insulated NiCr Nickel Alloy,0Cr20Ni80 Heating Resistance Wire,FEP Insulated Resistance Wire |
||

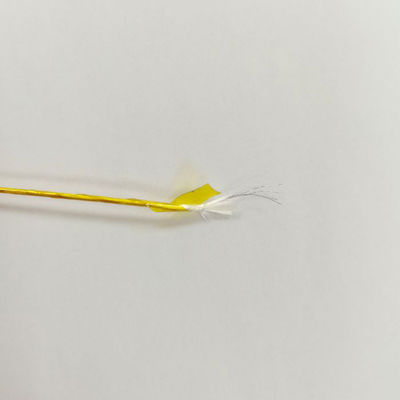

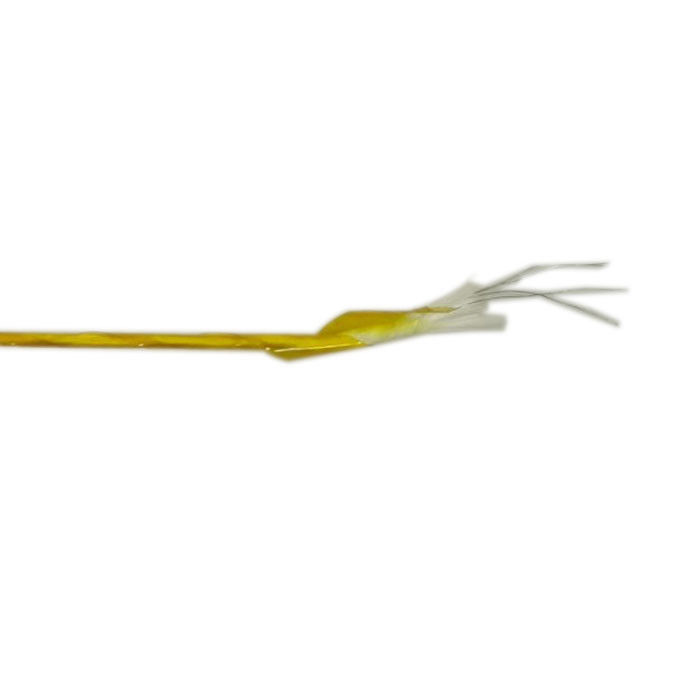

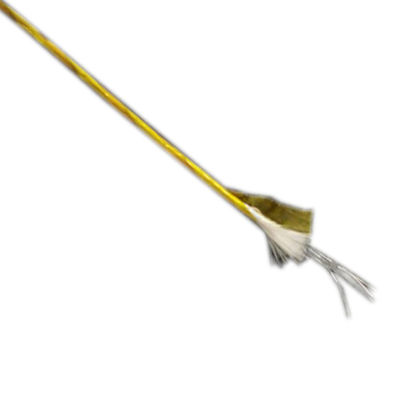

NiCr Nickel Alloy 0Cr20Ni80 Heating Resistance Wire Kapton Insulated for High Temperature Heating
Ohmalloy not only produce the bare resistance wire. It can also provide the resistance wire with insulation as we have 30 years in producing the thermocouple extension cable.
The insulated resistance wire are widely used for standard resistor, automobile parts, room heating.....
Ohmalloy provide the following insulation material:
PVC Insulated resistance wire
PTFE/FEP Insulated resistance wire
Fiberglass Insulated resistance wire
Enameled resistance wire
Silicon rubber Insulated resistance wire.
Type of bare alloy wire as follows:
| Copper-nickel alloy wire | Constantan Wire,CuNi1~CuNi44 |
| Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr AA |
| Fe-Cr-Al Alloy wire |
Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin |
| Any copper alloy and nickel alloy is available | |
| Insulation Material | Fiberglass(400℃/600℃/800℃/1000℃)/ Silicone Rubber/ PVC/FEP(200℃)/PFA(260℃)/PTFE |
| Color | Customized color |
| Bending /Warping Test | bending test>5000 times, no deformation wrapping test>25000,no deformation |
| Max Temperature | 200℃/260℃/400℃/600℃/800℃/1000℃/1200℃ |
| Rated Voltage | 300V/500V/1000V/2000V/3000V |
| Insulation Resistance | Up to 5500ohm/meter (Customized) |
| Power /Meter | 0-3000W(Customized) |
| Application | Electric blanket, electric heating cushion, pet mat, jade mattress, electric heating belt, electric heating warm clothes, electric heating shoes, electric heat massage chair, air conditioner, refrigerator defrost, electric cooker, electric towel rack, pipe tank body antifreeze, car window heating, medical beauty equipment and other internal use lines |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
