SGS 0.12x250mm Beryllium Copper Strip For Auto Electrical Appliances

SGS 0.12x250mm Beryllium Copper Strip For Auto Electrical Appliances
SGS 0.12x250mm Beryllium Copper Strip For Auto Electrical Appliances
video play

Large Image :  SGS 0.12x250mm Beryllium Copper Strip For Auto Electrical Appliances Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY
Certification: SGS
Model Number: C17200
Payment & Shipping Terms:
Minimum Order Quantity: 15kg
Price: USD 32KG~40KG
Packaging Details: Woodencase
Delivery Time: 10 work days
Payment Terms: T/T, L/C, D/A,
Supply Ability: 50T/Monthes
Detailed Product Description
Type: Strip Model Number: C17200
Grade: CuBe Application: Connectors
MOQ: 15kg Size: 0.12x250mm
High Light:

0.12x250mm Beryllium Copper Strip

,

Electrical Appliances Beryllium Copper Strip

,

SGS Beryllium Copper Strip

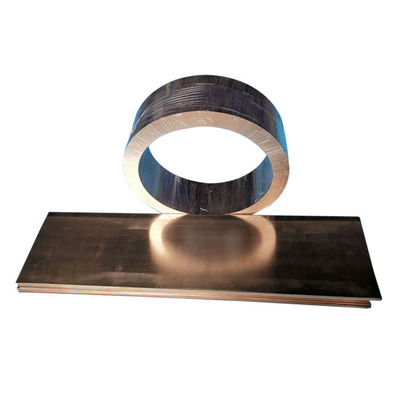

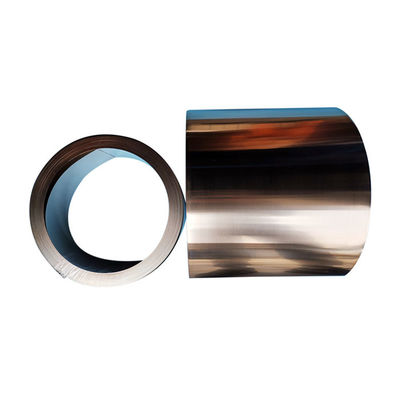

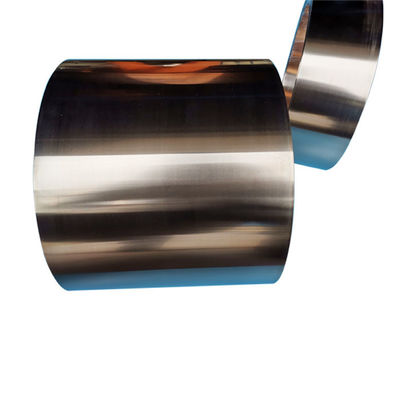

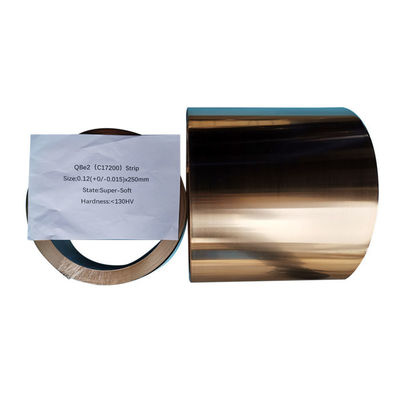

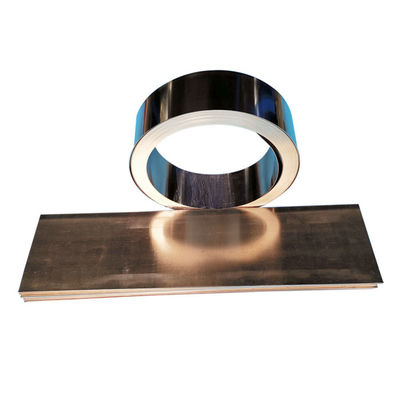

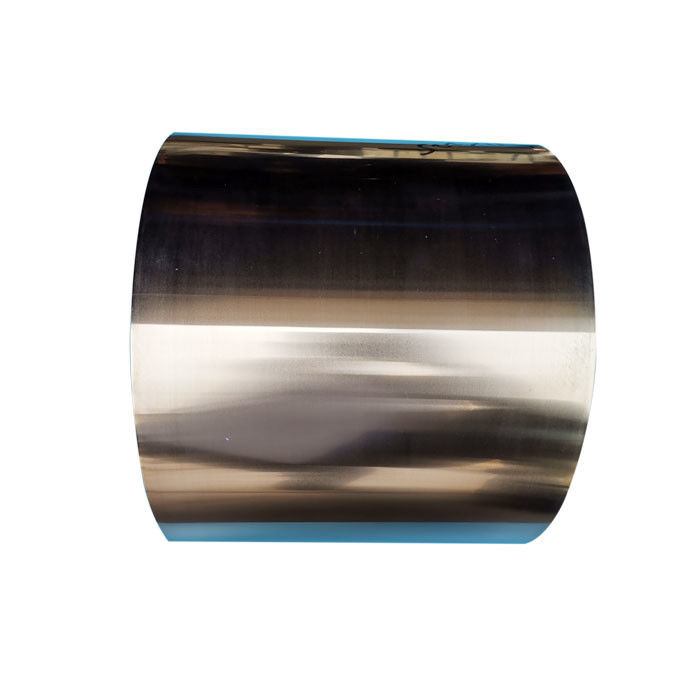

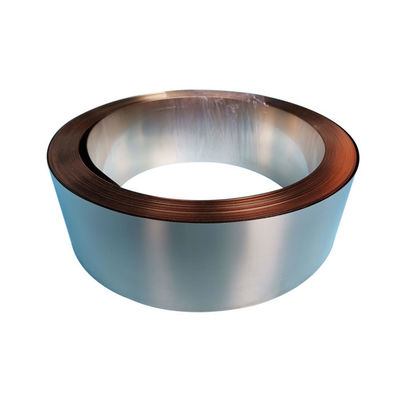

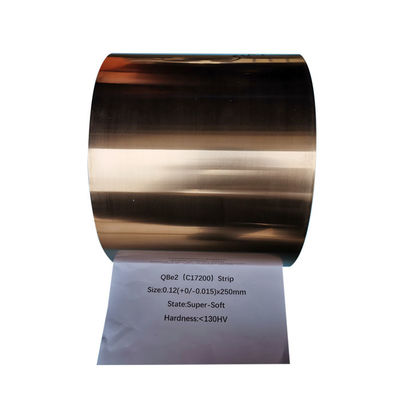

Beryllium Copper Strip / Tape UNS C17200 / Qbe2 Size: 0.12x250mm for Auto electrical appliances


Features:
1.High mechanical properties
2.Good form ability
3.Excellent corrosion resistance
4.Good electrical and thermal conductivities
5.Complete resistance to anelastic behaviour
6.High fatigue
7.Good stress relaxation

8.Excellent wear and abrasion resistance

9.Non-magnetic and Non-sparking

10.Operate over a wide range of temperatures



Chemistry Content-OHMALLOY
Name Main Chemistry Content Impuity(wt%)
Be Co Ni Cu Fe Al Si Pb Total
QBe2 1.8~2.1 / 0.2~0.25 Bal 0.15 0.15 0.15 0.005 0.5
QBe1.9 1.85~2.1 Ti:0.1~0.25 0.2~0.4 Bal 0.15 0.15 0.15 0.005 0.5
CuBe1.7(C17000) 1.6~1.79 Ni+Co0.2 Cu+stipulated Element99.5 Ni+Co+Fe0.6 0.5
CuBe2(C17200) 1.8~2.0 Ni+Co0.2 Cu+stipulated Element99.5 Ni+Co+Fe0.6 0.5
C17300 1.8~2.0 Ni+Co0.2 Cu+stipulated Element99.5 Ni+Co+Fe0.6 0.2~0.6 0.5
C17500 0.4~0.7 2.4~2.7 / Bal Cu+Be+Ni+Co99.5
C17510 0.2~0.6 0.3 1.4~2.2 Bal 0.1 0.02 0.2 / 0.5
CuBe0.3 0.2~0.4 Ni+Co:1.8~2.5

Cu+Be+Ni+Co99.0




Ohmalloy Materials Co. Ltd. is a leader in the manufacture of beryllium copper alloys. We actively participate in all environmental studies of all substances used in our products. Our top priority is to comply with all valid laws and regulations to ensure the continued existence of our products to our customers.

SGS 0.12x250mm Beryllium Copper Strip For Auto Electrical Appliances 0

Beryllium-copper alloys are mainly based on copper to add palladium. High-strength palladium copper alloys contain 0.4-2% vanadium and 0.3 - 2.7% of other alloy elements such as nickel, cobalt, iron or lead. High mechanical strength is achieved by precipitation hardening or aging hardening.

SGS 0.12x250mm Beryllium Copper Strip For Auto Electrical Appliances 1

It is the best highly elastic material in copper alloys. It has high strength, elasticity, hardness, fatigue strength, low elastic lag, corrosion resistance, wear resistance, cold resistance, high conductivity, non-magnetic, no impact, no spark and so on. A range of excellent physical, chemical and mechanical properties

Package:

SGS 0.12x250mm Beryllium Copper Strip For Auto Electrical Appliances 2

FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
