| Type: | Type K / T / E / S / B / N / J / PT100(customized) | Sheath Material: | SS304 / SS310 / SS316L / Inconel 600 / Inconel 601 / GH3030 |
|---|---|---|---|
| Core Diameter: | 0.01-8.0mm(customized) | Number Of Cores: | 1 / 2 / 3 / 4 / 6 / 8 Pairs(customized) |
| Accuracy: | Class I (T±4%) | Plug Type: | MiNi / Standard / Big Size(Customized) |
| Length: | 5 / 10 / 50 / 100 Meters(customized) | Standard Meet: | IEC / JIS / DIN / ANSI / RoHs(customized) |
| High Light: | SS304 Sheath RTD Thermocouple Wire,Insulated RTD Thermocouple Wire,100m Compensation Thermocouple Wire |
||

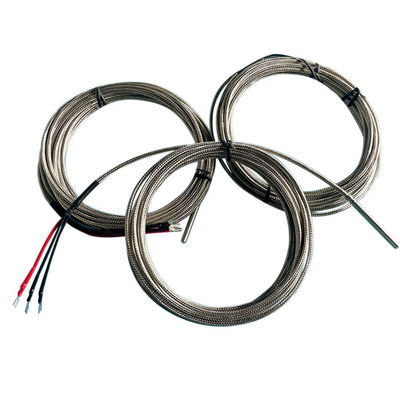

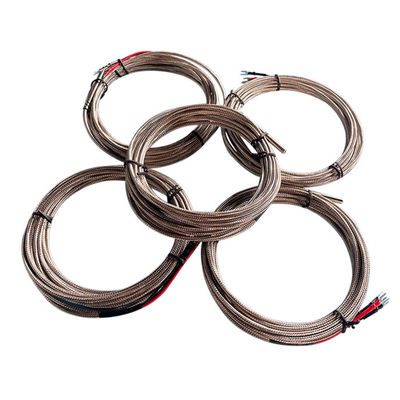

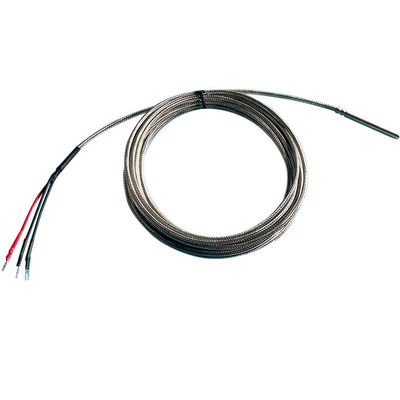

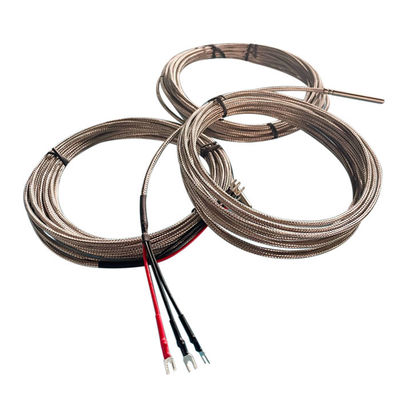

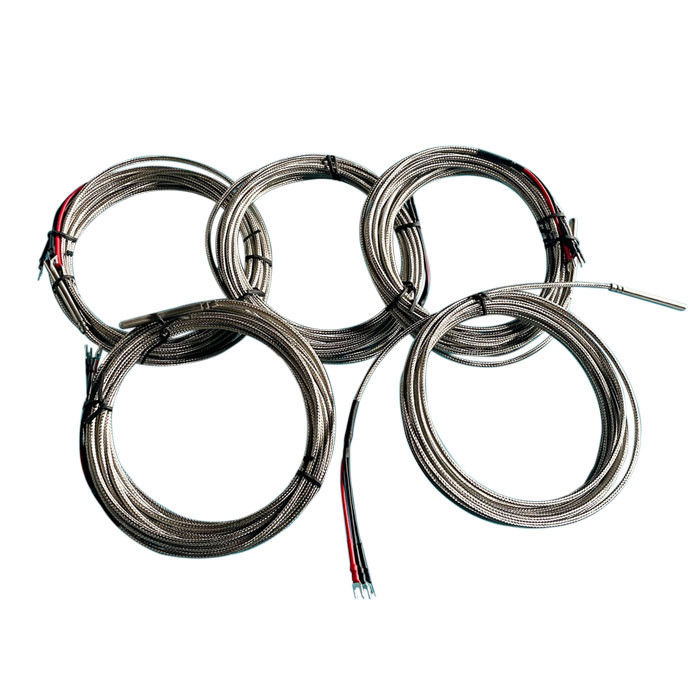

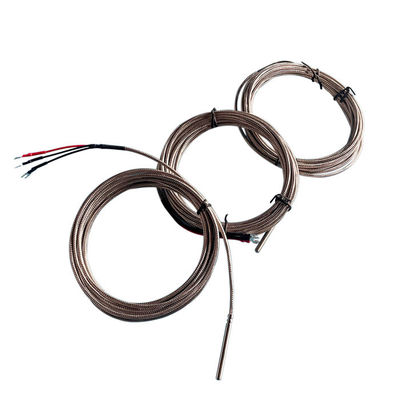

3 wire stainless steel probe high temperature thermocouple RTD sensores PT 100
Specifications
1.Style:Compensation Wire
2.Thermocouple RTD wire
Thermocouple RTD wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.
|
Thermocouple Variety and Index |
||
|
Variety |
Type |
Measurement Range(°C) |
|
NiCr-NiSi |
K |
-200-1300 |
|
NiCr-CuNi |
E |
-200-900 |
|
Fe-CuNi |
J |
-40-750 |
|
Cu-CuNi |
T |
-200-350 |
|
NiCrSi-NiSi |
N |
-200-1300 |
|
NiCr-AuFe0.07 |
NiCr-AuFe0.07 |
-270-0 |
3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+-0.25
Color code & initial calibration tolerances for thermocouple wire
|
Thermocouple Type |
ANSI Color Code |
Initial Calibration Tolerances |
||||
|
Wire Alloys |
Calibration |
+/- Conductor |
Jacket |
Temperature Range |
Standard Limits |
Special Limits |
|
Iron(+) vs. Constantan(-) |
J |
White/Red |
Brown |
0°C to +285°C 285°C to +750°C |
±2.2°C ± .75% |
±1.1°C ± .4% |
|
CHROMEL(+) vs. ALUMEL(-) |
K |
Yellow/Red |
Brown |
-200°C to -110°C -110°C to 0°C 0°C to +285°C 285°C to +1250°C |
± 2% ±2.2°C ±2.2°C ± .75% |
±1.1°C ± .4% |
|
Copper(+) vs. Constantan(-) |
T |
Blue/Red |
Brown |
-200°C to -65°C -65°C to +130°C 130°C to +350°C |
± 1.5% ±1°C ± .75% |
± .8% ± .5°C ± .4% |
|
CHROMEL(+) vs. Constantan(-) |
E |
Purple/Red |
Brown |
-200°C to -170°C -170°C to +250°C 250°C to +340°C 340°C+900°C |
± 1% ±1.7°C ±1.7°C ± .5% |
±1°C ±1°C ± .4% ± .4% |
Color Code & Initial Calibration Tolerance for Extension Wire
|
Extension type |
ANSI Color Code |
Initial Calibration Tolerances |
||||
|
Wire Alloys |
Calibration |
+/- Conductor |
Jacket |
Temperature Range |
Standard Limits |
Special Limits |
|
Iron (+) vs. Constantan(-) |
JX |
White/Red |
Black |
0°C to +200°C |
±2.2°C |
±1.1°C |
|
CHROMEL (+) vs. ALUMEL (-) |
KX |
Yellow/Red |
Yellow |
0°C to +200°C |
±2.2°C |
±1.1°C |
|
Copper(+) vs. Constantan(-) |
TX |
Blue/Red |
Blue |
-60°C to +100°C |
±1.1°C |
± .5°C |
|
CHROMEL(+) vs. Constantan(-) |
EX |
Purple/Red |
Purple |
0°C to +200°C |
±1.7°C |
±1.1°C |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
