| Application: | Heating,Industry,furnace Heating Wire | Shape: | Flat Wire |
|---|---|---|---|
| Material: | FeCrAl | Chemical Composition: | Fe Cr Al |
| Size: | 0.12x2.5mm | Surface: | Bright And Soft |
| High Light: | Cr25Al5 FeCrAl Alloy,0.12x2.5mm FeCrAl Alloy,Household Appliances FeCrAl Alloy |
||

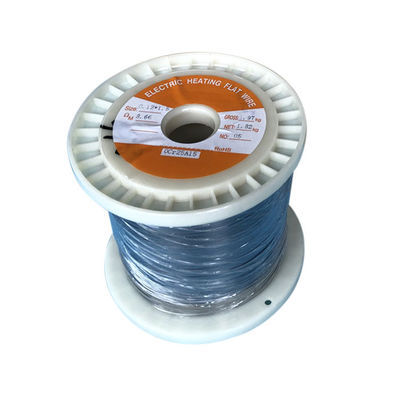

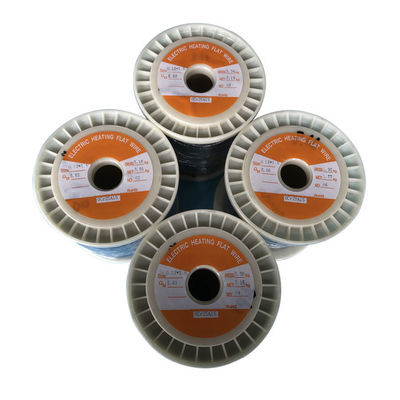

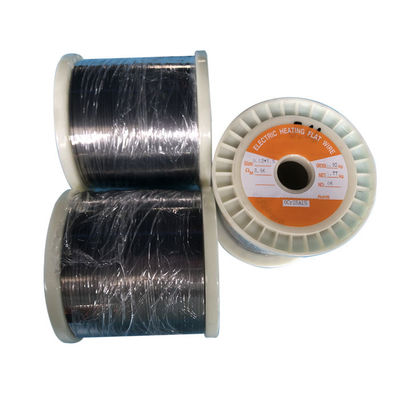

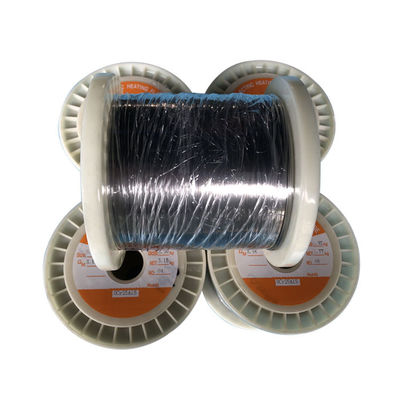

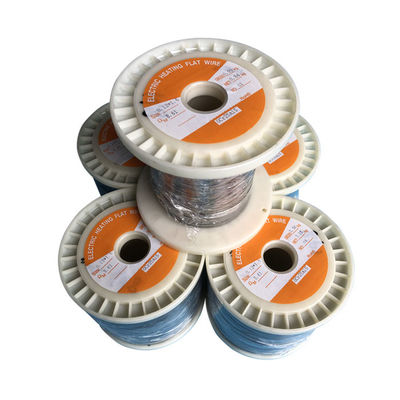

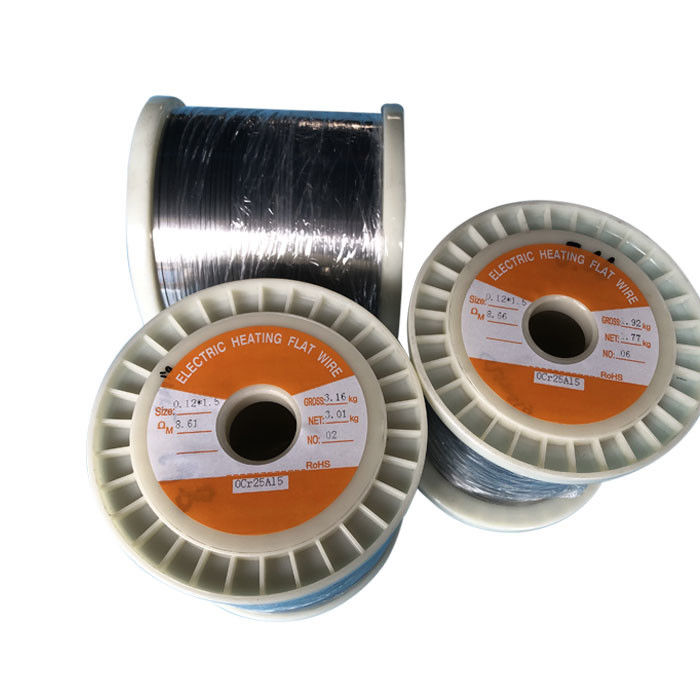

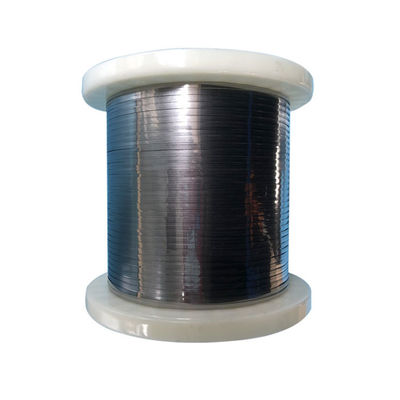

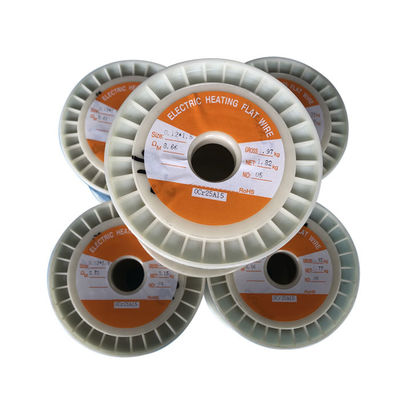

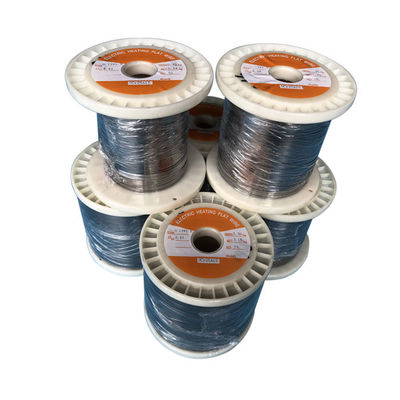

Cr25Al5/alloy 875 0.12x2.5mm heating flat wire for household appliances
OHMALLOY142B is a kind of iron-chromium-aluminium alloy (FecCrAl alloy), which has the characteristics of high resistance, low resistivity, high working temperature and good high temperature corrosion resistance. It is suitable for temperatures up to 1250°C.
Typical applications of OHMALLOY142B are for electric ceramic stoves, industrial stoves, and heaters.
Normal composition%
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
Max |
|||||||||
|
0.06 |
0.025 |
0.025 |
0.70 |
Max 0.60 |
23.0~26.0 |
Max 0.60 |
4.5~6.5 |
Bal. |
|
Typical Mechanical properties
|
Yield strength |
Tensile Strength |
Elongation |
|
Mpa |
Mpa |
% |
|
500 |
700 |
23 |
Typical Physical properties
|
Density (g/cm3) |
7.10 |
|
Electrical resistivity at 20℃(Ωmm2/m) |
1.42 |
|
Conductivity coefficient at 20℃ (WmK) |
13 |
|
Coefficient of thermal expansion |
|
|
Temperature |
Coefficient of Thermal Expansion x10-6/℃ |
|
20 ℃- 1000℃ |
15 |
|
Specific heat capacity |
|
|
Temperature |
20℃ |
|
J/gK |
0.46 |
|
Melting point (℃) |
1500 |
|
Max continuous operating temperature in air (℃) |
1250 |
|
Magnetic properties |
non-magnetic |
Temperature Factor of Electrical Resistivity
|
20℃ |
100℃ |
200℃ |
300℃ |
400℃ |
500℃ |
|
1 |
1.002 |
1.005 |
1.008 |
1.013 |
1.021 |
|
700℃ |
800℃ |
900℃ |
1000℃ |
1100℃ |
1200℃ |
|
1.038 |
1.040 |
1.042 |
1.044 |
1.046 |
1.047 |
Style of supply
|
Alloys Name |
Type |
Dimension |
|
|
OhmAlloy142BW |
Wire |
D=0.03mm~8mm |
|
|
OhmAlloy142BR |
Ribbon |
W=0.4~40 |
T=0.03~2.9mm |
|
OhmAlloy142BS |
Strip |
W=8~250mm |
T=0.1~3.0 |
|
OhmAlloy142BF |
Foil |
W=6~120mm |
T=0.003~0.1 |
|
OhmAlloy142BB |
Bar |
Dia=8~100mm |
L=50~1000 |
