1.5mm Thickness 0Cr18Al2 FeCrAl Alloy For Locomotive Braking Resistor

1.5mm Thickness 0Cr18Al2 FeCrAl Alloy For Locomotive Braking Resistor
1.5mm Thickness 0Cr18Al2 FeCrAl Alloy For Locomotive Braking Resistor

Large Image :  1.5mm Thickness 0Cr18Al2 FeCrAl Alloy For Locomotive Braking Resistor Get Best Price

Product Details:
Place of Origin: jiangshu
Brand Name: Ohmalloy/OEM
Certification: CCC,ROHS
Model Number: OhmAlloy100
Payment & Shipping Terms:
Minimum Order Quantity: 20KG
Packaging Details: Plastic packing inside, wooden box outside , choose the suitable packing, Alos it can be customized by the clients' demand.
Delivery Time: 8-15 working days after payment
Payment Terms: L/C, T/T, , MoneyGram,paypal
Supply Ability: 50 Tons per month
Detailed Product Description
Product Name: 0Cr18Al2 Strip Max Operating Temperature: 950 Degree Celsius
Magnetic Properties: Non-magnetic Status: Hard/half Hard/soft
Width: 0.3-300mm Thickness: 0.5mm To 1.5mm
High Light:

0Cr18Al2 FeCrAl Alloy

,

1.5mm Thickness FeCrAl Alloy

,

Locomotive Braking Resistor FeCrAl Alloy

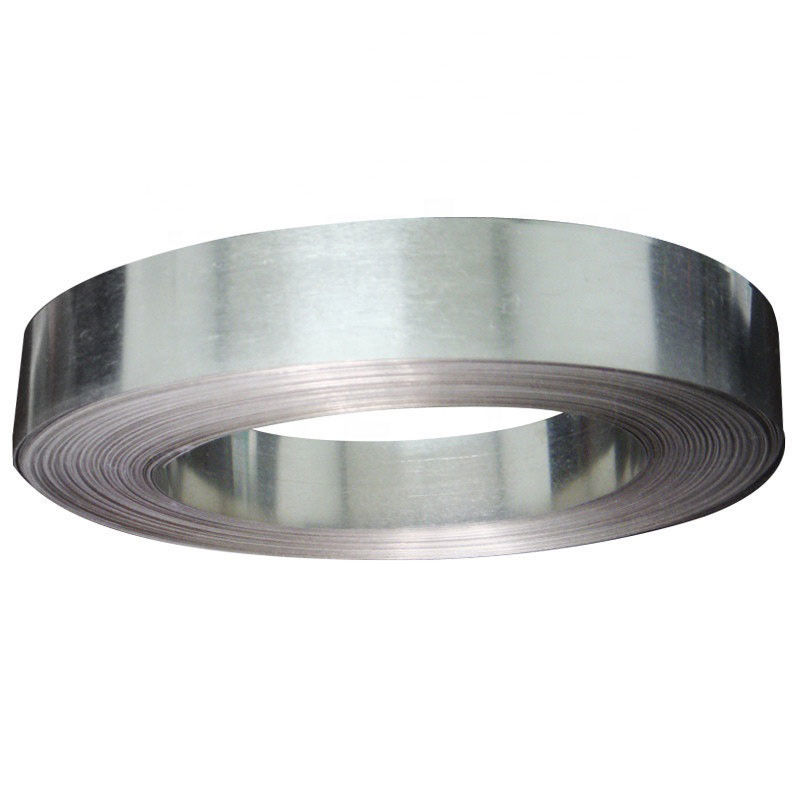

0.5mm to 1.5mm thickness 0Cr18Al2 strip for locomotive braking resistor ​



OhmAlloy100
(Common Name: 0Cr18Al2, 18 SR, 1Cr18Al2)

OhmAlloy100 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 950℃

Typical applications for OhmAlloy100 are used in dynamic braking resistor, baffle plate, industrial ovens.



Normal Composition(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.50 Max 1.0 17-18 Max 0.10 1.5-2.0 Bal. /



Density (g/cm3) 7.45
Electrical resistivity at 20℃(Ωmm2/m) 1.0
Conductivity coefficient at 20℃ (WmK) 13
Tensile Strength(Mpa) 637-784
Elongation 30%
Hardness(Hv) 200-260
Section Variation Shrink Rate 65-75%
Repeatedly Bend Frequency Min 5 times



Melting point (℃) 1500
Max continuous operating temperature in air (℃) 950
Magnetic properties magnetic


Style of supply

Alloys Name Type Dimension
OhmAlloy100W Wire D=0.03mm~8mm
OhmAlloy100R Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy100S Strip W=8~250mm T=0.1~3.0
OhmAlloy100F Foil W=6~120mm T=0.003~0.1
OhmAlloy100B Bar Dia=8~100mm L=50~1000


Package

1.5mm Thickness 0Cr18Al2 FeCrAl Alloy For Locomotive Braking Resistor 0

1.5mm Thickness 0Cr18Al2 FeCrAl Alloy For Locomotive Braking Resistor 1

FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
