| Conductor Material: | Nichrome | Type: | MI Heating Cable |
|---|---|---|---|
| Application: | Heating | Conductor Type: | Solid |
| Insulation Material: | MgO Or Al2O3, Inconel 600 | Color: | Silver |
| Jacket: | Inconel 600 | Surface: | Bright |
| High Light: | Mineral Insulated Resistance Wire,Inconel 600 Insulated Resistance Wire,MI Heating Insulated Resistance Wire |
||

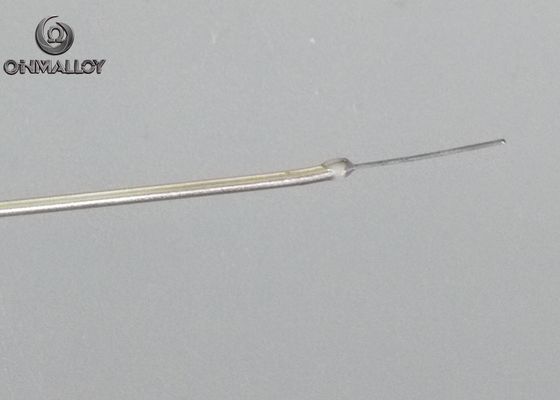

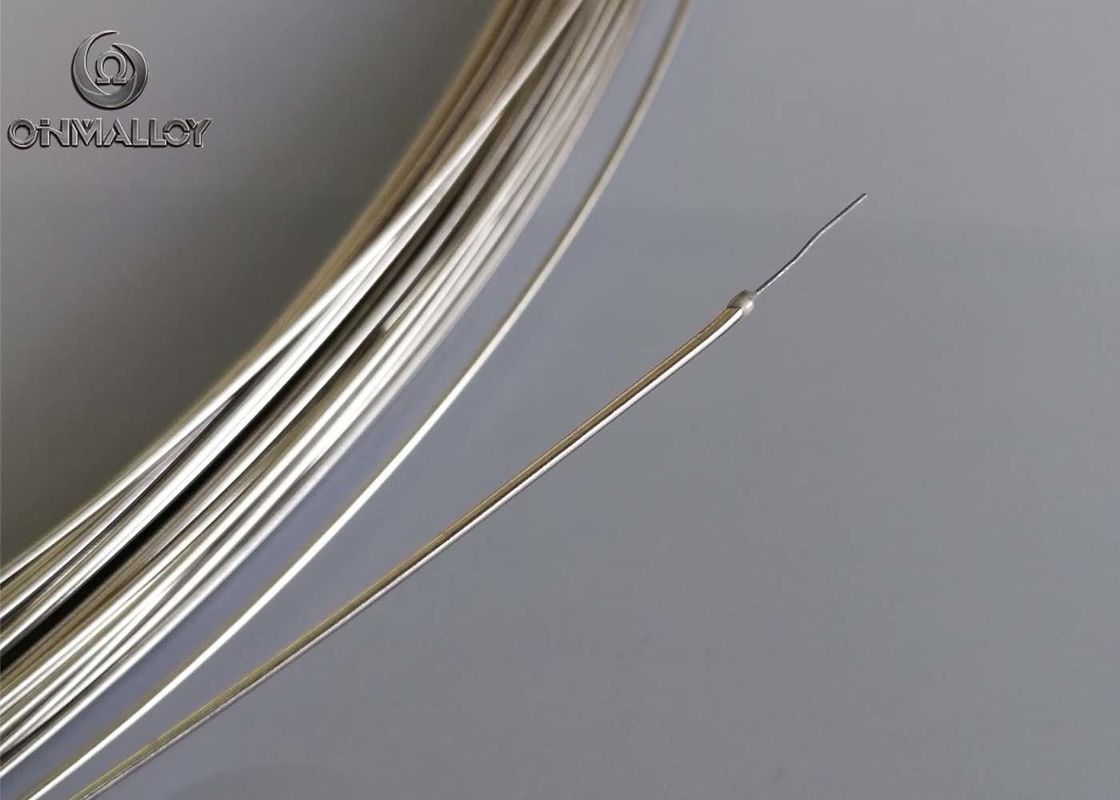

(MI) Mineral Insulated Heating Cables
MI Cable is Mineral Insulated semi-rigid electric resistance wire heating cable. The resistance wire heating element is electrically insulated using Magnesium Oxide (Mineral) to ensure safe electrical insulation with maximum thermal transfer. The mineral insulation is then encapsulated in a metal sheath for extreme durability and environmental protection. MI cable is a durable and long lasting heating cable that is capable of heating to very high temperatures. MI cable can be used in both ordinary and hazardous locations/areas and is versatile enough that it can be used for a wide range of surface heating and radiant heating applications.
Structure:
| No. | structure | Material | Function |
| 1 | Single or multiple conductors | NiCr80/20, Copper, CuNi23, Constantan | Heating elements |
| 2 | First insulation | Magnesium oxide insulation | Mgo provides insulation of the resistance wire for voltage up to 593℃. |
| 3 | Inner jacket | Metal sheath (Copper, SS310, SS316, SS321, Inconel 600, Inconel 625) | This alloy has excellent resistance to pitting , chloride-stress, acid and alkali corrosion. |
| 4 | Outer jacket | High-density polyethylene jacket | For corrosive environments or extra ruggedness when embedded in concrete. |
Custom made units as per exact requirements.
Specification:
| Maximum exposure temperature | Nominal voltage | Ingress Protection Rating |
| 1000℃ | 230V | IP67 (waterproof) |
Product Highlights
· High temperature capability
· High-watt density
· High corrosion resistance
· Laser welded sleeves provide superior reliability
· Durable design for use in harsh environments
· Custom sizes available to meet your exact specifications
Application:
· Tanks and Vessels
· Power generation hoppers
· Pipe tracing
· Containers and drums
· Valves, flanges, metal tubes
· Radiant heaters
· Furnaces
· Floodgate heating
· Reactors
· Plate heating
· Pump heating
· Continuous heating ovens
Protection tube material
| Stainless steel series | SS304, SS310, SS321, SS316 |
| Inconel series | Inconel 600, Inconel 625 |
| Copper series | Pure copper |
| High temp alloy | GH3030, GH3039 |

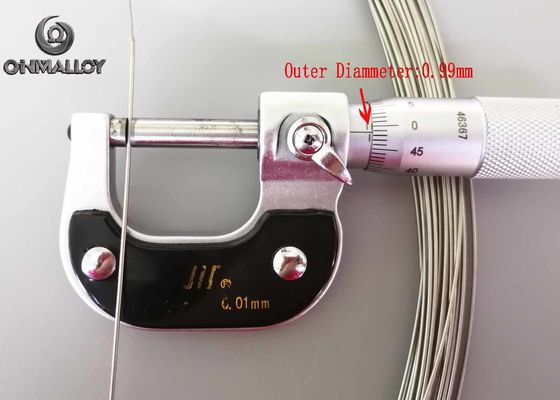

OD of cable: 1mm to 8mm
Resistance value: As per client’s request.
Application of the heating cable:
Tanks and Vessels; Power generation hoppers;Pipe tracing; Containers and drums
Valves, flanges, metal tubes
Radiant heaters
Furnaces; Floodgate heating Reactors; Plate heating
Pump heating; Continuous heating ovens
