Product Details:
Payment & Shipping Terms:
|
| Application: | Electrical Equipment | Conductor Type: | Solid |
|---|---|---|---|
| Insulation Material: | PVC | Temperature Range: | 0~1100(℃) |
| Usage: | Connecting With Thermocouple And Instrument Machine | Color: | As Per Customers Request |
| Theory: | Thermocouple Sensor | Insulation: | PVC |
| High Light: | PVC Insulation Extension Thermocouple Cable,Electrical Equipment Extension Thermocouple Cable,Solid Conductor Extension Thermocouple Cable |
||

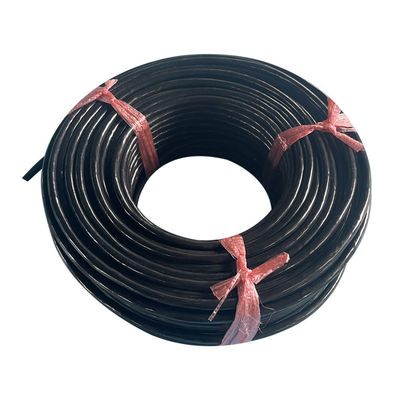

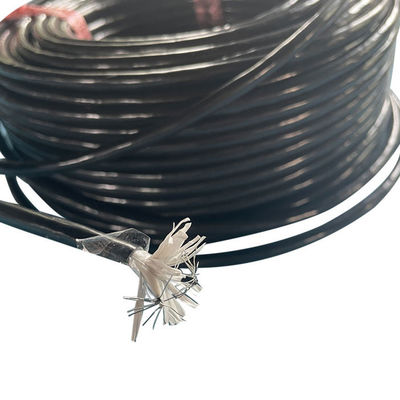

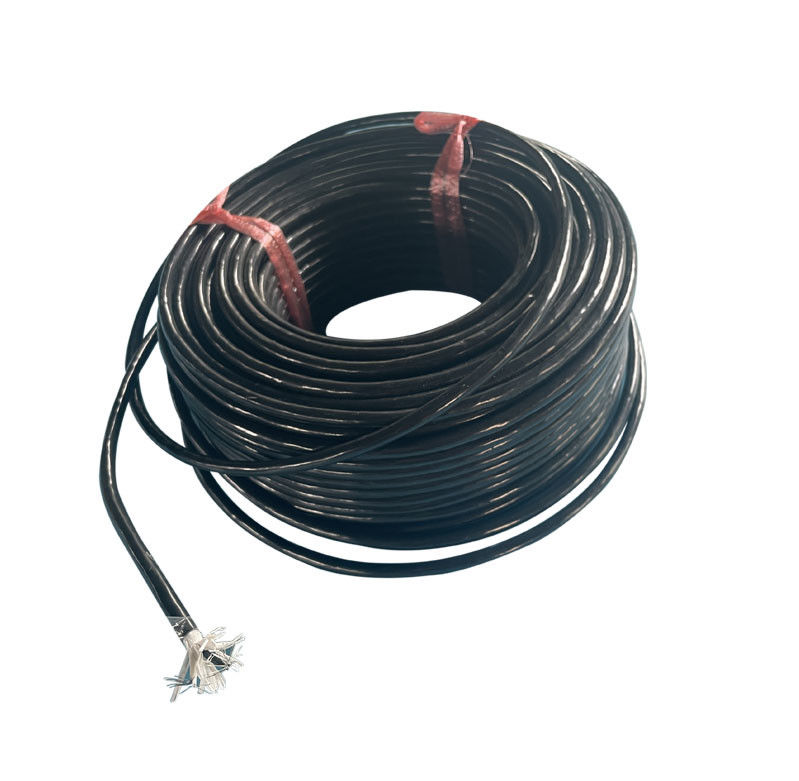

J-SR-SR-0.35R round shape thermocouple extension cable
Specification
|
Product name |
Issuing Date |
Drawing no. |
Version |
||||
|
Type J cable |
2021/6/11 |
J-FP-FP-0.35R |
A/1 |
||||
|
Item |
|
Size |
0.2*11mm/2 |
Short Temp |
250℃ |
Voltage |
600V |
|
Long Temp |
200℃ |
||||||
|
Spec |
Unit |
Standard requirement |
|||||
|
Conductor |
Conductor structure |
N/mm |
0.2*11mm/2 |
||||
|
Conductor material |
Positive leg (+) |
JP (Fe100%) |
|||||
|
Negative leg(-) |
JN (CuNi45) |
||||||
|
Conductor Grade |
—— |
Class Ⅱ (Extension Grade) |
|||||
|
Insulation |
Material |
—— |
FEP 200℃ |
||||
|
Insulation thickness |
mm |
0.6+/-0.05 |
|||||
|
Min thickness |
mm |
0.55 |
|||||
|
OD of each core |
mm |
2.1 |
|||||
|
Color |
Positive leg(+) |
Black (IEC color code) |
|||||
|
Negative leg(-) |
White (IEC color code) |
||||||
|
Jacket |
Material |
—— |
FEP 200℃ |
||||
|
Thickness |
—— |
0.7+/-0.05mm- |
|||||
|

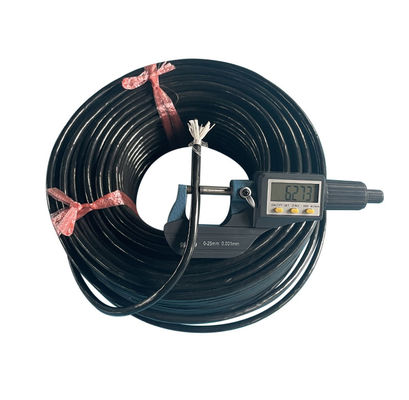

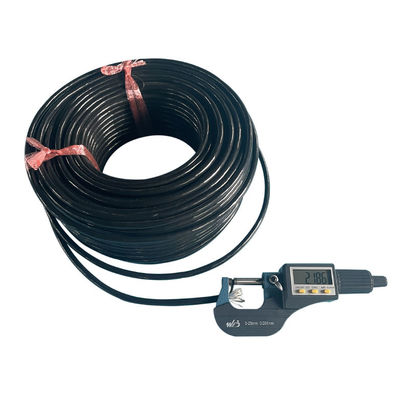

OD of whole cable |
—— |
6.2mm |
|||||
|
Color of jacket |
—— |
Black (IEC color code) |
|||||
|
Package |
Spool |
m/roll |
500 |
||||
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
