| Tyep: | Fixed Resistors | Rated Power: | 3W |
|---|---|---|---|
| Resistance: | 47ohm | Craft: | Wirewound Fuse Resistor |
| High Light: | Wound Resistor Inductive Wire,Heat Resistance Inductive Wire,Solderable Inductive Wire |
||

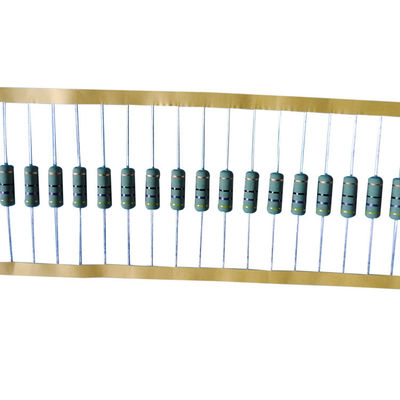

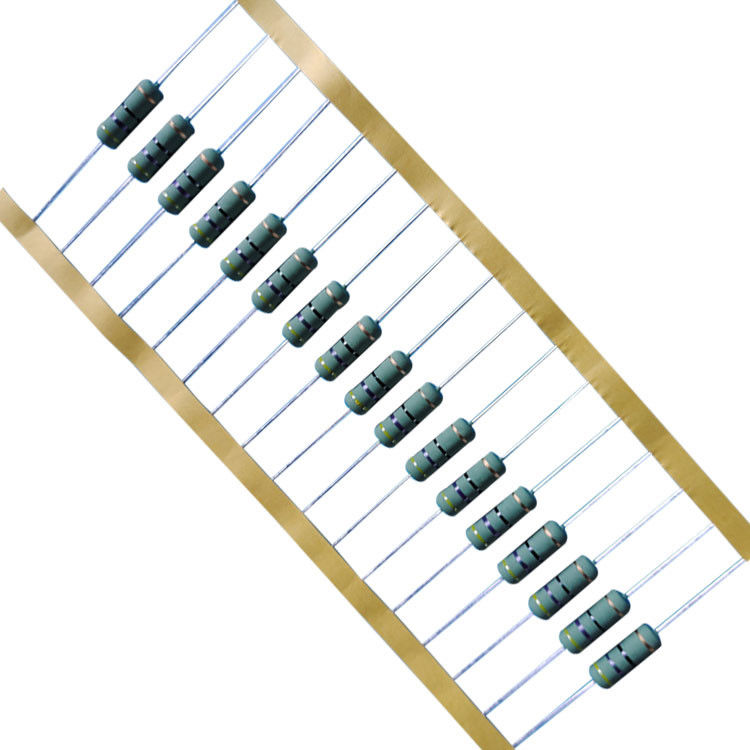

KNP-3W-47-5X155 Inductive WireWound resistor, KNP series, 3W, 47ohm, 5%
Dimension
| Dimension(mm) | L | ΦD | l | Φd CU |
| Value | 15±1 | 5±0.5 | ≥28 | 0.68±0.05 |
Rated Value
| Style | RX21 |
| Rated Power | 3W |
| Derating Curve | |
| Rated Voltage | |
| Maximum Voltage | 350V |
| Maximum Overload Voltage | 500V |
| Tolerance | J(±5%) |
| Resistance Range | 47R |
| Operating Temperature Range | -55℃ ~ +155℃ |
Performance
| Description | Performance Requirements | Test Method | |
|
Resistance Temperature Coefficient |
T.C.R. ±350ppm/℃ |
Test temperature +20℃/-55℃/+20℃/+125℃/+20℃ |
|
| Short-time Overload |
ΔR≤±1%R No visible damage,Markings legible |
2.5 times rated voltage or maximum overload voltage (the lower) 5 seconds | |
| Wiith Standing Voltage | No flasheover or breakdown | AC 500V 1 minute | |
| Terminal Strength | Pulled |
ΔR≤±1%R+0.05R No visible damage |
Φd 0.68mm;Load 10N 10s |
| Winded | Φd 0.68mm;Load 10N 900 | ||
| Twisted | 3600 in opposite direction | ||
| Resistance to Vibration |
ΔR≤±1%+0.05R No visible damage |
10~500Hz 3 direction 2 hours each |
|
| Solder-heat Resistance |
ΔR≤±1%R Marks legible, |
350℃ 2mm from the body,3 seconds |
|
| Solderability | At least 95% of the dipping surface must be covered by new solder, no flaws gathered. | 235℃ 2mm from the body, 2 seconds |
|
| Temperature Cycle |
ΔR≤±1%R+0.05R No visible damage |
-55/+155℃ for 5 cycles | |
| Humidity |
ΔR≤±5%R+0.05R No visible damage |
40℃ 95%RH 1344 hours |
|
| Load Life |
ΔR≤±5%R+0.05R No visible damage, marks legible |
rated voltage or maximum voltage,1.5 hours on, 0.5 hours off, 70 centigrade temperature 1000 hours | |
