Product Details:
Payment & Shipping Terms:
|
| Material: | Pump And Valve | Shape: | Wire |
|---|---|---|---|
| Chemical Composition: | Cu,Ni,Fe | Elongation (≥ %): | 35 % |
| Tensile Strength Rm N/mm²: | 480 | Application: | Pump And Valve |
| High Light: | Bright Soft Monel 400 Wire,0.25mm Ni Based Alloy,Anti Corrosion Ni Based Alloy |
||

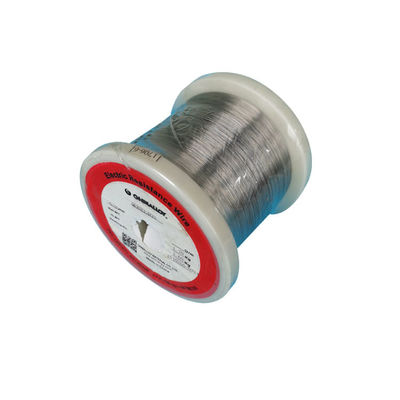

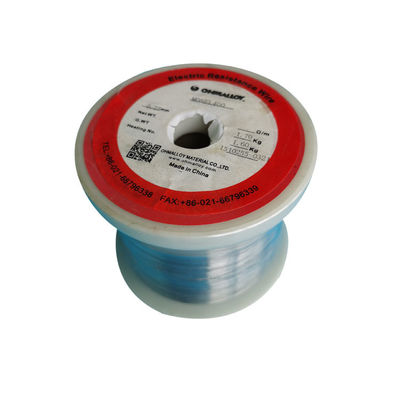

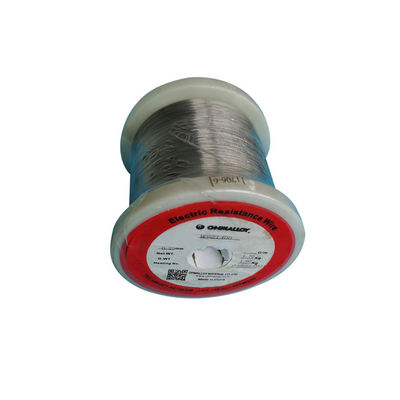

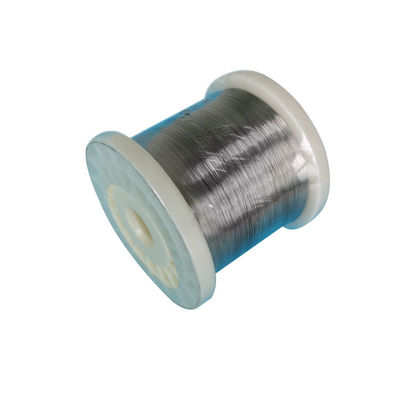

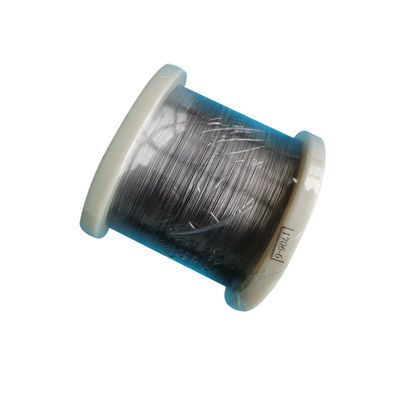

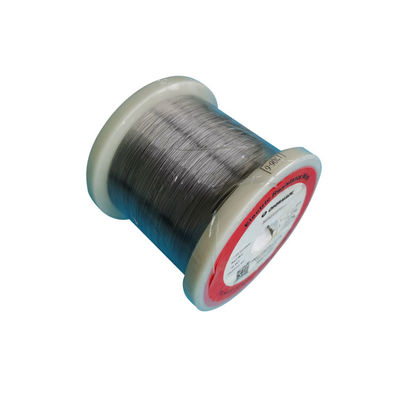

0.25mm bright and soft Monel 400 wire Ni-based alloy wire
Monel is a group of nickel alloys, primarily composed of nickel and copper, with small amounts of iron, manganese, carbon, and silicon. Monel have a good ability on anti-corrssion, especially can be used in seawater. Also the Monel is easy to be fabricated, it can be hot- and cold-working, machining as well as good welding ability.
* OHMALLOY can make the monel 400 wire from dia 0.05mm to 8mm. The rod diameter from 8mm to 200mm.
| Trade Name |
ASTM/AISI Alloy type |
UNS | Chemical composition(%) | ||||||
| Cu | Al | Ti | Fe | Mn | Si | Ni | |||
| Monel 400 | B 127, B 164 |
N04400 | 28-34 | 2.5 max | 2.0 max | 63 min | |||
| Monel 401 | N04401 | 28-34 | 2.5 max | 2.0 max | 63 min | ||||
| Monel 404 | N04404 | 28-34 | 2.5 max | 2.0 max | 63 min | ||||
| Monel K-500 | B 865 | N05500 | 27-33 | 2.3-3.15 | 0.35-0.85 | 2.0 max | 1.5 max | 63 min | |
| Monel 405 | B 164 | N04405 | 28-34 | 2.5 max | 2.0 max | 0.5 max | 63 min | ||
Monel 400 alloy is a multi-purpose material in many industrial applications:
1. Seamless water pipe in the power factory
2. Sea-water exchanger and evaporator
3. Sulfuric acid and hydrochloric acid environment
4. Crude distillation
5. Sea-water in the use of equipment and propeller shaft
6. Nuclear industry and used in the manufacture of uranium enrichment isotope separation equipment
7. Manufacturing hydrochloric acid equipment used in the production of pump and valve.
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
