| Resistivity: | 1.45μΩ.m | Shape: | Wire |
|---|---|---|---|
| Surface: | Bright | Application: | Household Appliances Industry |
| Density: | 7.1 (g/cm3) | Enamelled: | Available |
| Working Temperature: | 1350℃ | Tensile Strength: | 725 Mpa |
| Yeild Strength: | 550 Mpa | ||
| High Light: | Alloy 835 FeCrAl Alloy,Cr21Al6Nb Furnace Ribbon Heating Element,Furnace Ribbon Iron Chrome Alloy |
||

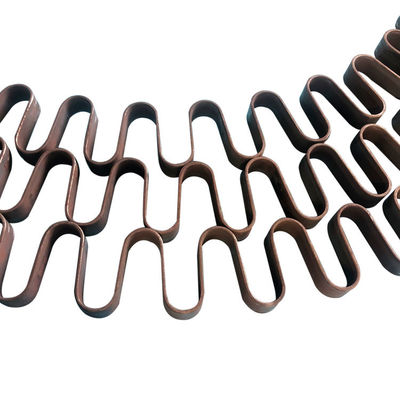

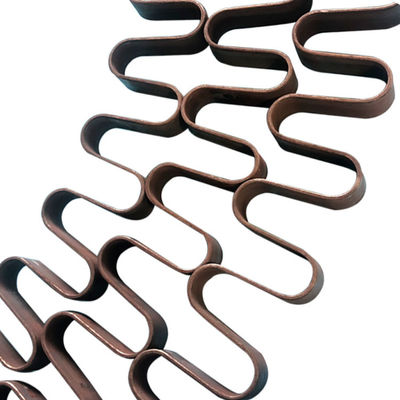

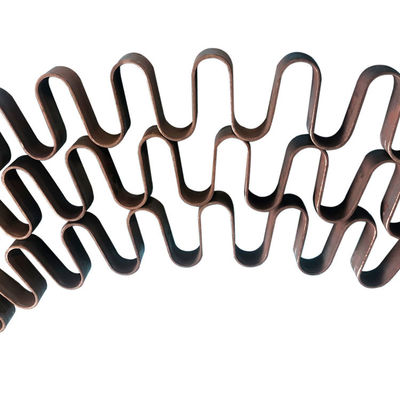

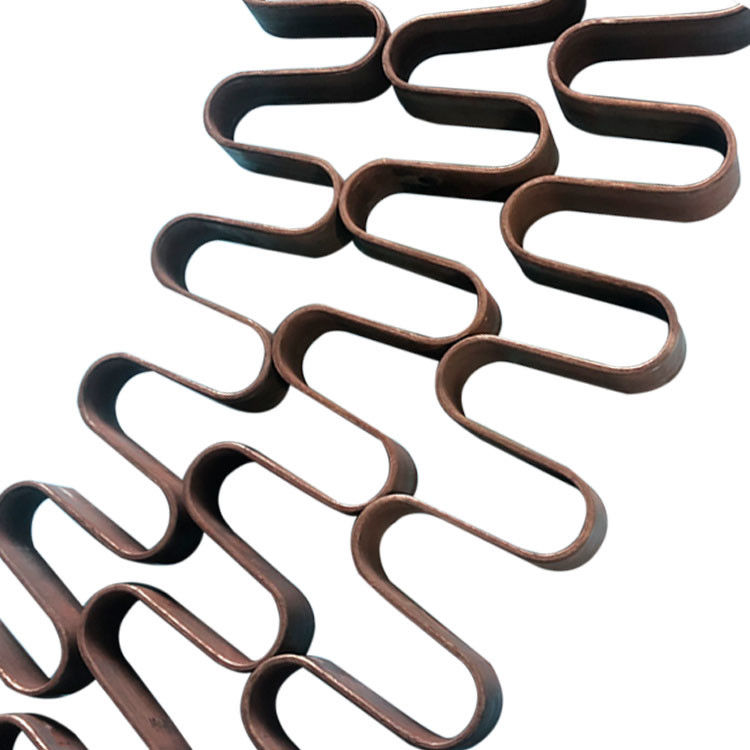

Alloy 835/Cr21Al6Nb furnace ribbon heating element Iron chrome alloy flat wire
Typical applications for OhmAlloy145 are used in industrial electric furnace, household electrical appliance and far infrared ray device.
OhmAlloy145 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.
Like nichrome, fecral has a excellent resistance to oxidation. At a high temperature environment, thermodynamically stable aluminum oxide will be formed on the surface of fecral alloy. The diffusion rate D at 1200 C is 10-16cm2/sec.
By comparing with nichrome alloys, fecral has a higher resistance and maximum operating temperature which is up to 1400 C. Fecral also has a cheap raw material and lower density. It will save budget. In addition, fecral has a higher surface load due to the higher maximum temperature and longer life. It also has a better resistance to sulphur in hot state.
| Physical & Mechanical Properties (at room temperature) | |||||
| Alloy |
Density g/cm3 |
Melting Point °C |
Electrical Resistivity at20°C (μΩ-cm) | Elongation% |
Maximum Operating Temp of Heating Element ℃ |
| 1Cr13A14 | 7.40 | 1450 | 125 | 15 | 950 |
| 0Cr21A14 | 7.35 | 1500 | 123 | 14 | 1100 |
| 0Cr23AI5 | 7.25 | 1500 | 135 | 12 | 1250 |
| 0Cr25AI5 | 7.10 | 1500 | 142 | 16 | 1350 |
| 0Cr21AI6 | 7.16 | 1500 | 142 | ||
| 0Cr21AI6Nb | 7.10 | 1510 | 145 | 14 | 1350 |
| 0Cr20AI5Re | 7.10 | 1500 | 145 | 16 | 1400 |
| 0Cr27AI7Mo | 7.10 | 1520 | 153 | >10 |
1400 |
