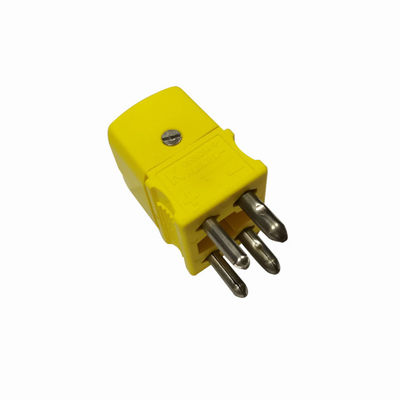

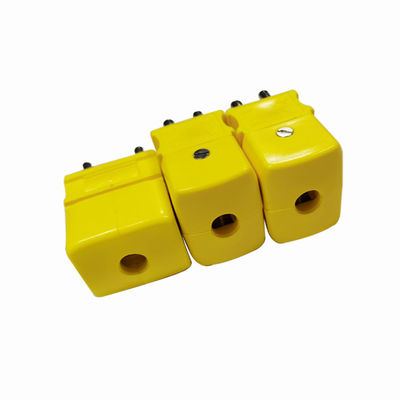

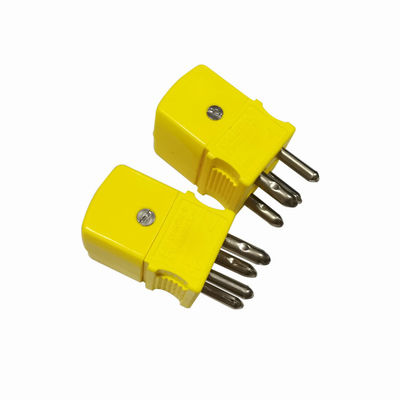

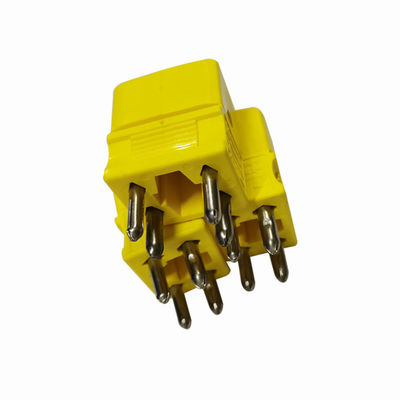

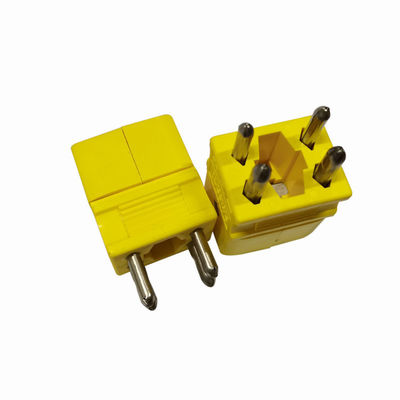

4 Hollow PIN K Type Dual Thermocouple Connector Glass Filled Nylon Plug Socket

4 Hollow PIN K Type Dual Thermocouple Connector Glass Filled Nylon Plug Socket

Product brief introduction

Thermocouple has various forms and shapes. They are made of a variety of diameters, lengths, sheath materials, combinations of the above materials, lead length, and the like.

The most common shape is a beads and probes. The bead-shaped thermocouple is very cheap and has a very fast response time. The probe can measure temperature in the market, such as industrial, medical, science, food and other different applications. The connector used by the probe is equipped with a circular pin called a standard connector or a flat pin called a microconger.

When any application of the thermocouple should be considered, the temperature range to be measured, the required response time, accuracy, and the surrounding environment should be considered. According to the existing conditions, the appropriate material combination and the correct shape of the thermocouple can be selected.

Th

Thermocouple Connector Know-How

Thermocouple connectors are an accurate and convenient method of interconnecting temperature sensing components. Use these connectors to form a chain from the measuring tip of the temperature sensor to the host or instrument. It is important that all components in the chain are made of the same thermocouple material to prevent any change or distortion of the original signal. To achieve this, the pins of the thermocouple connector are made of the same material as the thermocouple used to connect or compensate the material. The thermocouple type is clearly printed on the connector housing and is also marked with colors for easy identification. Open the connector, and then use two fixing screw clips to simply tighten the thermocouple wire in place. The miniature thermocouple plug connector can then be inserted into the mating miniature thermocouple socket connector.

Features and benefits
• The pins are made of real thermocouple alloy or compensation material, which can realize accurate signal transmission
• IEC color coding for quick and easy identification
• Polar flat pin contact, accurate connection
• Made of sturdy glass-filled thermoplastic
• Can withstand high temperatures of 220 ° C
• For multi-strand or solid wire
• Accept thermocouple cables with a diameter of up to 4mm
• Simple external screw clamp connection for quick assembly
• Polarity and thermocouple type are clearly marked on the housing
