Product Details:
Payment & Shipping Terms:
|
Name: | PTC Thermistor Alloy Wire | Material: | NiFe Ferronickel |
---|---|---|---|
Application: | Thermistor Resistance | Supply Shape: | Wire |
Highlight: | Ferronickel PTC Alloy Wire,NiFe PTC Alloy Wire,Thermistor Resistance PTC Alloy Wire |

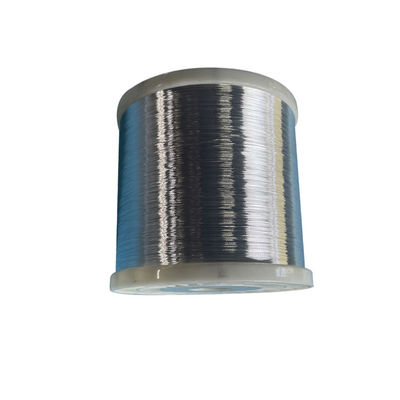

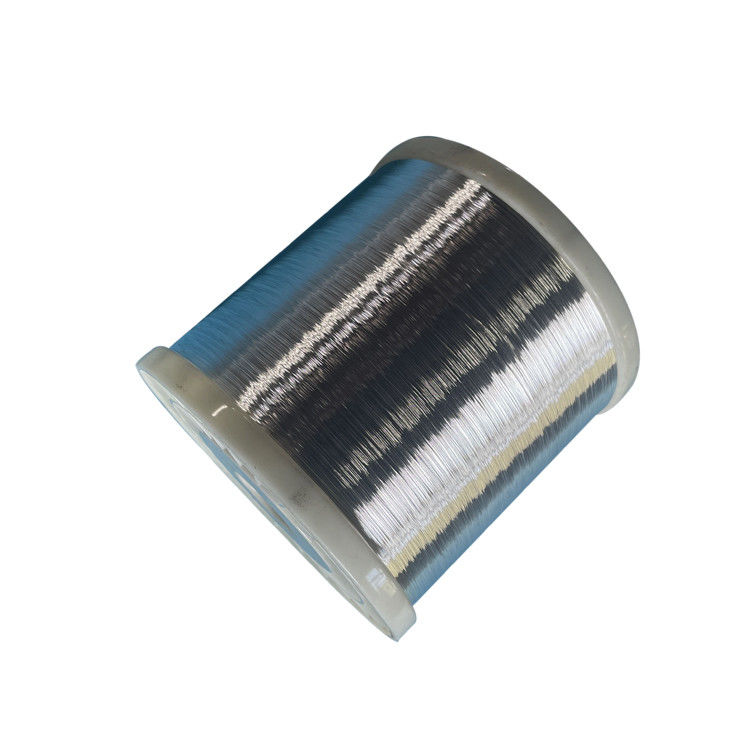

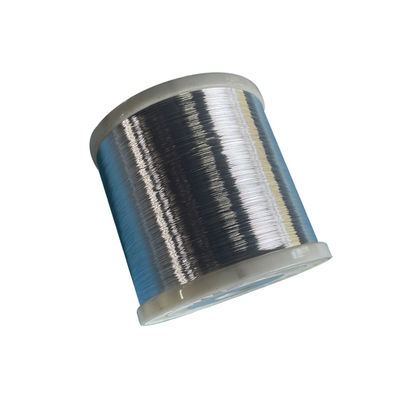

China NiFe ferronickel P-4500 PTC alloy wire for thermistor resistance
We can produce many kinds of PTC resistance wire.
If you have special requirements on the temperature coefficient of resistance and diameter, please feel free to let us know.
While you order 0.15mm dia, if you want the resistivity 0.23 and the PPM is 4650, you can write NF23-0.15-4650. Then we will know what exact you like and will quote you accordingly.
Alloy brand | 20℃ resistivity | Tolerance range |
NF13 | 0.13 | ±0.02 |
NF15 | 0.15 | ±0.02 |
NF20 | 0.20 | ±0.02 |
NF23 | 0.23 | ±0.02 |
NF25 | 0.25 | ±0.02 |
NF32 | 0.32 | ±0.02 |
NF36 | 0.36 | ±0.02 |
NF38 | 0.38 | ±0.02 |
NF40 | 0.40 | ±0.02 |
NF43 | 0.43 | ±0.02 |
NF46 | 0.46 | ±0.02 |
NF52 | 0.52 | ±0.02 |
NF60 | 0.60 |
±0.02 |
Alloy wire Item
Item |
Mean temperature coefficient of resistance 10-6/oC |
P-4650 |
4650 |
P-4350 |
4350 |
P-4050 |
4050 |
P-3750 |
3750 |
P-3550 |
3550 |
P-3350 |
3350 |
P-3150 |
3150 |
P-3000 |
3000 |
Alloy wire Chemical composition
Name |
Item |
Chemical composition% |
||
Fe |
Ni |
Mn |
||
Alloy Wire |
P-4650 |
18.0 |
82.0 |
- |
P-4350 |
19.0 |
81.0 |
- |
|
P-4050 |
20.0 |
80.0 |
- |
|
P-3750 |
21.0 |
79.0 |
- |
|
P-3550 |
20.2 |
79.0 |
0.8 |
|
P-3350 |
22.0 |
78.0 |
- |
|
P-3150 |
23.0 |
77.0 |
- |
|
P-3000 |
21.5 |
77.0 |
1.5 |
Alloy wire Resistivity
Item |
Resistivity μΩ·cm |
P-4650 |
0.23 |
P-4350 |
0.25 |
P-4050 |
0.21 |
P-3750 |
0.32 |
P-3550 |
0.29 |
P-3350 |
0.41 |
P-3150 |
0.50 |
P-3000 |
0.37 |
