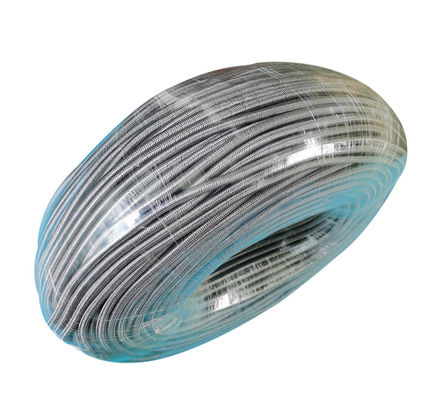

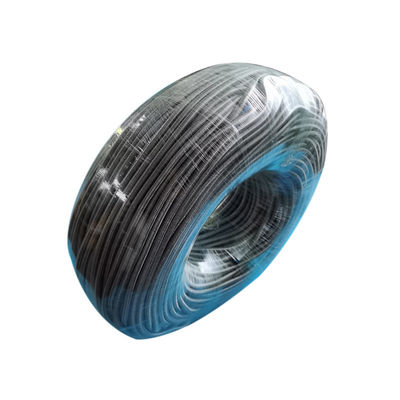

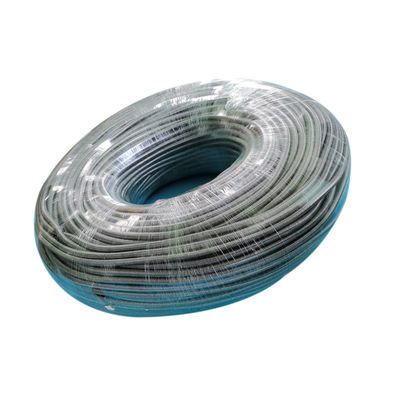

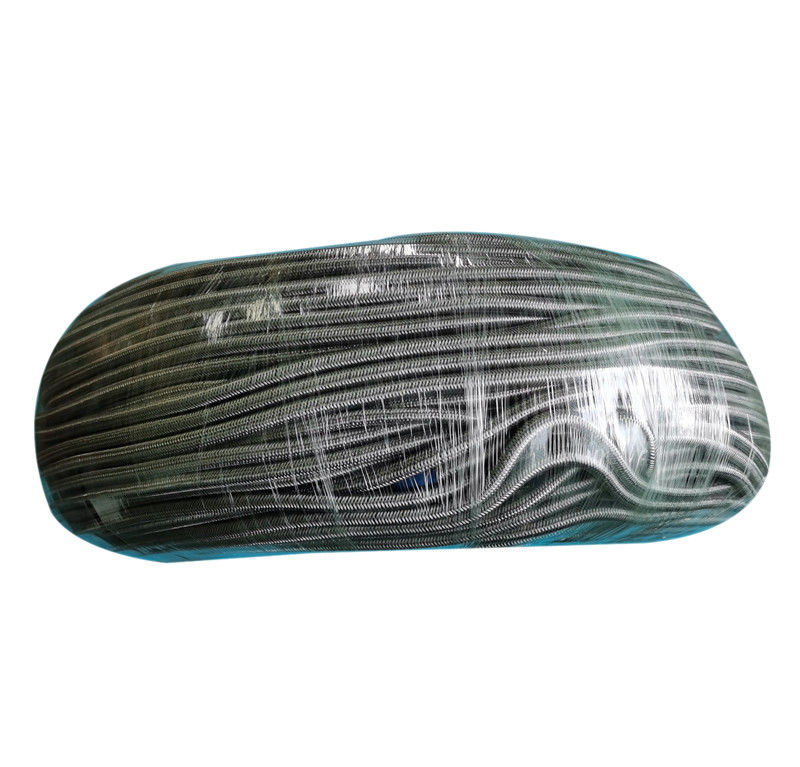

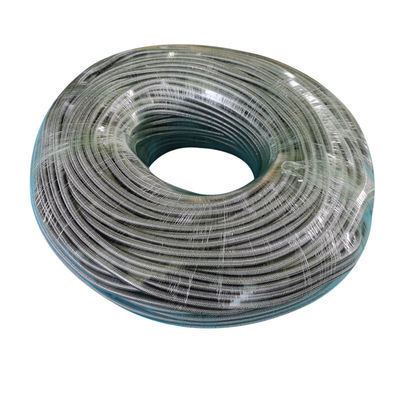

FEP Insulation RTD Extension Thermocouple Wire With SS Shield

FEP Insulation RTD Extension Thermocouple Wire With SS Shield
FEP Insulation RTD Extension Thermocouple Wire With SS Shield
video play

Large Image :  FEP Insulation RTD Extension Thermocouple Wire With SS Shield Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY/OEM
Certification: ISO9001
Model Number: SP-RTD-FB-FB-SS304-0.5R
Payment & Shipping Terms:
Minimum Order Quantity: 100 meter
Packaging Details: Coil style
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, , MoneyGram,Paypal
Supply Ability: 80000 meter per month
Detailed Product Description
Product Name: Type RTD Thermocouple Compensation Wire Model Number: RTD
Shape: Wire Keywords: Type RTD, ANS
Color: Customer's Demands
High Light:

RTD Extension Thermocouple Wire

,

FEP Insulation Thermocouple Wire

,

SS Shield Thermocouple Wire

0.25mm*7 / 3wires RTD Thermocouple extension wire with FEP insulation and SS shield

Specifications:
1.Style:Compensation Wire
2.Thermocouple RTD wire
Thermocouple RTD wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

FEP Insulation RTD Extension Thermocouple Wire With SS Shield 0


Thermocouple variety and index


Thermocouple Variety and Index

Variety

Type

Measurement Range(°C)

NiCr-NiSi

K

-200-1300

NiCr-CuNi

E

-200-900

Fe-CuNi

J

-40-750

Cu-CuNi

T

-200-350

NiCrSi-NiSi

N

-200-1300

NiCr-AuFe0.07

NiCr-AuFe0.07

-270-0


3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+-0.25

Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor
Jacket Temperature Range Standard
Limits
Special
Limits
Iron(+) vs.
Constantan(-)
J White/Red Brown 0°C to +285°C
285°C to +750°C
±2.2°C
± .75%
±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-)
K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C
± 2%
±2.2°C
±2.2°C
± .75%
±1.1°C
± .4%
Copper(+) vs.
Constantan(-)
T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C
± 1.5%
±1°C
± .75%
± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-)
E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C
± 1%
±1.7°C
±1.7°C
± .5%
±1°C
±1°C
± .4%
± .4%


Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor
Jacket Temperature Range Standard
Limits
Special
Limits
Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


PVC-PVC Physical Properties:

Characteristics Insulation Jacket
Abrasion Resistance Good Good
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solder Iron Resistance Poor Poor
Service Temperature 105ºC continuous
150ºC single
105ºC continuous
150ºC single
Flame Test Self-extinguishing Self-extinguishing
