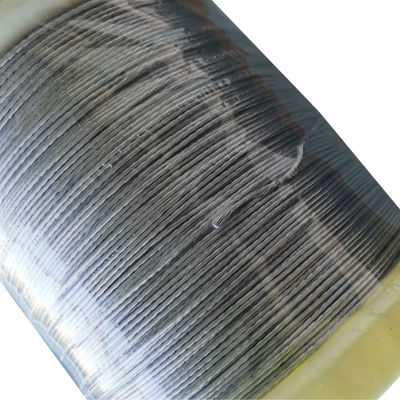

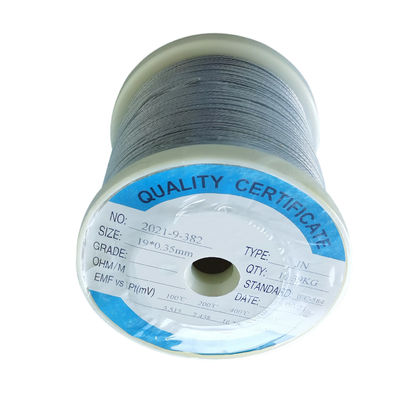

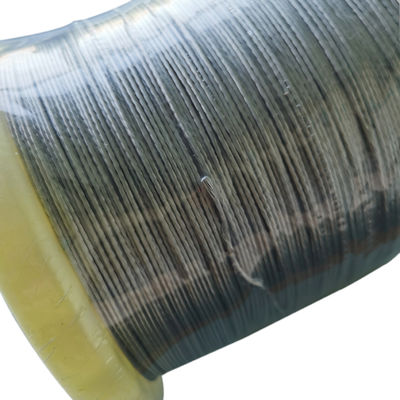

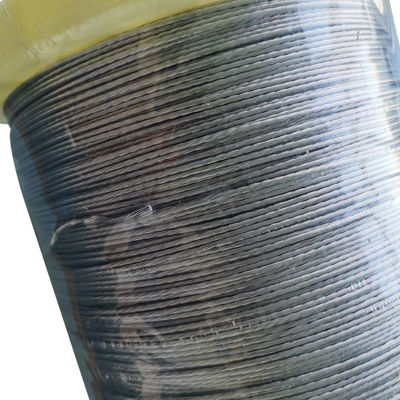

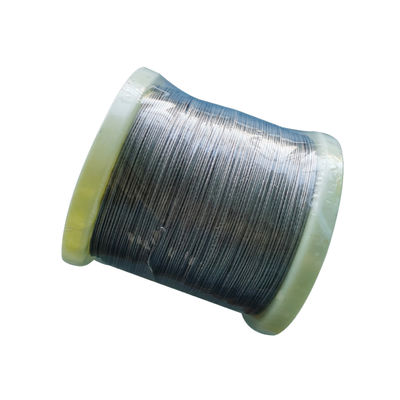

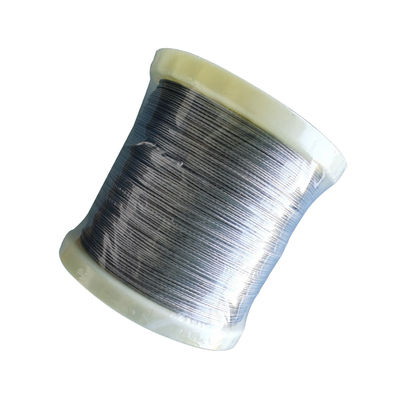

ANSI96.1 Heating J Type Thermocouple Cable With Constantan Conductor

ANSI96.1 Heating J Type Thermocouple Cable With Constantan Conductor
ANSI96.1 Heating J Type Thermocouple Cable With Constantan Conductor
video play

Large Image :  ANSI96.1 Heating J Type Thermocouple Cable With Constantan Conductor Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: Type J
Payment & Shipping Terms:
Minimum Order Quantity: 10KG
Price: negotiable
Packaging Details: spool
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T,
Supply Ability: 10tons/month
Detailed Product Description
Color: Conforms To ANSI, IEC, JIS Standard: ANSI96.1 Or IEC 584-2
Size: 0.35mm*19 Conductor Material: Constantan
Application: Heating
High Light:

Heating J Type Thermocouple Cable

,

ANSI96.1 J Type Thermocouple Cable

,

IEC J Type Thermocouple Cable

0.35mm*19 twist J type thermocouple wire


TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures



1. Chemical Composition

Material Chemical composition (%)
Ni Cu Si Iron Al
JP(Iron)       100
JN(Constantan) 45 55





2. Physical properties and Mechanical properties

Material

Density

(g/cm3)

Melting point () Tensile Strength (Mpa)

Volume resistivity

(μΩ.cm)

Elongation rate (%)
JP(Iron) 7.8 1402 >240 12.0(20) >20
JN(Constantan) 8.8 1220 >390 49.0(20) >25



3. EMF Value range at different temperature

Material EMF value (μV)
100 200 300 400 500 600
JP-JN 5187~5351 10696~10862 16244~16410 21760~21936 27281~27505 32962~33242
EMF value Vs Pt (μV)
700 750 760 800 900 1000
38958~39306 42089~42473 42725~43113



ANSI96.1 Heating J Type Thermocouple Cable With Constantan Conductor 0
