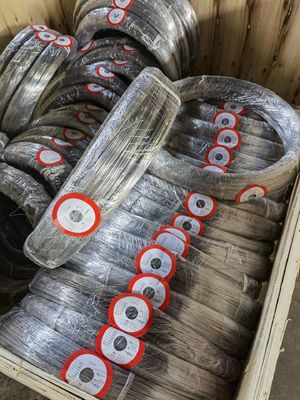

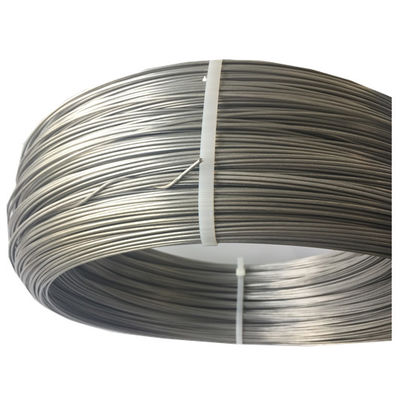

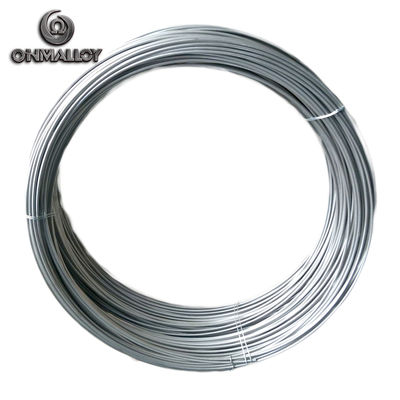

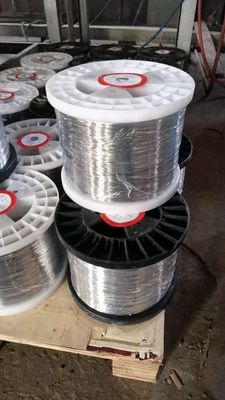

Bright Type NNX NPX Bare Thermocouple Wire For Extension

Bright Type NNX NPX Bare Thermocouple Wire For Extension
Bright Type NNX NPX Bare Thermocouple Wire For Extension Bright Type NNX NPX Bare Thermocouple Wire For Extension Bright Type NNX NPX Bare Thermocouple Wire For Extension Bright Type NNX NPX Bare Thermocouple Wire For Extension

Large Image :  Bright Type NNX NPX Bare Thermocouple Wire For Extension Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY
Certification: ISO 9001:2019
Model Number: SP-NX-BW
Payment & Shipping Terms:
Minimum Order Quantity: 50KG
Packaging Details: Coil+plywood case
Delivery Time: 7-25 working days after payment confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 30 tons per month
Detailed Product Description
Name: Bright Type N NiCrSi NiSiMg NNX NPX Thermocouple Bare Wire Size Range: 0.08-12mm
Wire Surface: Bright Or Oxidized(depends On Diameter) Wire Material: NiCrSi(positive) NiSiMg(negative)
Standard: GBT 4990-2010 EMF Testing Method: Oil Tank
Accuracy: Class 1
High Light:

NPX Bare Thermocouple Wire

,

Bright Type Bare Thermocouple Wire

,

Extension Bare Thermocouple Wire

Bright Type N NiCrSi NiSiMg NNX NPX Thermocouple Bare Wire for Extension Cable



TYPE N (NiCrSi Vs.NiCrMg) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.



1. Chemical Composition



Material Chemical composition (%)
Ni Cr Si Mg Al
NP(NiCrSi) bal 13.7-14.7 1.2-1.6 <0.01
NN(NiCrMg) bal <0.02 4.2-4.6 0.5~1.5



Bright Type NNX NPX Bare Thermocouple Wire For Extension 0

2. Physical properties and Mechnical properties







Material





Density(g/cm3)



Melting point℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

NP(NiCrSi) 8.5 1410 >620 100.0 (20℃) >30
NN(NiCrMg) 8.6 1340 >550 33.0(20℃) >35



3. EMF Value range at different temperature



Material EMF value Vs Pt(μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
NP(NiCrSi) 1755~1813 3910~3976 6313~6383 8880~8959 11552~11654 14307~14433
NN(NiCrMg) 975~1005 1954~1986 2975~3011 4035~4075 5120~5170 6212~6274



EMF value Vs Pt(μV)
700℃ 800℃ 900℃ 1000℃ 1100℃
17129~17275 20010~20178 22951~23139 25943~26149 28972~29194
7288~7362 8318~8402 9281~9373 10159~10261 10948~11060
