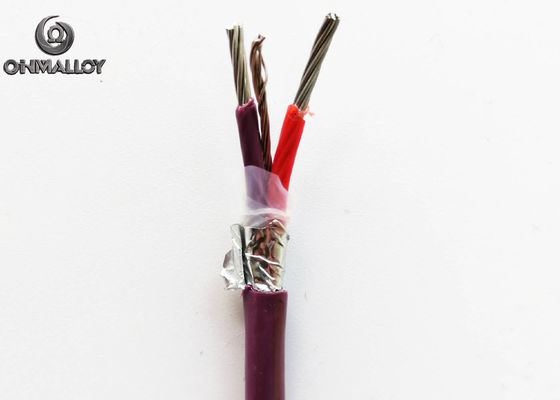

FPA Insulated Type E Extension Thermocouple Cable ANSI

Large Image : FPA Insulated Type E Extension Thermocouple Cable ANSI Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OHMALLOY
Certification:	ISO 9001:2018
Model Number:	SP-EX-FA-AL+D-FA-1.5R

Payment & Shipping Terms:

Minimum Order Quantity:	1000meters
Packaging Details:	Coil+paper carton or coil+plywood case
Delivery Time:	7-25 working days after payment confirmed
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	50000 meter per month

Contact Now

Detailed Product Description

Product Name:	Type E Extension Cable	Conductor Material:	+Chromel(Ni90Cr10) -Constantan(CuNi45)
Conductor Type:	Stranded	Insulation And Jacket:	FPA(260℃)
Color:	ANSI（+Purple，-Red，overall：Purple）	Length:	1000meter/roll
Package:	Coil+Paper Carton
Highlight:	Type E Extension Thermocouple Cable , Sheath FPA Thermocouple Cable , ANSI Oxidizing Thermocouple Cable

TYPE E (CHROMEL vs Constantan) may be used in oxidizing, inert or dry reducing atmospheres, or for short periods of time under vacuum. Must be protected from sulfurous and marginally oxidizing atmospheres. Produces the highest EMF per degree o any standardized thermocouple.

FPA Insulated Type E Extension Thermocouple Cable ANSI 0

Cable Specification

Item Name

Type E Extension Cable

Item Number

EX-FA-AL+D(7/0.3)-FA-0.5R

Conductor Material

+NiCr10 -CuNi45

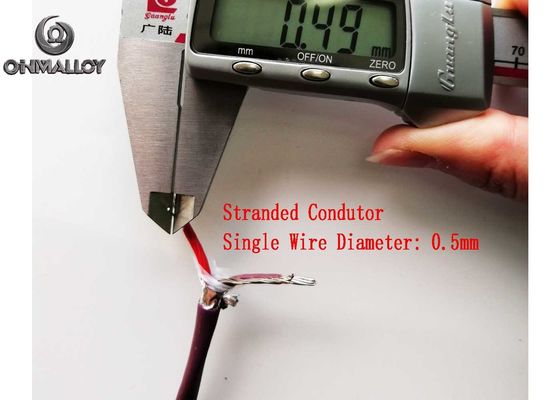

Conductor Dia

7/0.3mm(±0.02mm)

Insulation and Thickness

PFA(, 260℃) 0.25mm

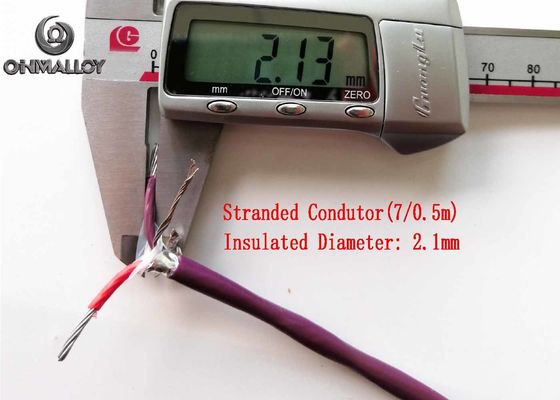

Insulation Diameter

1.3mm(±0.2mm)

Inner Sheath Material

Foil Wrap+ Aluminium Foil Wrap

Drain Wire Size and Material

7/0.3mm Nickel Plated Copper

Jacket Material and Thickness

PFA(, 260℃) 0.3mm

Finished Cable Diameter

3.2mm(±0.3mm)

Weight

32KG/KM

1000Meter

Remark

The dealing price fluctuates according to the quantity.

Type E EMF Value range at different temperature

Material	EMF value Vs Pt(μV)
Material	100℃	200℃	300℃	400℃	500℃	600℃
KP(Chromel)	2769~2859	5921~6019	9272~9374	12709~12819	16144~16282	19537~19699
EN(Constantan)	3499~3561	7389~7513	11647~11779	16109~16255	20699~20885	25362~25588
