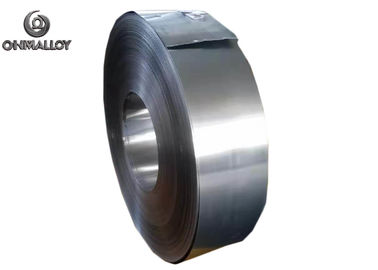

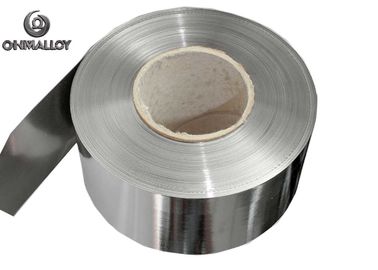

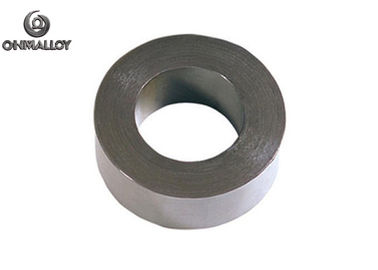

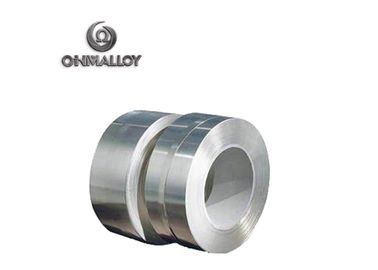

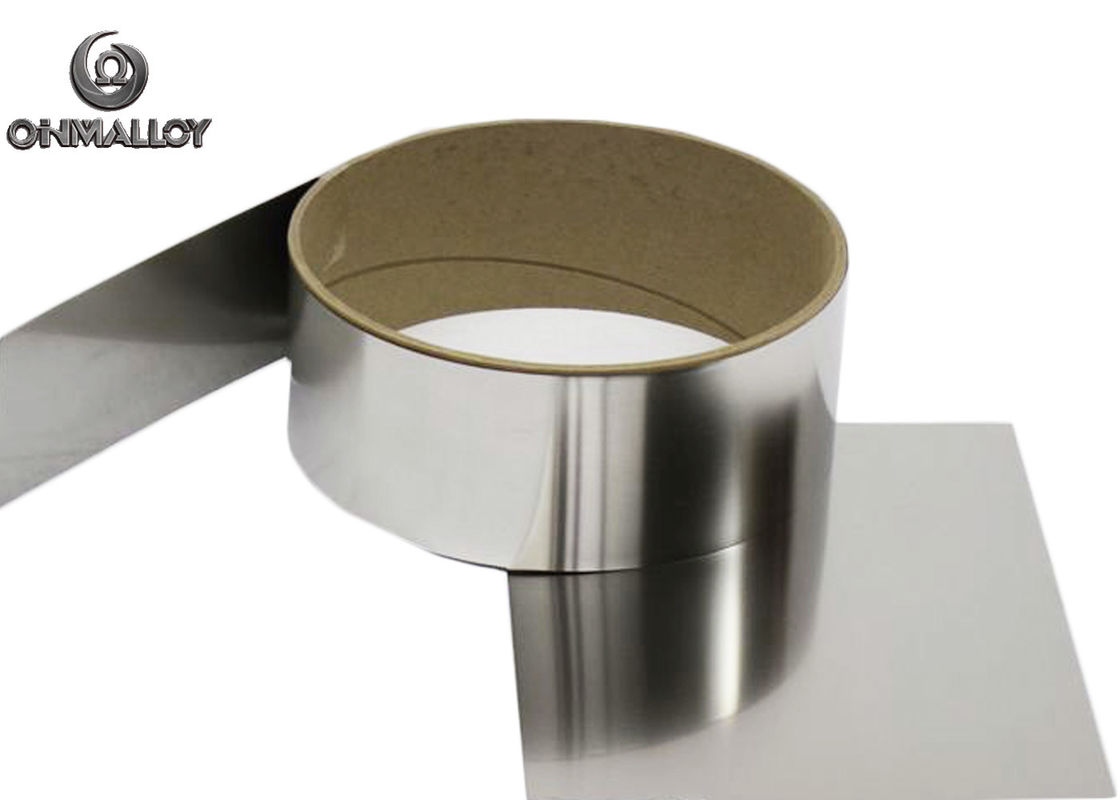

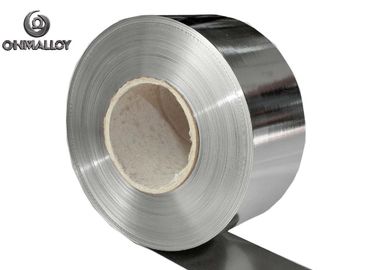

Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface

Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface
Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface

Large Image :  Permalloy 80 Soft Magnetic Alloys 1J79 Kovar Wire Bright Surface Get Best Price

Product Details:
Place of Origin: China
Brand Name: Ohmalloy
Certification: ISO CE
Model Number: 1J79
Payment & Shipping Terms:
Minimum Order Quantity: 300kg
Price: USD 35/kg
Packaging Details: coil
Delivery Time: within 30 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000kg/week
Detailed Product Description
Chemical Composition: Ni Fe Co V Shape: Strip
Application: Used For Soft Magnetic Cores Dimensions: Customzied
Color: Silver White Surface: Bright
Density: 8.2g/cm3 Usage: Soft Magnetic Material
High Light:

1J79 Kovar Wire

,

Permalloy 80 Soft Magnetic Alloys

,

Bright Surface Soft Magnetic Alloys

Product brief introduction



Ohmalloy-1J79 is a nickel–iron magnetic alloy, with about 80% nickel and 20% iron content. Invented in 1914 by physicist Gustav Elmen at Bell Telephone Laboratories, it is notable for its very high magnetic permeability, which makes it useful as a magnetic core material in electrical and electronic equipment, and also in magnetic shielding to block magnetic fields. Commercial permalloy alloys typically have relative permeability of around 100,000, compared to several thousand for ordinary steel.


Normal composition%


Ni 78.5~80.0 Fe Bal. Mn 0.6~1.1 Si 0.3~0.5
Mo 3.8~4.1 Cu ≤0.2
C ≤0.03 P ≤0.02 S ≤0.02


Typical Mechanical properties


Yield strength Tensile Strength Elongation
Mpa Mpa %
980 1030 3~50



The magnetic properties of alloys with high permeability in weak fields
1J79 Initial permeability Maximum permeability Coercivity Saturation magnetic induction intensity

Cold-rolled strip/ sheet.

Thickness, mm

μ0.08/ (mH/m) μm/ (mH/m) Hc/ (A/m) BS/ T
0.01 mm 17.5 87.5 5.6 0.75
0.1~0.19 mm 25.0 162.5 2.4
0.2~0.34 mm 28.0 225.0 1.6
0.35~1.0 mm 30.0 250.0 1.6
1.1~2.5 mm 27.5 225.0 1.6
2.6~3.0 mm 26.3 187.5 2.0
cold drawn wire
0.1 mm 6.3 50 6.4
Bar
8-100 mm 25 100 3.2


Typical Physical properties


Density (g/cm3) 8.6
Electrical resistivity at 20℃(Ωmm2/m) 0.55
Coefficient of linear expansion(20℃~200℃)X10-6/℃ 10.3~11.5
Saturation magnetostriction coefficient λθ/ 10-6 2.0
Curie point Tc/ ℃ 450
