| Type: | Insulated | Application: | Heating |
|---|---|---|---|
| Insulation Material: | PFA | Color: | Customized |
| Size: | 0.43mm*7 | Standard: | GB/T 1234-2012 |
| High Light: | PFA Insulated Constantan Resistance Wire,Heating Constantan Resistance Wire,OD 1.9mm Constantan Resistance Wire |
||

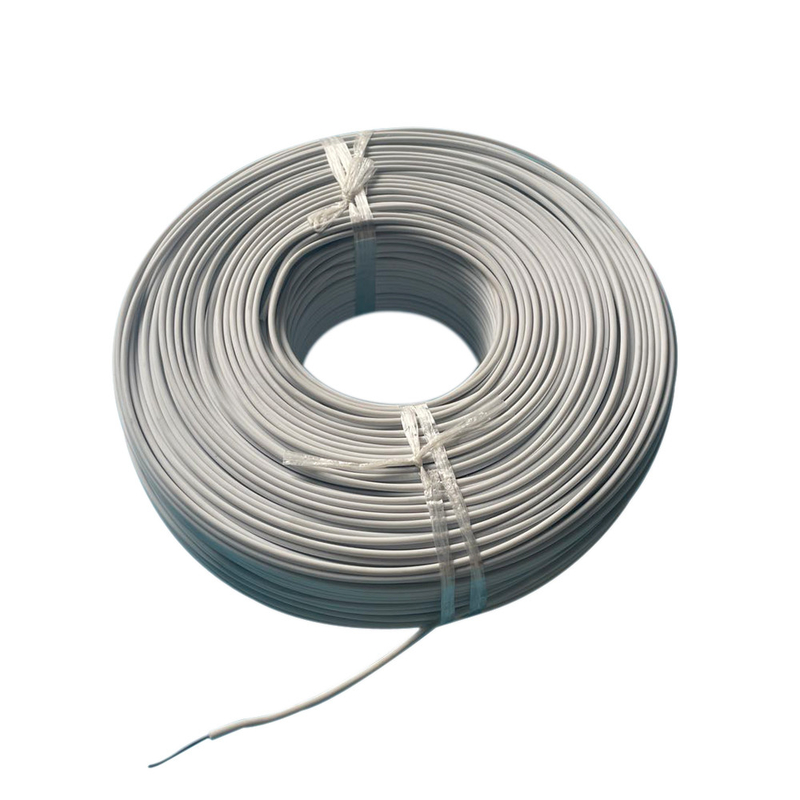

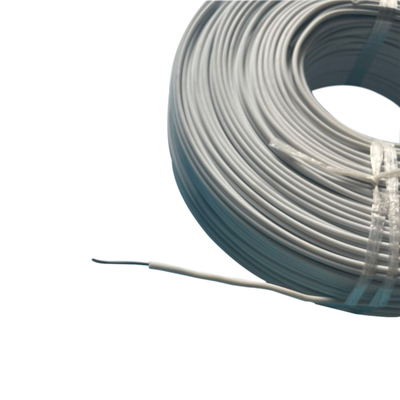

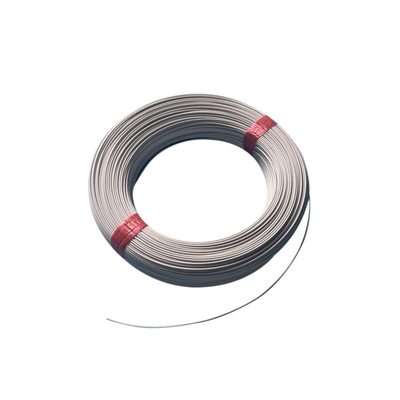

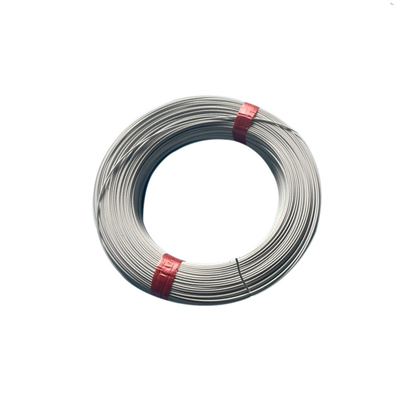

PFA insulated constantan 0.43mm*7 resistance wire
Conductor material: Tin-coated Copper
| Material | Chemical composition (%) | ||||
| Ni | Fe | Cr | Cu | Mn | |
| Copper | 100% | ||||
Heating cable structure
| Conductor size | Tin-coated Copper |
| Insulation layer | teflon/PFA |
| OD of cable | 1.9mm |
| Weight/meter | 0.75kg/100meter |
Insulation material: TEFLON
| Long-term max standing temperature | 200℃ |
| Shor-term max standing temperature | 250℃ |
Insulation material: FEP
| Long-term max standing temperature | 200℃ |
| Shor-term max standing temperature | 250℃ |
Insulation material: PFA
| Long-term max standing temperature | 260℃ |
| Shor-term max standing temperature | 290℃ |
Remarks: The size can be changed if special requirement.
The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm
Available conductor alloy grade as follows:
| NiCr60/15 | CuNi44 | CuNi23 | OCr25Al5 | OCr21Al6 |
| Nickel 200 | Nickel 201 | Nickel 212 | Tinned copper wire | CuNi6 |
| CuNi10 | NiCr35/20 | NiCr AA | Inconel 600 | Inconel 625 |
Available color: Black, white, green, red, yellow, blue
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
