Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Ohmalloy | Model Number: | MI Thermocouple Cable |
|---|---|---|---|
| Conductor Material: | Ni90Cr10/ NiSi | Insulation Material: | MgO |
| Jacket: | N06600 | Application: | Industrial Temp Test |
| Color: | Silver | MOQ: | 100 Meters |
| High Light: | 4.8mm Mineral Insulated Thermocouple Cable,Ni90Cr10 Mineral Insulated Thermocouple Cable,SGS Metal Sheathed Thermocouple Cable |
||

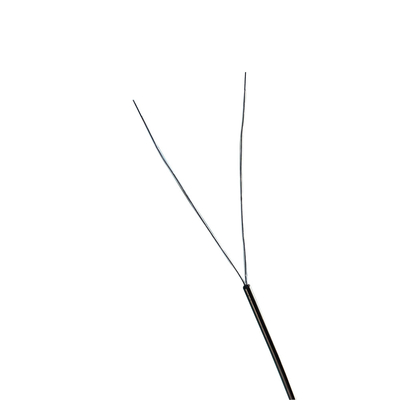

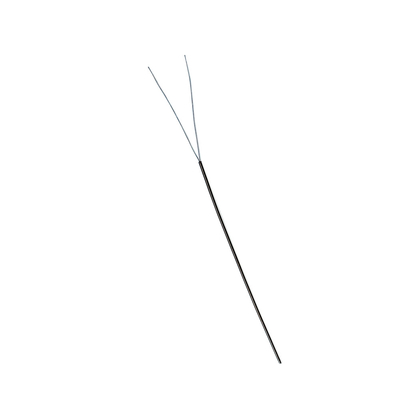

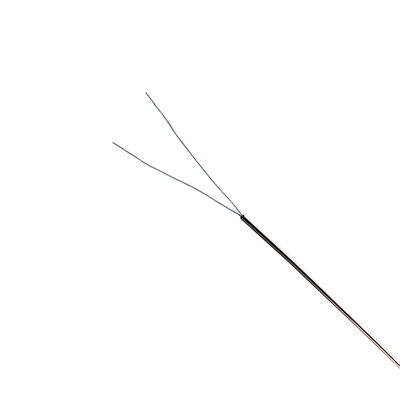

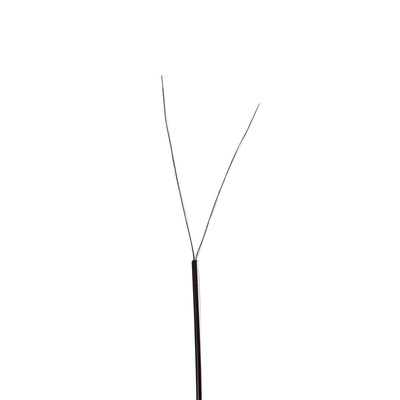

Outer Diameter 4.8mm Mineral Insulated Thermocouple
| Product Name | Mineral insulated metal sheathed thermocouple cable |
| Type | K, J, T, E, R, etc |
| Insulation material | 99.6% high purity MgO |
| Core number | 2 wires, 3wires, 4wires, 6wires |
| Sheath Materials | SS304, SS321,SS316L,SS310S, SS347, INCL600, ETC. |
| Diameter(mm) | From 0.25mm to 12.7mm |
| Application | Connecting with thermocouple and instrument machine |
Structure:
Custom made units as per exact requirements.
|
Ni Cr -Konstantan |
EK | E | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Fe - Konstantan | JK | J | SS304 | 1.0 | 300 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Cu - Konstantan | TK | T | SS304 | 1.0 | -200-100 |
| SS321 | 1.5-3.2 | 100-200 |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
