Product Details:
Payment & Shipping Terms:
|
| Certification: | CE, ISO | Warranty: | 3 Years |
|---|---|---|---|
| Grade: | Type B,type S,type K | Measuring Range: | 0~1800C |
| Customized Support: | OEM, ODM, OBM | Name: | Thermocouple Ceramic Tube |
| High Light: | type k thermocouple extension wire,ceramic type k thermocouple extension wire,M20 thermocouple extension cable type k |
||

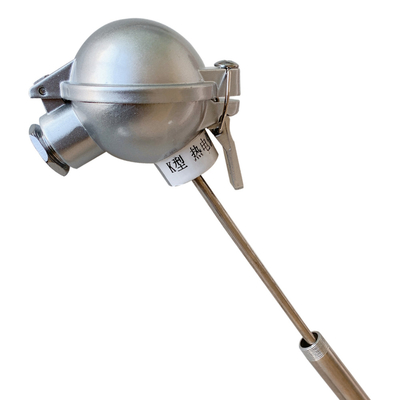

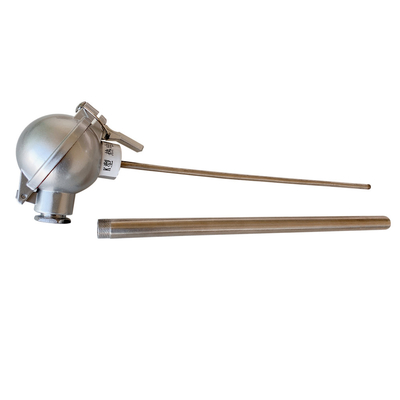

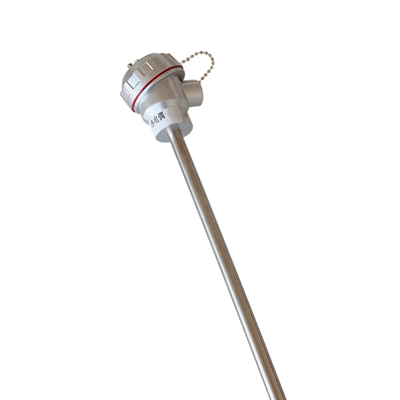

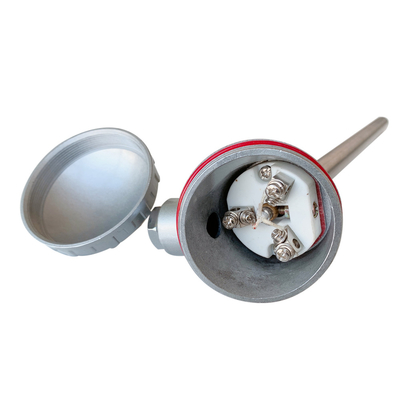

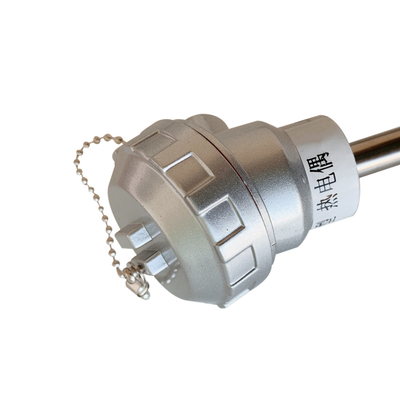

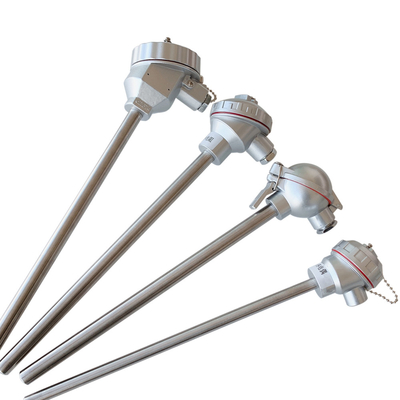

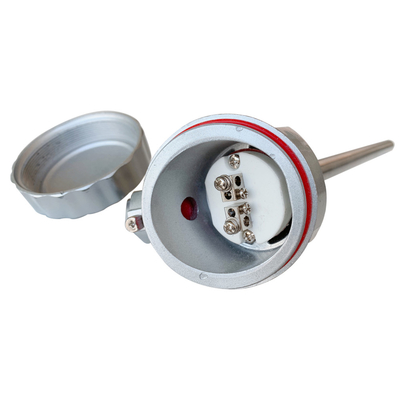

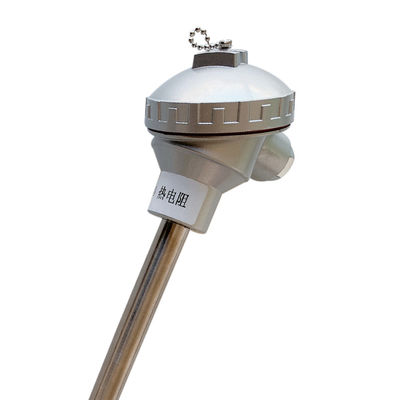

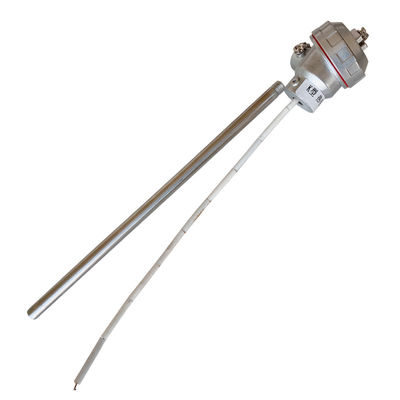

Thermocouple with ceramic tube
Calibration grade
Tolerance: ClassⅠ, Class Ⅱ
Electrical interface:
M20×1.5,M22×1.5,1/2NPT (M30×1.5 and M36×2)
Connector screw
Screw size:M12×1.5,M16×1.5,M27×2,G1/2,G3/4,1/2NPT
(Ceramic protection tube) Thermcouple
| Thermocouple grade | Model | Grade | Temperature range ℃ | Spec | Thermal response time τ 0.5(s) |
|
| OD mm | Protection tube material | |||||
| Simplex type B | WRR-130 | B | 0~1800 | φ16 | Alundum tube | <150 |
| Simplex type B | WRR-131 | B | 0~1800 | φ25 | Alundum tube | <360 |
| Duplex type B | WRR2-130 | B | 0~1800 | φ16 | Alundum tube | <150 |
| Duplex type B | WRR2-131 | B | 0~1800 | φ25 | Alundum tube | <360 |
| Simplex type S | WRP-130 | S | 0~1600 | φ16 | Ceramic | <150 |
| Simplex type S | WRP-131 | S | 0~1600 | φ25 | Ceramic | <360 |
| Duplex type S | WRP2-130 | S | 0~1600 | φ16 | Ceramic | <150 |
| Duplex type S | WRP2-131 | S | 0~1600 | φ25 | Ceramic | <360 |
| Simplex type K | WRN-133 | K | 0~1100 | φ20 | Ceramic | <240 |
| Duplex type K | WRN2-133 | K | 0~1100 | φ20 | Ceramic | <240 |
| Simplex type K | WRN-132 | K | 0~1100 | φ16 | Ceramic | <240 |
Remarks:
1) Non-insertion tube material: SS304 or SS316 or SS310
2) Diaφ25mmtube is double-layer ceramic
3) We also can make the special tube as per customer’s design
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
