Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm

Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm
Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm

Large Image :  Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO ROHS
Model Number: Cr20Ni80
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Price: negotiable
Packaging Details: IN Wooden box
Delivery Time: 7-20days after your deposit received
Payment Terms: , L/C, T/T
Supply Ability: 20000T/Year
Detailed Product Description
Nichrome: 80 Surface: Bright Or Oxidation
Size: 8mm ~ 300mm Power Or Not: Not
Type: Ni-Cr Alloy Craft: Hot Forging
Shape: Rod/Bar
High Light:

8mm Nichrome Alloy Rod

,

Alloy Nichrome Wire Rod

,

Oxidation Alloy Nichrome Bar

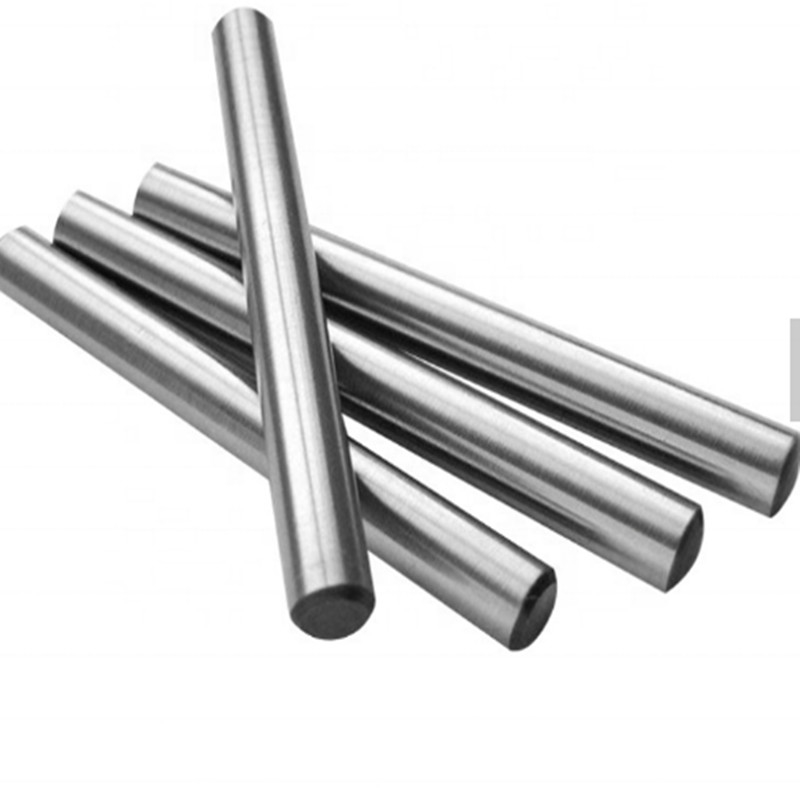

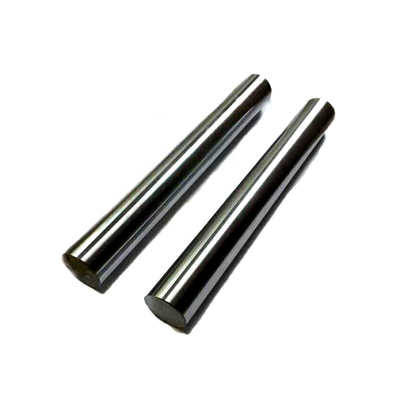

Alloy 20 rod from dia 8mm to 300mm


Product brief introduction



Alloy 20( UNS N08020) is a low-carbon, niobium-stabilized austenitic nickel/iron/chromium alloy with additions of molybdenum and copper. It exhibits exceptional corrosion resistance in chemical environments containing phosphoric acid, nitric acid, chlorides and sulfuric acid. It also has good mechanical properties at both ambient and elevated temperatures.
The following sections will discuss in detail about nickel alloy 20.



Normal composition%


Element Content (%)
Iron, Fe 35
Nickel, Ni 32-38
Chromium, Cr 19-21
Copper, Cu 3-4
Manganese, Mn ≤2
Molybdenum, Mo 2-3
Niobium, Nb ≤1
Silicon, Si ≤1
Carbon, C ≤0.07
Phosphorous, P ≤0.045
Sulfur, S ≤0.035



Physical Properties


Properties Metric
Density 8.05 g/cm3


Mechanical Properties


Properties Metric
Tensile strength (annealed) 620 MPa
Yield strength (annealed) 300 MPa
Elongation at break (annealed) 41%




Thermal Properties


Properties Metric
Thermal expansion co-efficient (@20-100°C/68-212°F) 14.7 µm/m°C
Thermal conductivity 12.3 W/mK


Applications

The following are the list of applications of nickel 205 alloy:
· Production of plastics and synthetic fibers
· Chemical and petroleum processing equipment
· Mixing tanks
· Heat exchangers
· Process piping



Other Designations
Other designations that are equivalent to Alloy 20 include the following:
· ASME SB-462 - SB-464
· ASME SB-468
· ASTM B 462 - B 464
· ASTM B 468
· ASTM B 472 - B 474
· ASTM B 751


Alloy 20 Nichrome Wire Rod Oxidation Surface 8mm 0
