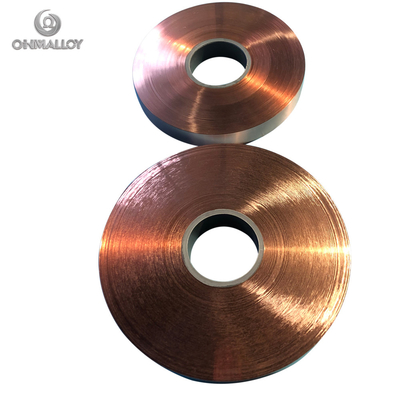

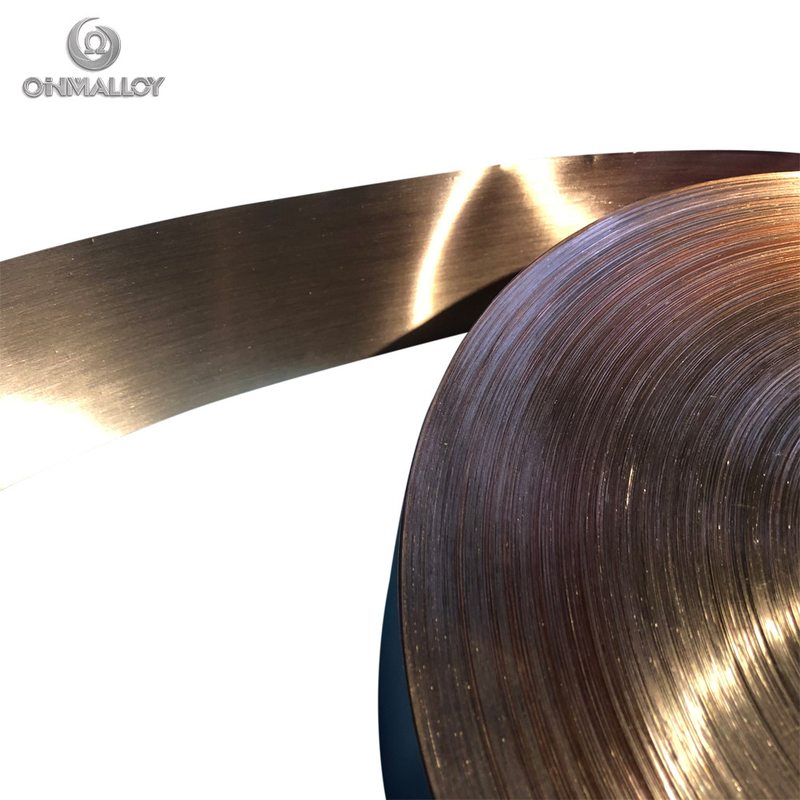

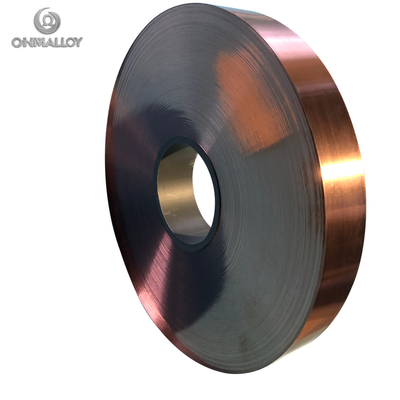

C7025 Copper Alloy Strip High Conductivity 1.0mm Thickness

C7025 Copper Alloy Strip High Conductivity 1.0mm Thickness
C7025 Copper Alloy Strip High Conductivity 1.0mm Thickness
video play

Large Image :  C7025 Copper Alloy Strip High Conductivity 1.0mm Thickness Get Best Price

Product Details:
Place of Origin: China
Brand Name: OHMALLOY
Certification: SGS
Model Number: C7025
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: 30USD/KG
Packaging Details: woodencase
Supply Ability: 50T/Monthes
Detailed Product Description
Type: Strip Thickness: 0.2mm ~ 1.0mm
Application: Industry Material: Copper / Copper Alloy
Shape: Wire Chemical Composition: Ce
High Light:

C7025 Copper Alloy Strip

,

High Conductivity Copper Alloy Strip

,

1.0mm Copper Alloy Plate

C 7025 alloy strip in thickness from 0.2mm to 1.0mm


C7025 (CuNi3SiMg) is a kind of copper alloy with high strength and high conductivity, especially in the later stage of alloy manufacturing process. This effect is like calendering again, which makes the material harder and stronger, and increases the conductivity and elongation at the same time.



Standard:

DIN EN ASTM JIS
CuNi3SiMg CuNi3SiMg C70250 C7025

Chemical composition:
Cu Bal.
Ni 2.2-4.2
Si 0.25-1.2
Mg 0.05-0.3

Foil For Power Copper T2 strip Copper T2 strip Name C1100 Copper CoilPhysical property:

Density(g/cm3) 8.82
Conductivity IACS%(20℃)} 40min
Modulus of elasticity(KN/mm2) 130
Thermal conductivity {W/(m*K)} 190
Coefficient of thermal expansion( 10-6/℃ 20/℃ ~100/℃) 17.3

Status Tensile strength Elongation A50 Hardness
(Rm,MPa) (%) (HV)
R620 620-760 10min 180-220
R650 650-780 7min 200-240
R690 690-800 5min 220-260
R760 760-840 7min 210-250

Available size,side bend, burr
Grade Status Thick(mm) Width(mm)

Side bend

(mm/M)

Burr

(mm)

C70250 R620/ R650/ R690 0.2-1.0 20-620 <2 <0.03
