| Material: | Chromel,Alumel | Insulation: | FEP.PVC. Fiberglass, PTFE, Silicon Rubber,etc. |
|---|---|---|---|
| Diameter: | 24AWG | Color: | ANSI Code, IEC Code, GB/T Standard |
| Shiled: | Fiberglass | Usage: | Thermocouple Cable |
| High Light: | 24AWG Chromel Alumel Thermocouple Wire,Chromel Alumel Thermocouple Wire PTFE,Kapton Insulation Armored Thermocouple Cable |
||

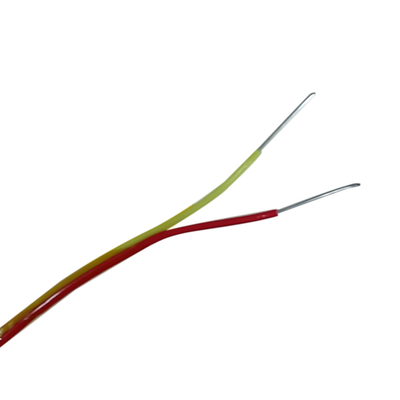

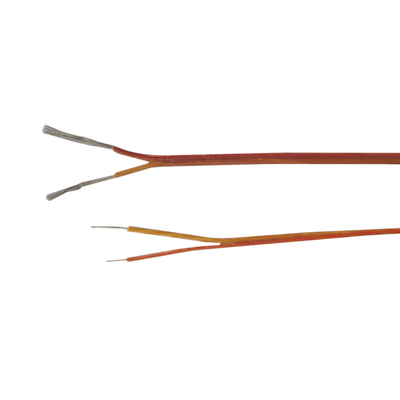

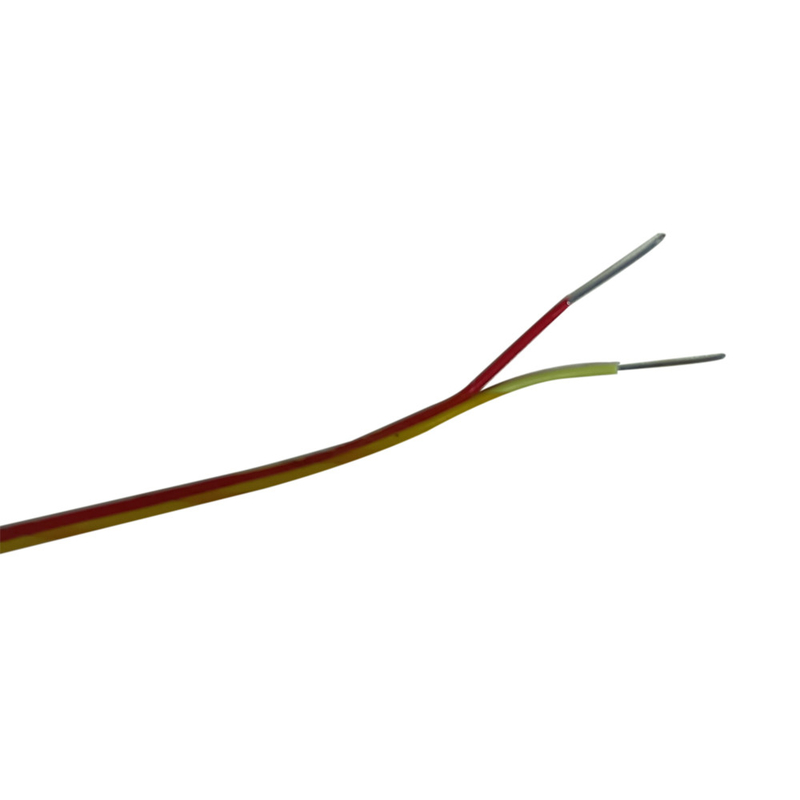

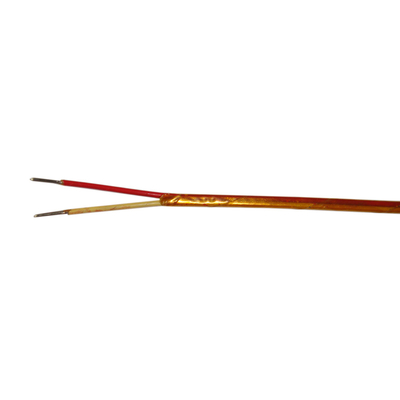

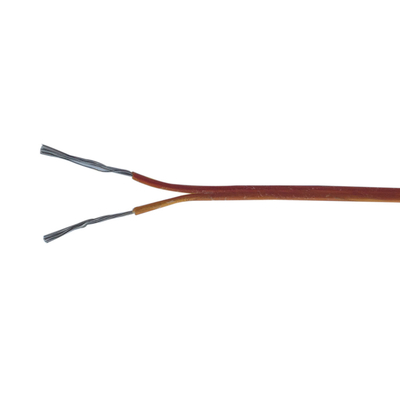

24AWG thermocouple wire with kapton insulation and PTFE
Conductor material:
| Material | Chemical composition(%) | ||||
| Ni | Al | Cr | Si | Mn | |
| Chromel | 90 | 10 | |||
| Alumel | 95 | 1-2 | 1-2 | 0.5-1.5 | |
Structure:
| Conductor size | 0.5mm |
| Resistance value (ohm/m) | PFA |
| Insulation layer | 0.2mm |
| Inner braid shielding | Kapton |
| Out jacket | 0.08mm |
| OD of cable | 1mmX2mm |
| Weight/meter | 0.85kg/100meter |
Working Temperature
| Long-term max standing temperature | 260℃ |
| Shor-term max standing temperature | 300℃ |
Calibration tolerance:+/-1.1 ℃ or +/-0.4%
Color code: ANSI 96.1 or IEC 584-2
* Remarks: The size can be changed if special requirement.
The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm
