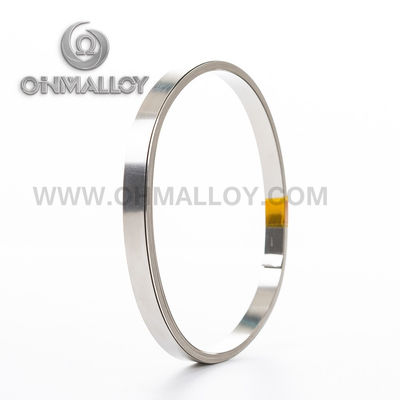

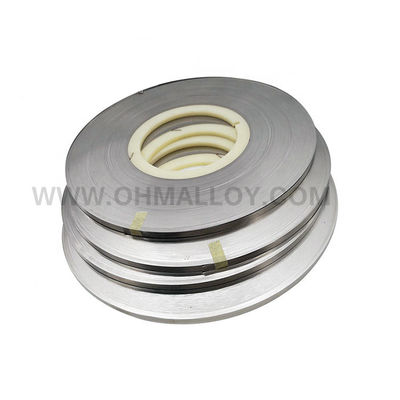

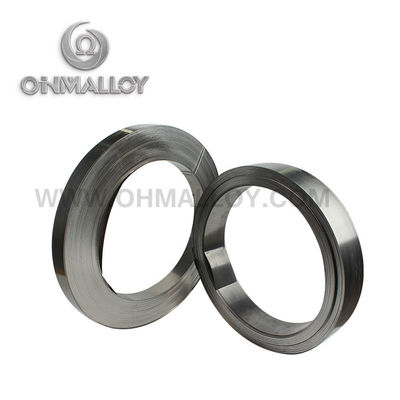

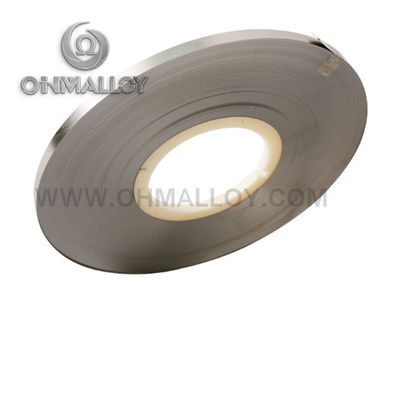

CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube

I'm Online Chat Now
Certification
China Ohmalloy Material Co.,Ltd certification
China Ohmalloy Material Co.,Ltd certification
I search for Nichrome plate long time, and successfully bought it from Ohmalloy material. OHMALLOY provide real good service in alloy service and can always help me in finding the correct resistance alloy.

—— Mike Harness

OHMALLOY can provie me only 1kg Kovar alloy wire 1.0mm with short time, that is really amazing. Thanks

—— Janey

Really professional in thermocouple wire and cable, what i want just can get from OHMALLOY

—— Chris

Enamelled Constantan 0.08mm, i never expect to get only 2kg of it. But OHMALLOY supply it to me with good quality. God Jesus! Such a reliable supplier from china

—— Aaron

CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube

CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube
CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube

Large Image :  CuNi30 Nichrome Alloy Strip C71500 0.7mm For Marine Tube Get Best Price

Product Details:
Place of Origin: China
Brand Name: ohmalloy
Certification: ISO CE
Model Number: C71500
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: USD8.23/kg-USD9.5/kg
Packaging Details: plywood case
Delivery Time: 15 workdays
Payment Terms: L/C, T/T,
Supply Ability: 10000kg/week
Detailed Product Description
Shape: Tube Application: Marine Tube
Chemical Composition: Ni,Fe,Cu Dimensions: 100mm
Color: Sliver Or Polish Surface: Bright & Smooth
High Light:

Marine Tube Nichrome Alloy Strip

,

CuNi30 Nichrome Strip

,

0.7mm Copper Alloy Strip

CuNi30 alloy strip C71500 0.5mm thick 0.7mm thick 200mm width


Cupronickel is a copper-based alloy with nickel as the main addition element which has good mechanical properties and corrosion resistance. Its color is silver white with metallic luster.


Its good ductility, high hardness, corrosion resistance and deep drawing performance is widely used in shipbuilding, petrochemical, electrical appliances, instruments, medical devices, daily necessities, handicrafts and other fields. It is also an important resistance and thermocouple alloy.


Iron-cupronickel: BFe5-1.5(Fe)-0.5(Mn), Bfe10-1(Fe)-1(Mn), Bfe30-1(Fe)-1(Mn). The addition of iron in Iron-cupronickel does not exceed 2% to prevent corrosion and cracking. Its characteristics are high strength, corrosion resistance, especially the ability to resist corrosion in mobile seawater.



Brand Chemical Composition (%)
Cu Ni+Co Fe Mn Pb P S C Si Zn Sn others
C71500 bal. 29.0-33.0 0.40-1.0 1 0.05 - - - - 1 - 2.5
C7150 bal. 29.0-33.0 0.40-1.0 0.2-1.0 0.02 - - - - 0.5 - -
BFe30-1-1 bal. 29.0-32.0 0.5-1.0 0.5-1.2 0.02 0.006 0.01 0.05 0.15 0.3 0.03 0.7





Product Brand State Size(mm) Length (mm), Max.
OD Thickness
Drawn tube B30-1-1 M,Y2 8~80 0.8~8 OD≤50 L1000~7000
OD>50 L500~6000

Condenser and

Heat Transformer

tube

B30-1-1 M,Y2 8~76 0.8~4.5 <15000
Extruded tube B30-1-1 R 80-100 10~25 500~3000





State

Tensile strength

Rm/ (N/mm2)

Elongation

A/ % min

Hardness HV HB
M ≥370 35 135 130
Y2 ≥480 12 85~120

80~115
