Product Details:
Payment & Shipping Terms:
|
| Type: | Strip | HV（Soft）: | <130 |
|---|---|---|---|
| Aging Process: | Available | Density: | 8.25 |
| Aging Temperature: | 260~426 | Thermal Expansion Coefficient (μm /m.k): | 16.7 |
| Liquidus Temperature (℃): | 980 | Be: | 1.8~2.1 |
| High Light: | Tin Pure Copper Strip,Pure Copper Strip ETP,Cu Copper Alloy Wire |
||

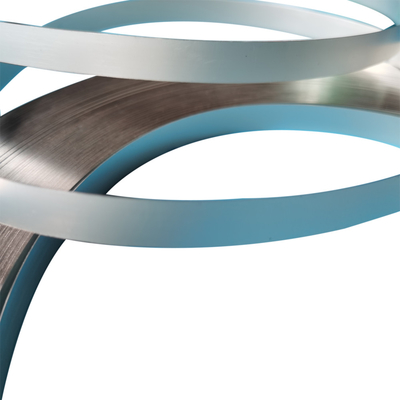

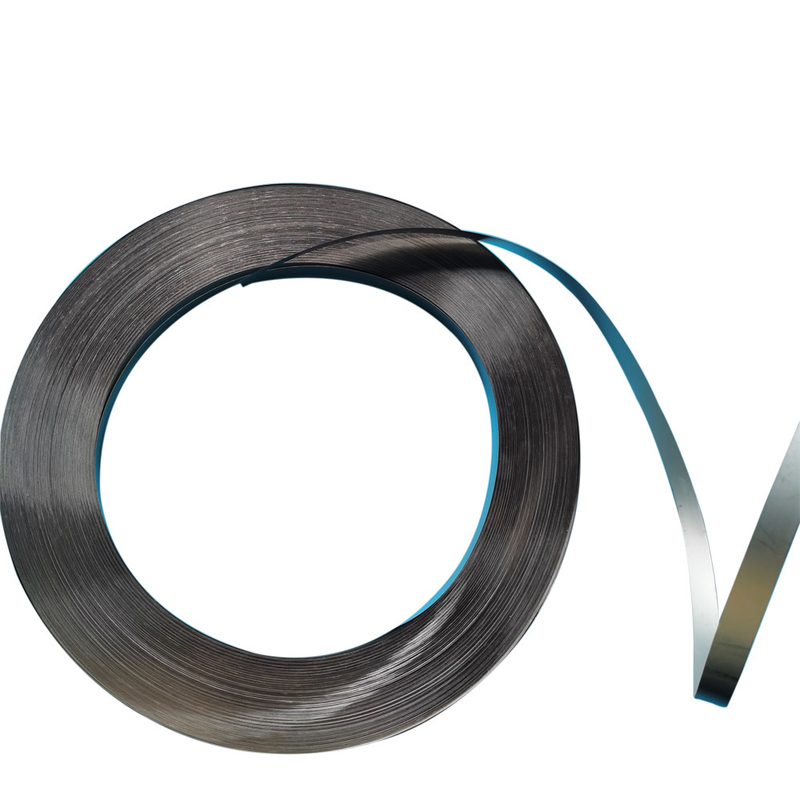

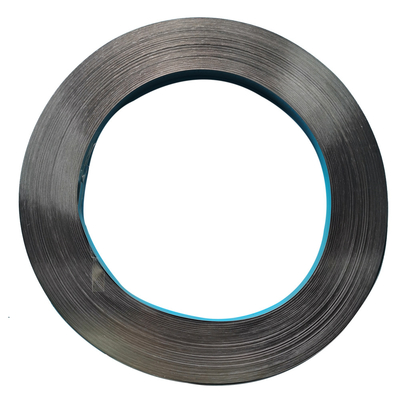

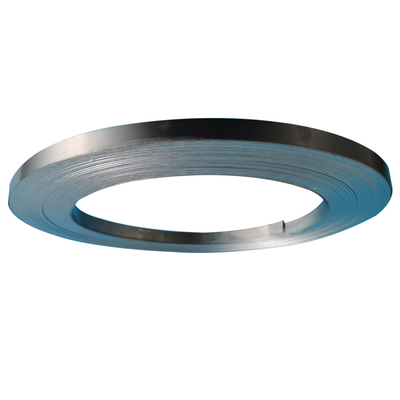

High Quality Cu-ETP TIN Plated Pure Copper Strip
Product brief introduction
It can be used for all kinds of deep drawing and bending force parts, such as pin, rivet, washer, nut, pipe, pressure gauge, screen, radiator parts, etc. It has good mechanical properties, good plastic in thermal state, plastic in cold state, good cutting ability, easy fiber welding , corrosion resistance. It is widely used as an ordinary brass variety.
Physical properties
| Grade | Temper | Hardness(HV) | Tensile strength(Mpa) | Elongation(%) |
|
C1100 C1200 C1220 etc. |
soft | <60 | >205 | ≥40 |
| 1/4H | 55-100 | 217-275 | ≥35 | |
| 1/2H | 75-120 | 245-345 | ≥25 | |
| H | 105-175 | >295 | ≥13 |
Standard Size
| Thickness x Width | Thickness x Width | Thickness x Width | Thickness x Width | Thickness x Width |
| 0.01mm x 100mm | 0.02mm x 200mm | 0.03mm 200mm | 0.04mmx 200mm | 0.05mm x 300mm |
| 0.06mm x 300mm | 0.08mm x 300mm | 0.1mm x 305mm | 0.15mm x 305mm | 0.2mm x 305mm |
| 0.25mm x 305mm | 0.3mm x 600mm | 0.4mm x 600mm | 0.5mm x 1000mm | 0.6mm x 1000mm |
| 0.8mm x 1000mm | 1.0mm x 1000mm | 1.5mm x 1000mm | 2.0mm x 1000mm | 2.5mm x 1000mm |
| 3.0mm x 1000mm |
We can customize any size,please contact us. |
|||
