Product Details:
Payment & Shipping Terms:
|
| Conductor: | NiCr / NiAl | Conductor Dia: | 0.25mmx2 |
|---|---|---|---|
| Insulation Material: | Fiberglass | Jacket Material: | Fiberglass |
| Color: | Conforms To ANSI, IEC, JIS | Standard: | ANSI96.1 Or IEC 584-2 |
| High Light: | Thermocouple Wire Type K Glass Insulation,High Density Thermocouple Wire Type K,0.25mm K Type Thermocouple Cable |
||

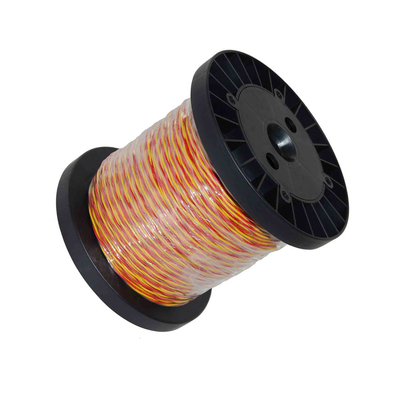

Thermocouple wire type K high density glass insulation
Introduction:
Specification:
Conductors: Solid or stranded thermocouple wire per
Insulation: Braided fiberglass,PVC, PTFE, Silicon
Construction: Parallel conductors
Jacket: PTFE/Fiberglass/PVC
Limits of Error: Conforms to ASTM E230, IEC 584 and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Type: K, E, J, T, N, etc.
Style: solid or stranded, parallel or twisted
Company:
Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.
Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.
Our company aims to be the best-quality alloy producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people’s living level, make a more green earth in the future.
Conductor material:
| Variety | Type |
| NiCr-NiSi | K |
| NiCr-CuNi | E |
| Fe-CuNi | J |
| Cu-CuNi | T |
| NiCrSi-NiSi | N |
| NiCr-AuFe0.07 | NiCr-AuFe0.07 |
Insulating and sheath material:
| insulation | PTFE | PFA | TEF | FEP | PVC | FG | silicone | kapton | Quartz fiber |
| Max temp(°c) | 260 | 260 | 200 | 200 | 108 | 400 | 200 | 400 | 800 |
Normal available condutor size
| Solid type | 0.2mm | 0.3mm | 0.5mm | 0.8mm | 1.0mm | 1.13mm | 1.29mm | 1.37mm |
| Stranded type | 0.2mm*7 | 0.3mm*7 | 0.43mm*7 | 0.52mm*7 | 0.67mm*7 |
Note: We also can make the speical size as per client’s requirement. SWG/AWG also is available
