Product Details:
Payment & Shipping Terms:
|
| Conductor Material: | Silver Copper Wire, NiCr80/20 Wore | Conductor Dia: | 0.1mm To 1.5mm |
|---|---|---|---|
| Color: | Black, White, Blue, Yellow, Red, Purple,orange | Cores: | Single Core Or Multi Core |
| Usage: | Singal Wire | Insulation Material: | PTFE, Rubber, Vitreous Silica, Silica Fiber, Ceramic Fiber |
| High Light: | Type K Thermocouple Extension Cable,Stainless Steel Wire Sheath Thermocouple Cable,ETFE Insulated Heating Wire |
||

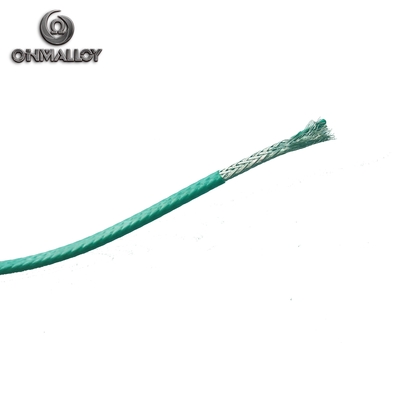

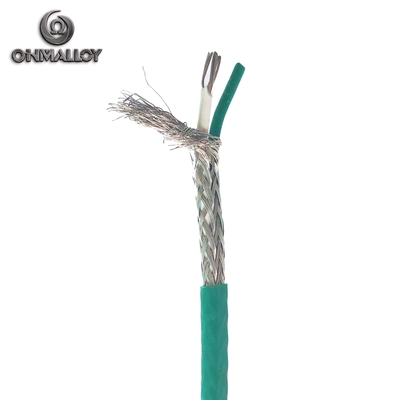

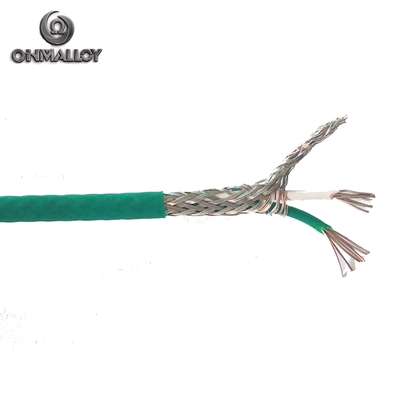

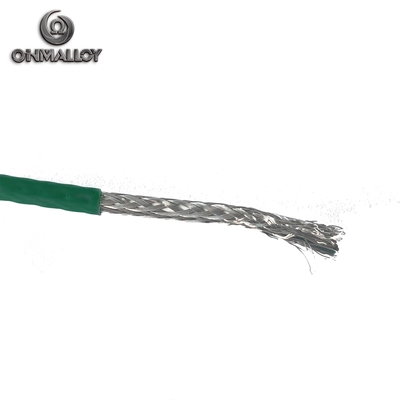

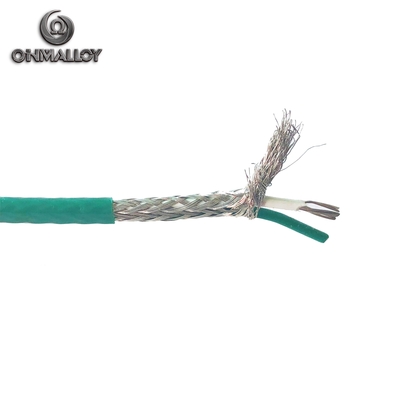

PTFE ETFE Insulated Type K Thermocouple Extension Cable Stainless Steel Wire Sheath
TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.
1. Product Details
1. Chemical Composition
| Material | Chemical composition (%) | ||||
| Ni | Cr | Si | Mn | Al | |
| KP(Chromel) | 90 | 10 | |||
| KN(Alumel) | 95 | 1-2 | 0.5-1.5 | 1-1.5 | |
2. Physical Properties and Mechnical Properties
|
Material |
Density(g/cm3) |
Melting point℃) |
Tensile Strength(Mpa) |
Volume resistivity(μΩ.cm) |
Elongation rate (%) |
| KP(Chromel) | 8.5 | 1427 | >490 | 70.6(20℃) | >10 |
| KN(Alumel) | 8.6 | 1399 | >390 | 29.4(20℃) | >15 |
3. EMF Value Range at Different Temperature
| Material | EMF value Vs Pt(μV) | |||||
| 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | |
| KP(Chromel) | 2816~2896 | 5938~6018 | 9298~9378 | 12729~12821 | 16156~16266 | 19532~19676 |
| KN(Alumel) | 1218~1262 | 2140~2180 | 2849~2893 | 3600~3644 | 4403~4463 | 5271~5331 |
| EMF value Vs Pt(μV) | ||||
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ |
| 22845~22999 | 26064~26246 | 29223~29411 | 32313~32525 | 35336~35548 |
| 6167~6247 | 7080~7160 | 7959~8059 | 8807~8907 |
9617~9737 |
