Product Details:
Payment & Shipping Terms:
|
| Name: | Thermocouple Type K Middle Size Connector Round Chromel Alumel Pin Thermometer Plug ANSI | Connector Type: | Type K |
|---|---|---|---|
| Standard: | ANSI | Pin Style: | Round Chromel Allumel Pin |
| Plug Style: | Male/Female | MOQ: | 50 Pieces |
| Service: | Size/Logo/Package Customized | ||
| High Light: | Customized Thermocouple MINI Plug,K Type Thermocouple MINI Plug,K Type Thermocouple Plug Round Pin |
||

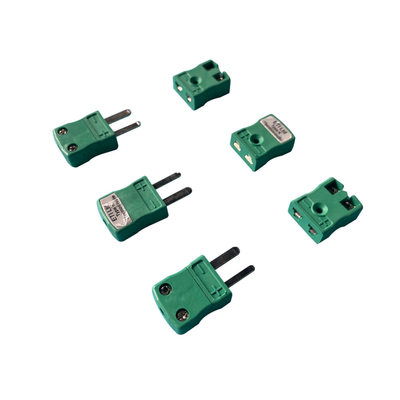

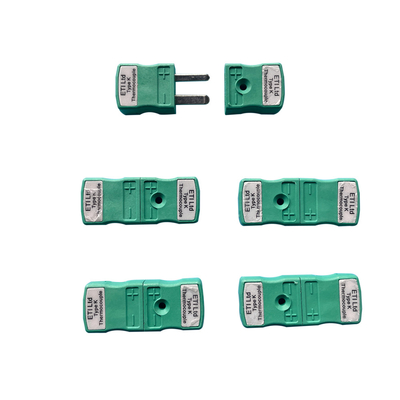

Type K Custmozed Thermocouple MINI Plug
ANSI Code Green Color Type K Thermocouple Plug
Chromel, alumel and constantan contain unique material properties or characteristics that are necessary to ensuring the success of certain applications. However, these particular materials are incredibly difficult to work with, so there are few manufactures who have the expertise or ability to manufacture parts using these materials.
| Type | Color | Conductor material |
| K | Yellow(ANSI) or green (IEC) | NiCr-NiSi |
| N | Green | NiCrSi-NiSiMg |
| E | Purple | NiCr-CuNi |
| J | Black | Fe-CuNi |
| T | Blue | Cu-CuNi |
| R/S | White or orange | Cu-CuNi |
| PT100 | White | Cu/Ni |
| Insulation Material |
Ordinary mini connector is ABS whose max temp is 120℃; Standard connector is nylon whose max temp is 220℃. |
| Screw Material | Nickel-plated iron |
| Nut material | Copper |
| Type | K,J,T,N,E,R,PT100,etc. |
| Usage |
Connecting with thermocouple and transfer data to instrument |
