Product Details:
Payment & Shipping Terms:
|
| Model Number: | C17510 | Type: | Rod |
|---|---|---|---|
| Grade: | CuNi2Be | Application: | Connectors |
| MOQ: | 30kg | Density: | 8.25 |
| High Light: | C17510 Copper Based Alloys,CuNi2Be Copper Based Alloys,CuNi2Be copper alloy rod |
||

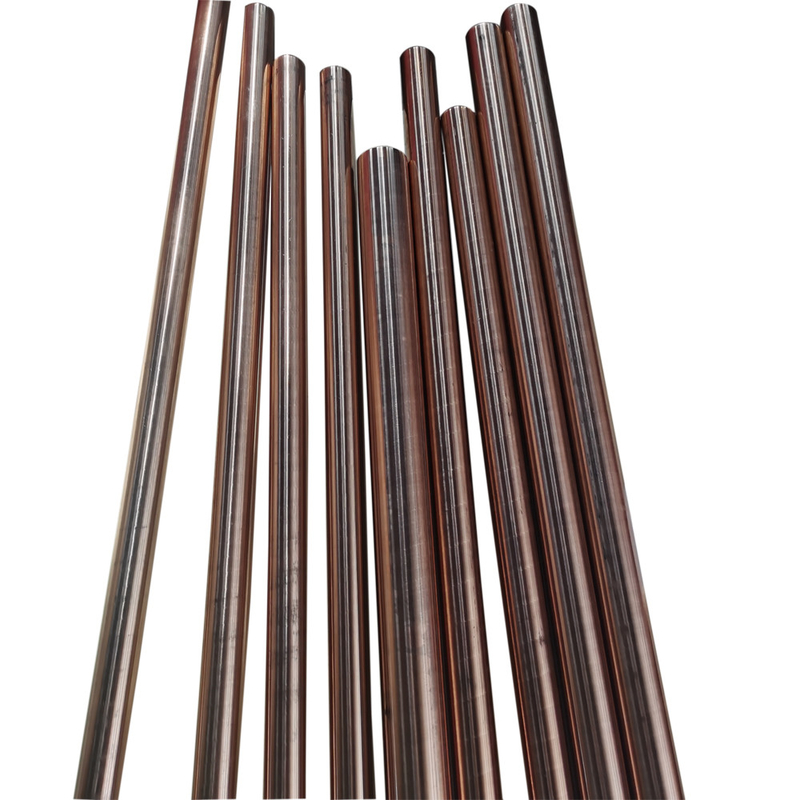

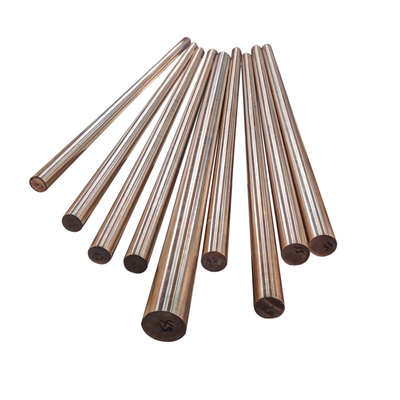

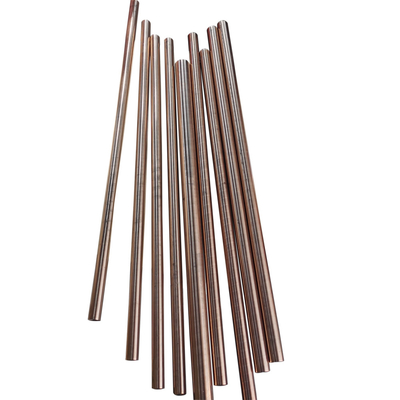

High quality C17510 CuNi2Be Copper Rod
Primarily utilized in applications that require high thermal or electric conductivity.The alloy offers good strength and hardness characteristics coupled with conductivity in the range of 45-60 percent of copper with ultimate tensile and hardness properties approaching 140 ksi and RB 100 respectively.
Physical Properties
The following table shows the physical properties of UNS C17510 beryllium copper alloys.
| Properties | Metric | Imperial |
| Density | 8.77 g/cm3 | 0.317 lb/in3 |
| Elements | Content (%) |
| Copper, Cu | 99.5%min |
| Beryllium, Be | 0.20-0.60% |
| Nickel, Ni | 1.40-2.20% |
C17510 features:
1. High electrical and thermal conductivity
2. Highest yield to elongation ratio
3. Excellent machinability
4. Low friction properties
5. Excellent seawater corrosion resistance
6. Non magnetic
7. Multiple tempers
8. Able to anneal and re-age
Application
| Beryllium Copper Series Alloys Chemical Compostion | |||||||||
| Alloy No. | UNS. & DIN. | Be | Co | Ni | Co+Ni | Co+Ni+Fe | Pb | Others | Cu |
| 25 | C17200 | 1.80-2.00 | - | - | 0.20 Min. | 0.60 Max. | 0.02 Max. | 0.05 Max. | Rem. |
| M25 | C17300 | 1.80-2.00 | - | - | 0.20 Min. | 0.60 Max. | 0.20-0.60 | 0.05 Max. | Rem. |
| 10 | C17500 | 0.40-0.70 | 2.40-2.70 | - | - | - | - | 0.05 Max. | Rem. |
| 3 | C17510 | 0.20-0.60 | - | 1.40-2.20 | - | - | - | 0.05 Max. | Rem. |
| CCNB | CuCo1Ni1Be | 0.40-0.70 | 0.80-1.30 | 0.80-1.30 | - | - | - | 0.05 Max. | Rem. |
ELECTRICAL: Instrument Parts,Connectors,Heavy Duty,Relay Parts,Conductors, Switch Parts, Fuse Clips
FASTENERS: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
INDUSTRIAL: High Flux Electromagnets, Thermal Transfer Plates, Welding Equipment, Springs
