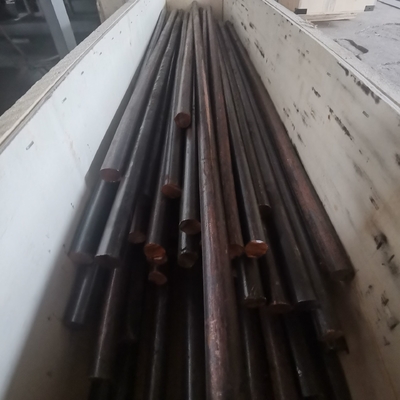

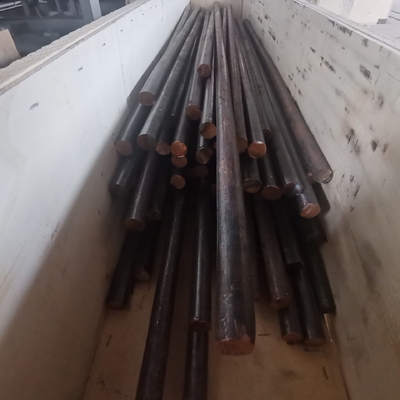

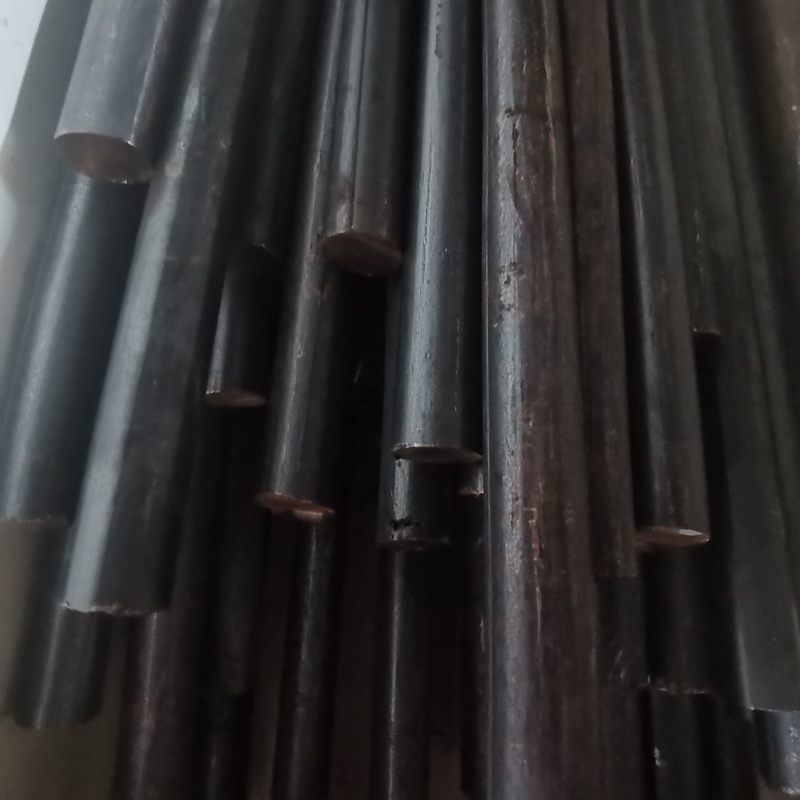

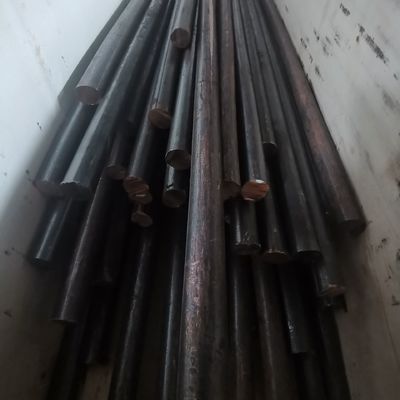

Alloy 11 Wire Cuni0.6 Thermocouple Cable SNC RNC Thermocouple Extension Rod

Alloy 11 Wire Cuni0.6 Thermocouple Cable SNC RNC Thermocouple Extension Rod
Alloy 11 Wire Cuni0.6 Thermocouple Cable SNC RNC Thermocouple Extension Rod
video play

Large Image :  Alloy 11 Wire Cuni0.6 Thermocouple Cable SNC RNC Thermocouple Extension Rod Get Best Price

Product Details:
Place of Origin: China(Shanghai)
Brand Name: OHMALLOY
Certification: ISO9001-2008
Model Number: SNC/RNX
Payment & Shipping Terms:
Minimum Order Quantity: 10KG
Price: 20-50USD/KG
Packaging Details: Roll/Spool
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, , MoneyGram
Supply Ability: 50 Tons per month
Detailed Product Description
Material: SNC/RNX Density(g/cm3): 8.9
Tensile Strength(Mpa): >390 Elongation Rate (%): >25
High Light:

Alloy 11 wire Thermocouple Cable

,

SNC RNC Thermocouple Cable

,

Cuni0.6 thermocouple extension rod

Ni 0.6% Cu 99.4% Alloy 11 wire (Cuni0.6) for S/R thermocouple extension rod SNC (RNC)



SNC (RNC) is regarded as negative leg for extension grade type S,R thermocouple cable.



1. Chemical Composition



Material Chemical composition (%)
Ni Cr Cu Mn Si
RNC(SNC) 0.6   Bal



2. Physical properties and Mechnical properties







Material





Density(g/cm3)



Melting point(℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

RNC(SNC) 8.9 1400 >390 2.8(20℃) >25



3. EMF Value range at different temperature



Material EMF value Vs Pt(μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
RNC(SNC) -108~-148 -376~-1416



EMF value Vs Pt(μV)
700℃ 800℃ 900℃ 1000℃ 1100℃




Alloy 11 Wire Cuni0.6 Thermocouple Cable SNC RNC Thermocouple Extension Rod 0
