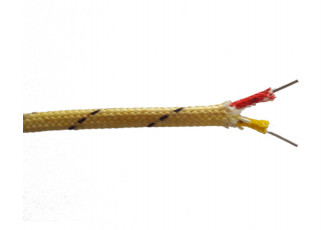

EX-HB-HB-0.3 Type E Thermocouple Cable 400C Fiberglass 100M/Roll

Large Image : EX-HB-HB-0.3 Type E Thermocouple Cable 400C Fiberglass 100M/Roll Get Best Price

Product Details:

Place of Origin:	China(Shanghai)
Brand Name:	OHMALLOY
Certification:	ISO9001-2008
Model Number:	EX-HB-HB-0.3

Payment & Shipping Terms:

Minimum Order Quantity:	100meters
Price:	negotiable
Packaging Details:	100m/spool, 305m/spool, 1000ft/spool, 1000m/spool
Delivery Time:	10 days
Payment Terms:	L/C, T/T,
Supply Ability:	500000meters per month

Contact Now

Detailed Product Description

Material:

Chromel, NiSi

Insulation:

Fiberglass

Diameter:

16AWG, 18 AWG, 20 AWG, 24 AWG

Color:

ANSI Code, IEC Code, GB/T Standard

Highlight:

Type E Thermocouple Cable 400C

100M/Roll Type E Thermocouple Cable

Type E Fiberglass Cable

EX-HB-HB-0.3 Type E cable 400C Fiberglass 100M/roll

Specifications

Product name		Issuing Date		Drawing no.		Version
Type E cable						A/1
Item	EX-HB-HB-0.3	Size	0.3mm	Max temp	400℃	Voltage
Drawing or picture
Spec			Unit		Standard requirement
Conductor	Conductor structure		N/mm		Solid type
	Conductor material		Positive leg (+)		Chromel
			Negative leg(-)		Alumel
	OD of conductor		mm		0.3mm
Pairs
WRAPING			——		-----
Insulation	Material		——		400℃ Fiberglass
	Insulation thickness		mm		0.3
	Min thickness		mm		0.3
	OD of each core		mm		0.9
	Color		Positive leg(+)		Yellow
			Negative leg(-)		Red
Shielding	Material		——		/
	Covering density		%		/
Jacket	Material		——		400℃ Fiberglass
	Thickness		——		0.35mm
	OD of whole cable		——		1.6mm*2.5mm
	Color of jacket		——		/
Electrical	Voltage test		V/min		/
Drain wire	Material				/
	Size				/
