| Conductor: | +Chromel, -Alumel | Conductor Dia: | 0.5mm 0.8mm |
|---|---|---|---|
| Insulation Material: | Fiberglass/pvc/PTFE | Jacket Material: | Fiberglass/pvc/PTFE |
| Color: | Yellow/Red | Package: | 500m/roll |
| Standard: | ANSI96.1/IEC | ||
| High Light: | Type K Alumel Chromel Wire,24AWG Type K Cable Wire,0.8mm K Type Thermocouple Cable |
||
| Product name | Issuing Date | Drawing no. | Version | ||||

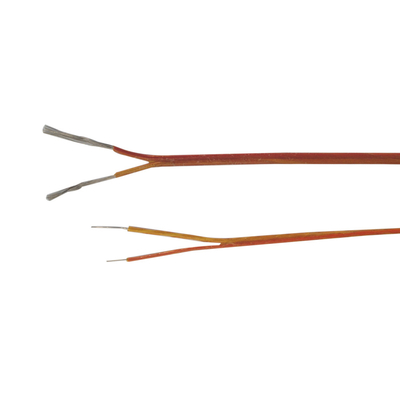

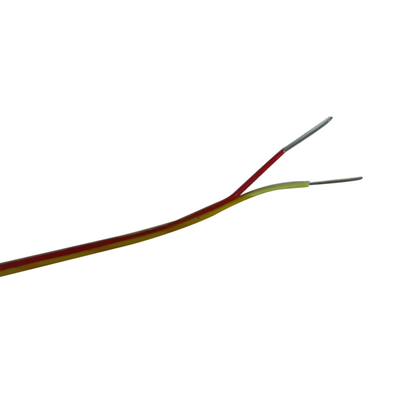

| Type K cable | A/1 | ||||||
| Item | KX-HF-KP-0.8 | Size | 0.8mm | Max temp | 300℃ | Voltage | |
| Drawing or picture |
|
||||||
| Spec | Unit | Standard requirement | |||||
| Conductor | Conductor structure | N/mm | Solid type | ||||
| Conductor material | Positive leg (+) | Chromel | |||||
| Negative leg(-) | Alumel | ||||||
| OD of conductor | mm | 0.8mm | |||||
| Pairs | |||||||
| WRAPING | —— | ----- | |||||
| Insulation | Material | —— | PTFE or PFA | ||||
| Insulation thickness | mm | 0.3 | |||||
| Min thickness | mm | 0.25 | |||||
| OD of each core | mm | 1.4 | |||||
| Color | Positive leg(+) | yellow | |||||
| Negative leg(-) | red | ||||||
| Shielding | Material | —— | / | ||||
| Covering density | % | / | |||||

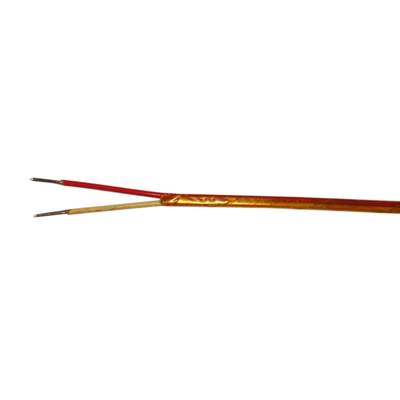

| Jacket | Material | —— | Kapton | ||||
| Thickness | —— | ||||||
| OD of whole cable | —— | 1.6mmX3.2 | |||||
| Color of jacket | —— | / | |||||
| Electrical | Voltage test | V/min | / | ||||
| Drain wire | Material | / | |||||
| Size | / | ||||||
Type K Thermocouple Wire
Type K( CHROMEL vs ALUMEL) is used in oxidizing, insert or dry reducing atmospheres.Exposure to Vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres.Reliable and accurate at high temperatures.
1. Style:Extension Wire
2. Thermocouple extension wire
Thermocouple wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.
Thermocouple variety and index
Thermocouple Variety and Index |
||
Variety |
Type |
Measurement Range(°C) |
NiCr-NiSi |
K |
-200-1300 |
NiCr-CuNi |
E |
-200-900 |
Fe-CuNi |
J |
-40-750 |
Cu-CuNi |
T |
-200-350 |
NiCrSi-NiSi |
N |
-200-1300 |
NiCr-AuFe0.07 |
NiCr-AuFe0.07 |
-270-0 |
Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.
Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.
Our company aims to be the best-quality alloy producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people’s living level, make a more green earth in the future
