Product Details:
Payment & Shipping Terms:
|
| Conductor: | +Chromel, -Alumel | Conductor Dia: | 20AWG, 16AWG |
|---|---|---|---|
| Insulation Material: | Fiberglass Insulated | Jacket Material: | Fiberglass Insulated |

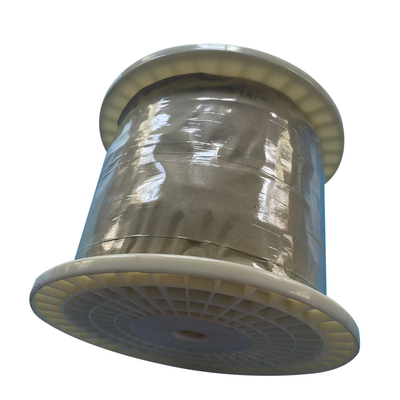

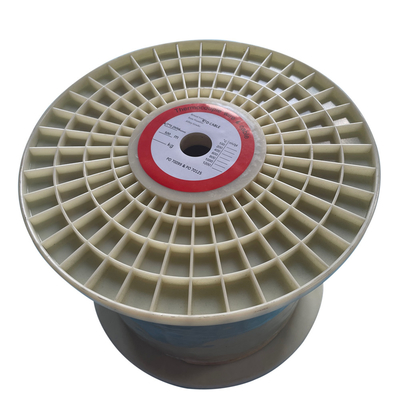

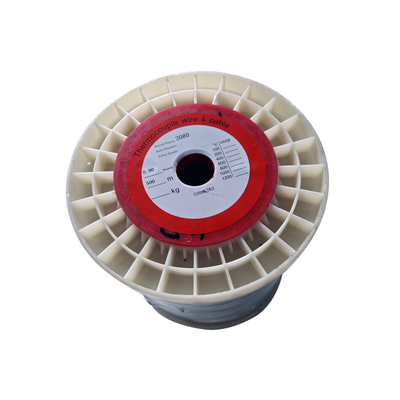

| Color: | White | Package: | 1000ft/roll |
| Standard: | ANSI96.1 Or IEC 584-2 | ||
| High Light: | NiCr80 Electrical Heating Wire,Fiberglass Insulated Wire 1.1mm,Fiberglass Insulated Electrical Heating Wire |
||

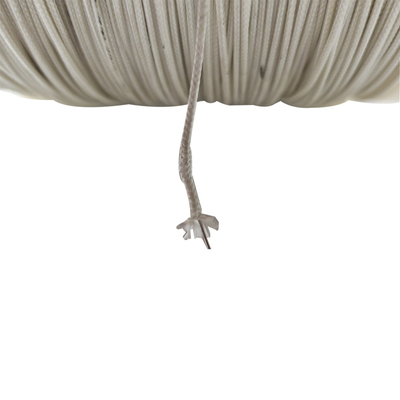

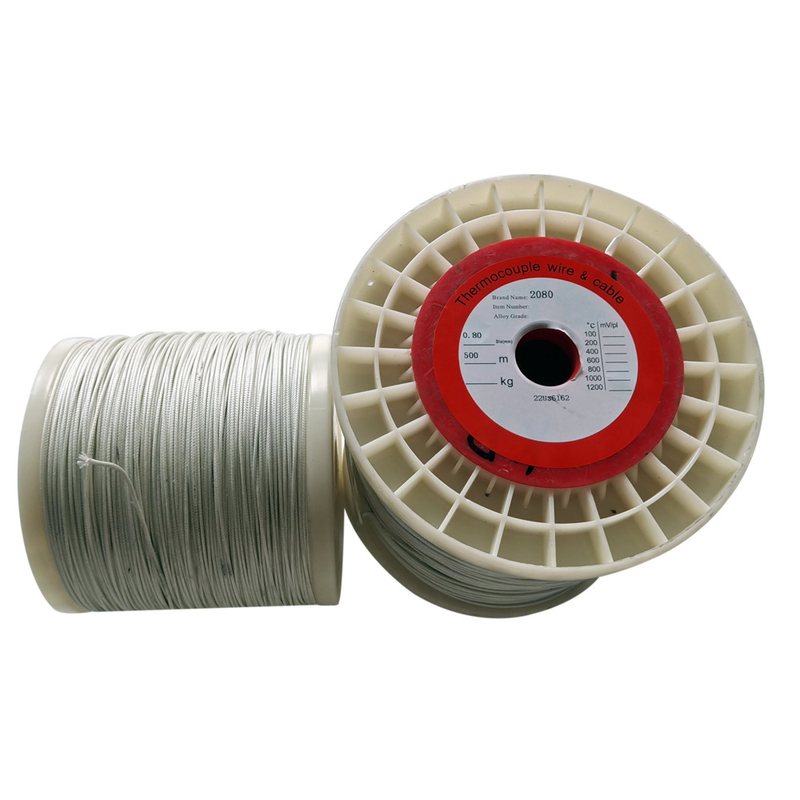

Fiberglass Insulated NiCr80/20 electrical heating wire 0.5mm OD of cable 1.1mm
Product brief introduction
Kapton Fiberglass Insulated NiCr 0Cr20Ni80 Nickel alloy wire for High Temperature Heating
Ohmalloy not only produce the bare resistance wire. It can also provide the resistance wire with insulation as we have 30 years in producing the thermocouple extension cable.
The insulated resistance wire are widely used for standard resistor, automobile parts, room heating.....
Ohmalloy provide the following insulation material:
PVC Insulated resistance wire
PTFE/FEP Insulated resistance wire
Fiberglass Insulated resistance wire
Enameled resistance wire
Silicon rubber Insulated resistance wire.
Type of bare alloy wire as follows:
| Copper-nickel alloy wire | Constantan Wire,CuNi1~CuNi44 |
| Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr AA |
| Fe-Cr-Al Alloy wire |
Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin |
| Any copper alloy and nickel alloy is available | |
| Insulation Material | Fiberglass(400℃/600℃/800℃/1000℃)/ Silicone Rubber/ PVC/FEP(200℃)/PFA(260℃)/PTFE |
| Color | Customized color |
| Bending /Warping Test | bending test>5000 times, no deformation wrapping test>25000,no deformation |
| Max Temperature | 200℃/260℃/400℃/600℃/800℃/1000℃/1200℃ |
| Rated Voltage | 300V/500V/1000V/2000V/3000V |
| Insulation Resistance | Up to 5500ohm/meter (Customized) |
| Power /Meter | 0-3000W(Customized) |
| Application |
Electric blanket, electric heating cushion, pet mat, jade mattress, electric heating belt, electric heating warm clothes, electric heating shoes, electric heat massage chair, air conditioner, refrigerator defrost, electric cooker, electric towel rack, pipe tank body antifreeze, car window heating, medical beauty equipment and other internal use lines |
