| Material: | Chrome Nickel2080 | Resistivity(μΩ.m): | 1.09 |
|---|---|---|---|
| Tensile Strength (≥ MPa):: | 810 | Max Working Temperature (℃):: | 1200 |
| Annealing Treatment:: | Hydrogen Annealing | Application: | Ignition Cable Material |
| Size: | 0.574mmx*1+0.523mm*18 | ||
| High Light: | Stranded Nickel Wire Rope,Cr20Ni80 Stranded Wire,Ceramic Pad Heater Nickel Wire Rope |
||

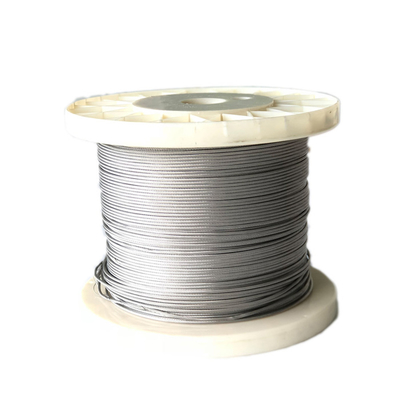

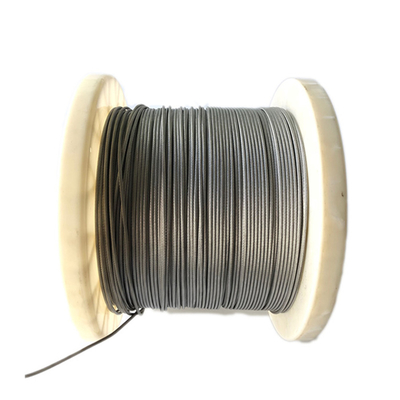

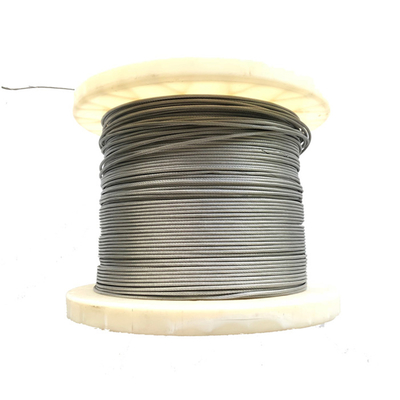

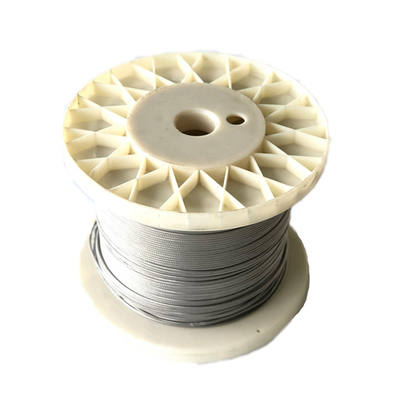

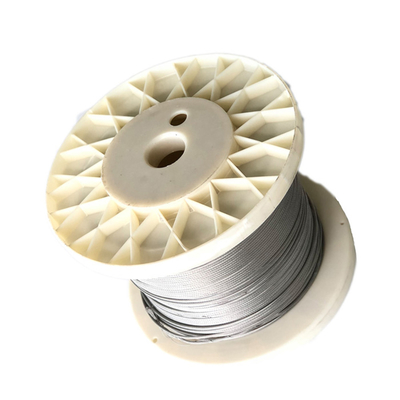

Nickel Wire Rope Manufacture PWHT Cr20Ni80 Stranded wire 2.76mm Ceramic Pad Heater Applicable
OhmAlloy109 (Ni80Cr20) is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for OhmAlloy109 (Ni80Cr20) are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
1.Product Details
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 420 | 810 | 30 |
| Density (g/cm3) | 8.4 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.09 |
| Conductivity coefficient at 20℃ (WmK) | 15 |
| 4) Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 18 |
| 5) Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.46 |
| Melting point (℃) | 1400 |
| Max continuous operating temperature in air (℃) | 1200 |
| Magnetic properties | non-magnetic |
| 6) Temperature Factors Of Electrical Resistivity | |||||
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 600℃ |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.018 |
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1300℃ |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | - |
7) Style of supply
| Alloys Name | Type | Dimension | |
| OhmAlloy109W | Wire | D=0.03mm~8mm | |
| OhmAlloy109R | Ribbon | W=0.4~40 | T=0.03~2.9mm |
| OhmAlloy109S | Strip | W=8~250mm | T=0.1~3.0 |
| OhmAlloy109F | Foil | W=6~120mm | T=0.003~0.1 |
| OhmAlloy109B | Bar | Dia=8~100mm | L=50~1000 |
2.Production Procedure
3.Application

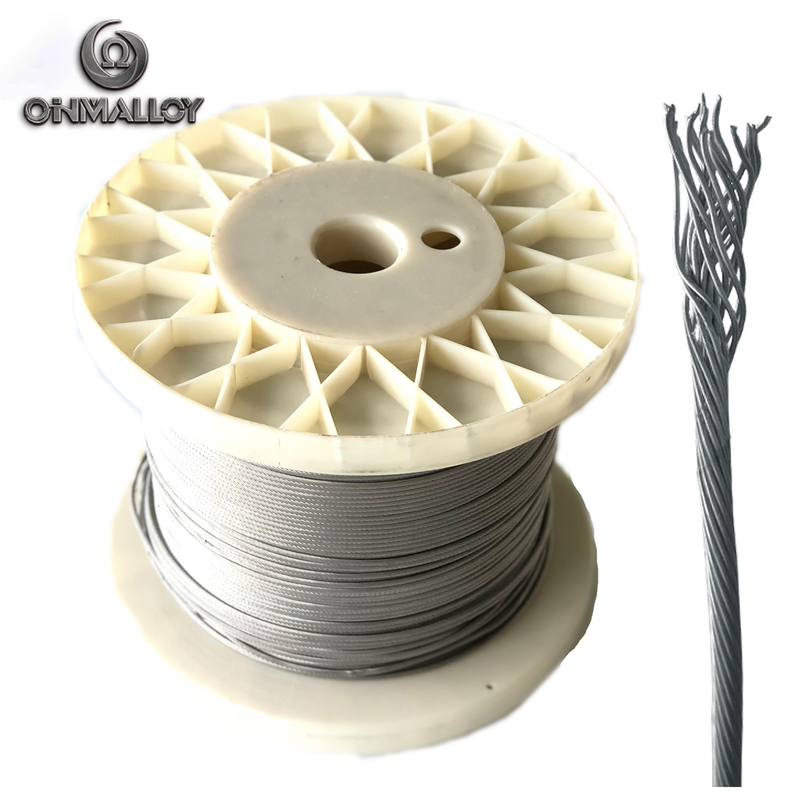

A heating element repair kit comes with 80/20 (19 multi-strand), in addition, Heater Core Wire is Consists of 80/20 nickel chrome alloy (19 multi-strand) on 500m/1640' roll.
Nichrome Stranded Wire is not always 19 multi strand,we can also produce it upon your request.
Diameter of one strands:0.05mm-8.0mm.Our most common dimension is 0.523mm*18+0.574mm*1,it means the outside is 3mm,but the other conductor sizes are available upon your request.
4.Products and Services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
