| Name: | Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire | Wire Type: | Nickel 212 Ni98Mn2 |
|---|---|---|---|
| Wire Strands: | 19 Strands Or 38 Strands | Rope Handling: | Bright，Annealed |
| Package: | 500Meter/Roll | Application: | PWHT Ceramic Heating Pad Wire |
| Warrenty: | 3 Years | ||
| High Light: | 19 Strands Nickel Wire Rope,Ceramic Spreader Mats Accessory Wire Rope |
||

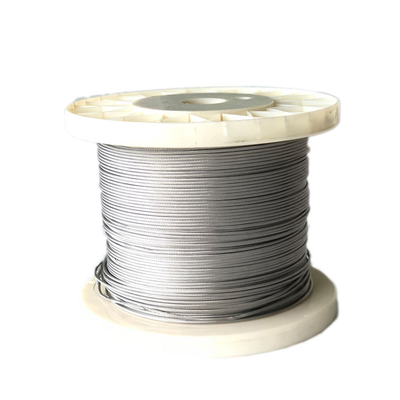

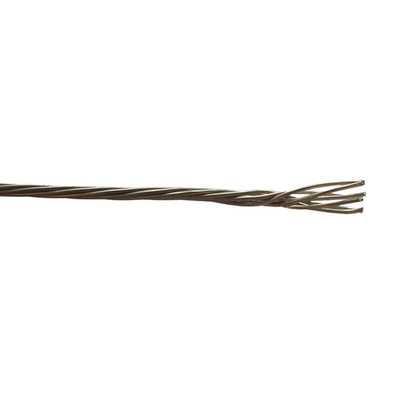

19 Strands Nickel 212 NiMn2 Wire Rope for Ceramic Spreader Mats Accessory
Product Name: 19 Strand Ni212 wire
Specification: 18*0.61mm+1*0.71mm
Outer Diameter: 2.9mm(±0.2mm)
Quantity: 1500 meter
Resistance: 0.021 ohm/meter (±5%)
Conductor Material Inspection: Ni212 Material Batch NO.: N728D09
| Chemical Composition(﹪) | ||||||||
| Elements | C | Mn | Si | S | Ni+Co | Cu | Mg | Fe |
| Ni212 | <0.1 | 1.5-2.5 | <0.2 | <0.006 | >97 | <0.2 | <0.2 | <0.25 |
Wire Rope Type and Standard Size Reference:
| Alloy Wire | No. of Strands | Nominal OD (mm) | King Wire Size (mm) | Resistance (Ω/m) | Length (m/kg) |
| 0Cr20Ni80 | 19*0.523 | 2.7 | 0.574 | 0.285 | 29 |
| 0Cr15Ni60 | 19*0.523 | 2.76 | 0.574 | 0.29 | 30 |
| 0Cr20Ni80 | 37*0.385 | 2.76 | 0.45 | 0.279 | 28 |
| Pure Nickel | 19*0.574 | 2.87 | 0.574 | 0.0198 | 21 |
| Nickel 212 | 19*0.574 | 2.87 | 0.71 | 0.0234 | 22 |
Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire Application
