| Resistivity: | 1.12μΩ.m | Shape: | Wire |
|---|---|---|---|
| Surface: | Bright | Application: | Furnaces |
| Elongation: | 35% | Enamelled: | Available |
| Tensile Strength: | 730 | ||
| High Light: | Ni80Cr20 Nichrome Wire,Heating System Nichrome Wire,Ni80Cr20 Heating Wire |
||

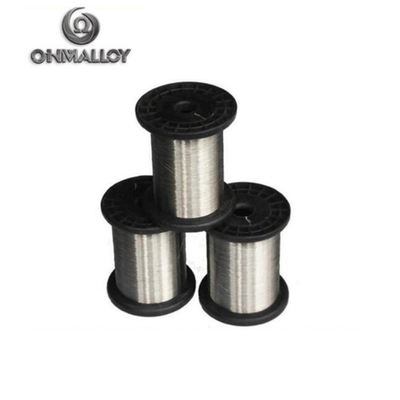

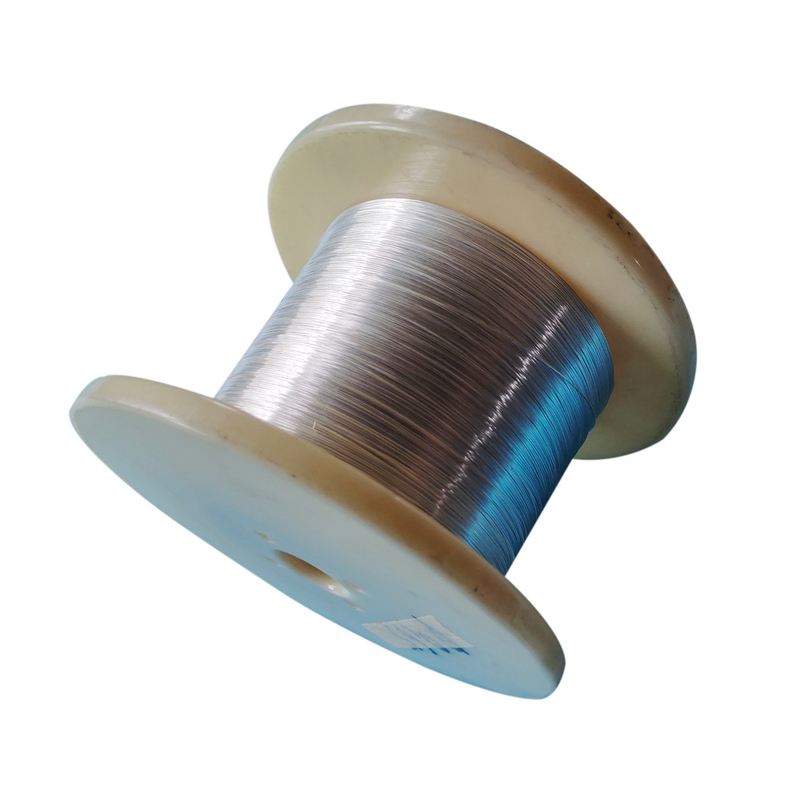

Ni80Cr20 NCHW-2 Nichrome Wire For Heating System
OhmAlloy109 (Ni80Cr20) is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for OhmAlloy109 (Ni80Cr20) are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
1.Product Details
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 420 | 810 | 30 |
| Density (g/cm3) | 8.4 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.09 |
| Conductivity coefficient at 20℃ (WmK) | 15 |
| 4) Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 18 |
| 5) Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 0.46 |
| Melting point (℃) | 1400 |
| Max continuous operating temperature in air (℃) | 1200 |
| Magnetic properties | non-magnetic |
| 6) Temperature Factors Of Electrical Resistivity | |||||
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 600℃ |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.018 |
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1300℃ |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | - |
7) Style of supply
| Alloys Name | Type | Dimension | |
| OhmAlloy109W | Wire | D=0.03mm~8mm | |
| OhmAlloy109R | Ribbon | W=0.4~40 | T=0.03~2.9mm |
| OhmAlloy109S | Strip | W=8~250mm | T=0.1~3.0 |
| OhmAlloy109F | Foil | W=6~120mm | T=0.003~0.1 |
| OhmAlloy109B | Bar | Dia=8~100mm | L=50~1000 |
2.Production Procedure
3.Customer Representatives
4.Products and Services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
5.Question and Answer
Q1:How can I contact with your company?
A1:We have multiple communication channels : Tel/Whatsapp/Wechat:+86-15826530281 QQ:3199874404(SPARROW)
Q2:Do you provide free samples?
A2:Yes,we can provide free samples for your testing,but buyer should bear the shipping costs.
Q3:What is your payment terms?
A3:30% in advance,balance after receiving the copy of B/L. T/T,L/C,,Paypal is OK.
Q4:What is your lead time?
A4:On normal condition,the lead time is 7 days after the payment. Special order or quantity is subject to the negotiation.
