Inconel 718 Rod Mo3(Germany)NA 51 Forging Rod WERKSTOFF Nr 2.4668

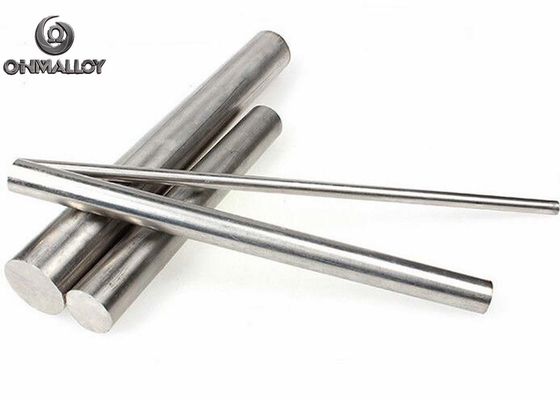

Large Image : Inconel 718 Rod Mo3(Germany)NA 51 Forging Rod WERKSTOFF Nr 2.4668 Get Best Price

Product Details:

Place of Origin:	China(Shanghai)
Brand Name:	OHMALLOY
Certification:	ISO ROHS
Model Number:	718

Payment & Shipping Terms:

Minimum Order Quantity:	20kg
Price:	negotiable
Packaging Details:	IN Wooden box
Delivery Time:	7-20days after your deposit received
Payment Terms:	, L/C, T/T
Supply Ability:	20000T/Year

Contact Now

Detailed Product Description

UNS::	NO7718	Surface:	Bright Or Oxidation
ISO:	NiCr19Nb5Mo3(ISO)	Power Or Not:	Not
Type:	Ni-Cr-Fe-Mo-Nb Alloy	Craft:	Hot Forging
Shape:	Rod,
Highlight:	Mo3 Inconel 718 rod , Germany Inconel 718 rod , Inconel 718 rod WERKSTOFF Nr 2.4668

Product Description

Inconel 718

Alloy	%	Ni	Cr	Fe	Mo	Nb	Co	C	Mn	Si	S	Cu	Al	Ti
718	Min.	50	17	balance	2.8	4.75							0.2	0.7
718	Max.	55	21	balance	3.3	5.5	1	0.08	0.35	0.35	0.01	0.3	0.8	1.15

Inconel 718 Physical properties

Density	8.2 g/cm³
Melting point	1260-1340 ºC

Inconel 718 Alloy minimum mechanical properties in the roomtemperature

Alloy	Tensile strength Rm N/mm²	Yield strength R P0. 2N/mm²	Elongation A 5 %	Brinell hardness HB
Solution treatment	965	550	30	≤363

718 Characteristic as below:1.workability
2.High tensile strength,endurance strength,creep strength and rupture strength at 700ºC.
3.High inoxidability at1000ºC. 4.Steady mechanical performance in the low temperature.
5.Good welding performance.

Inconel 718 Metallurgical structure
718alloy is Austenitic structure, precipitation hardening generate "γ" made it excellent mechanical performance. G rain boundary generate "δ" made it the best plasticity in the heat treatment.

Inconel 718 Corrosion resistance
718 alloy with extremely resistance to stress corrosion cracking and pitting ability in high temperature or low temperature environments, especially the inoxidability in the high temperature.

Inconel 718 Application field:The elevated temperature strength, excellent corrosion resistance and workability at 700ºC properties made it use in a wide range of high requirement environments. 1.Steam turbine 2.Liquid-fuel rocket 3.Cryogenic engineering
4.Acid environment
5.Nuclear engineering
